01

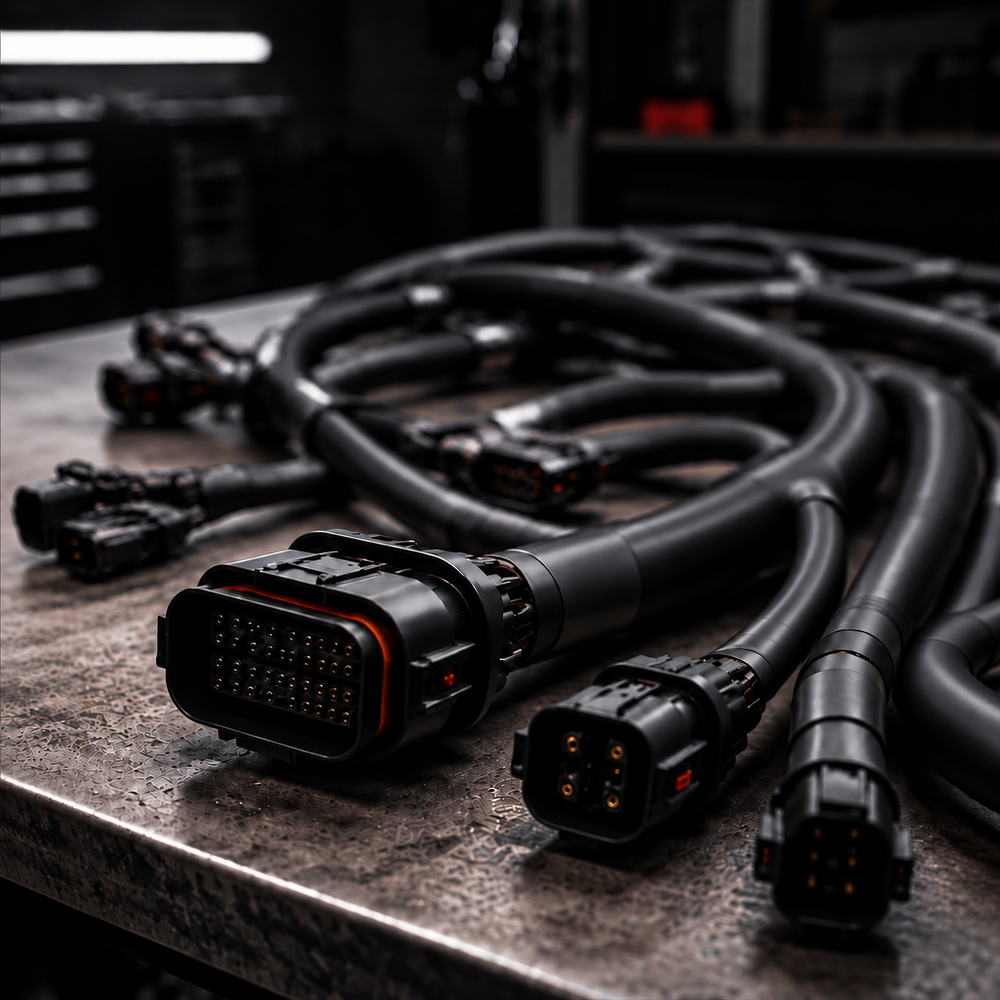

COMPLETE HARNESSES
BUILT FROM A CLEAN SHEET.
Purpose-built vehicle harnesses designed around the electronics, packaging, service access and operating environment of the car.

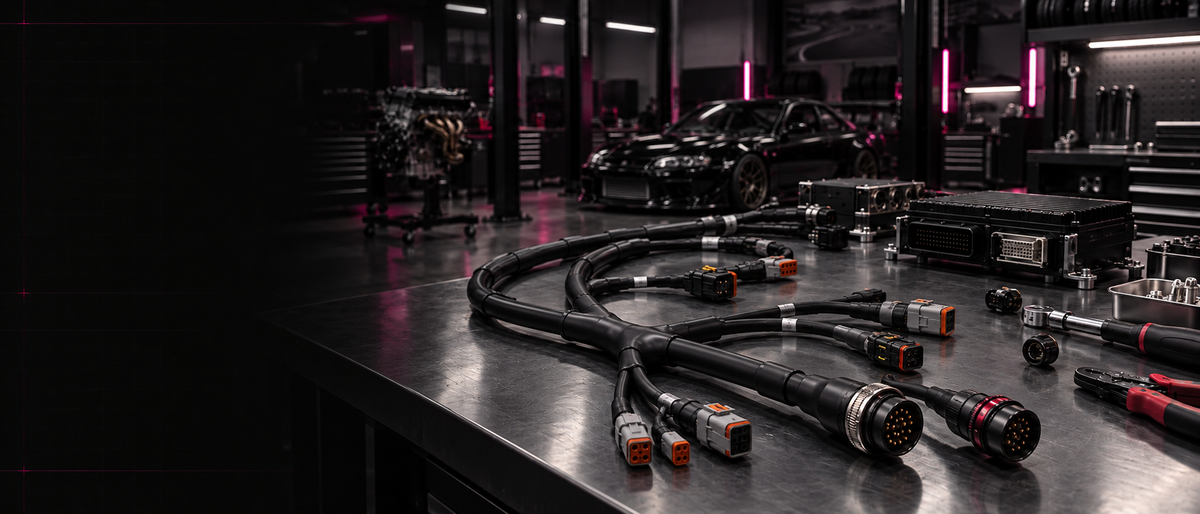

SERVICES / MOTORSPORT WIRING
WIRING THAT WORKS.
Purpose-built electrical systems for competition and performance cars, designed around reliability, serviceability and the demands of the vehicle.
PURPOSE BUILT
BUILT AROUND THE CAR.
A motorsport harness should be easy to understand, easy to service and built for the environment it lives in. Dorifab wiring is designed around the vehicle, its electronics, packaging and future service requirements.
WHAT WE DO
COMPLETE VEHICLE SYSTEMS.
From a fresh competition harness to integrating new electronics into an existing build, the scope can be tailored to what the car actually needs.
01
02

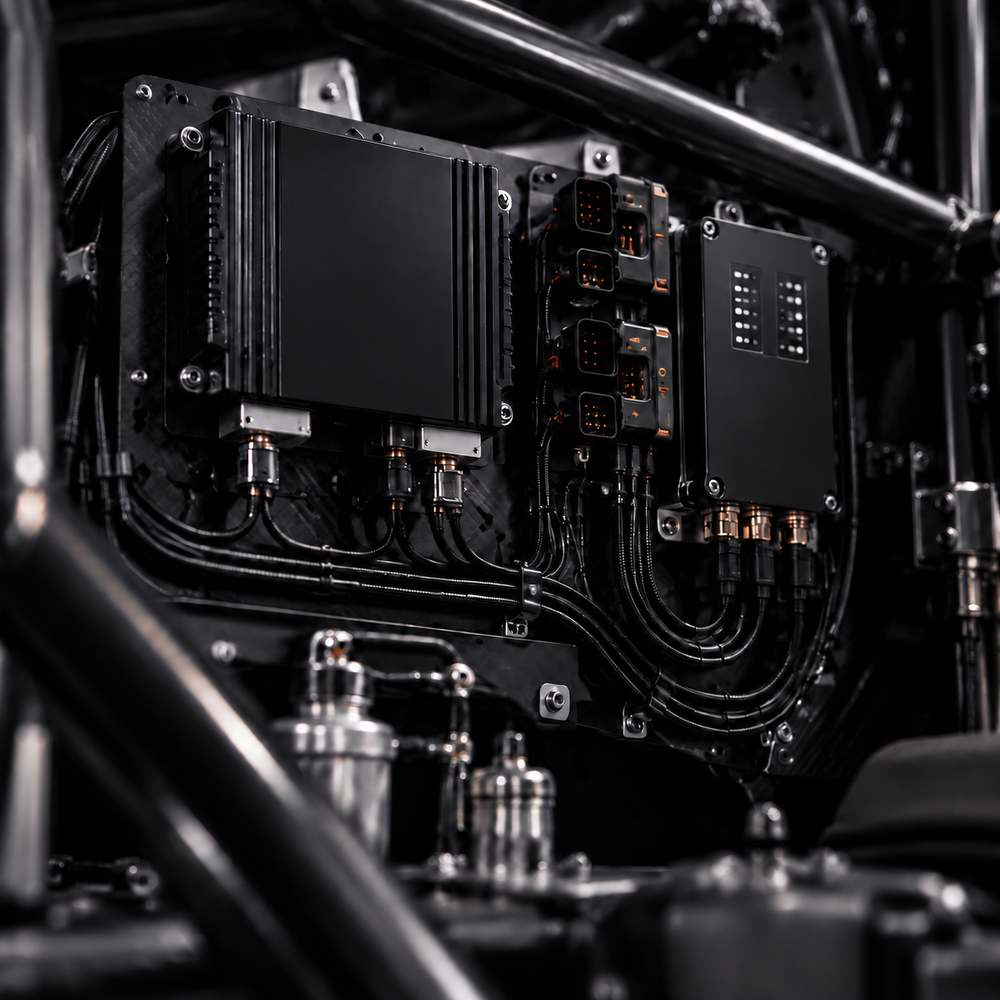

ECU & PDM INTEGRATION
THE SYSTEM HAS TO WORK TOGETHER.
Integration of ECU, PDM and supporting electronics with attention to power distribution, interfaces, sensor strategy and serviceability.
03

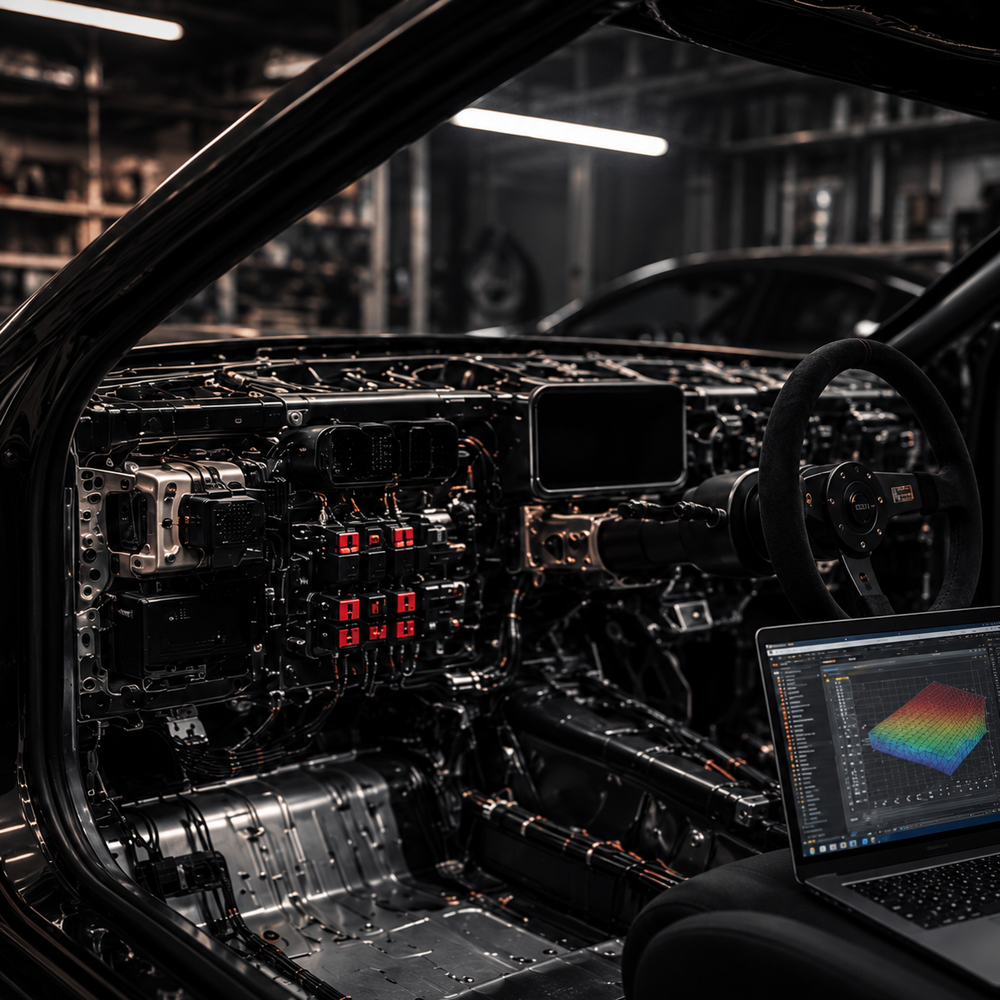

SYSTEM UPGRADES
IMPROVE WHAT IS ALREADY THERE.
Targeted wiring and electronics work for existing builds where a complete new harness is not required.

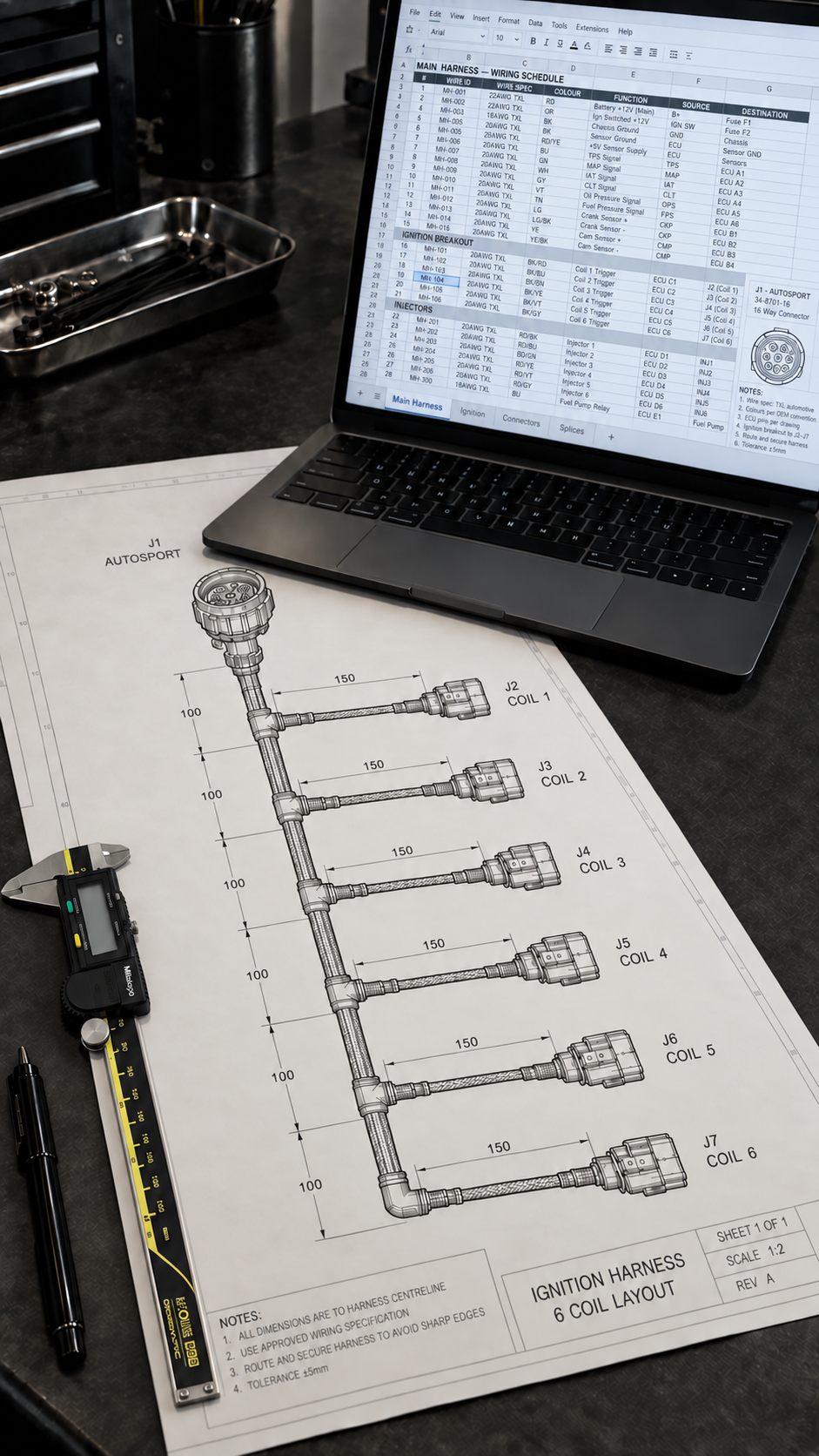

SYSTEM APPROACH
DESIGNED BEFORE IT'S BUILT.
The harness is one part of the vehicle system. Packaging, interfaces, power distribution, sensor strategy and service access all need to work together.
01
DEFINE THE SYSTEM
Map the electronics, loads, sensors, switches, interfaces and functions the vehicle actually requires.
02
PACKAGE IT PROPERLY
Plan routing, connector locations, service loops and access around the real packaging constraints of the car.
03
BUILD FOR SERVICE
Keep the finished system understandable and maintainable so future diagnosis or component changes do not become a nightmare.
04
INTEGRATE & CHECK
Bring the systems together, verify the interfaces and make sure the installation matches the intended vehicle function.
VEHICLE SYSTEM / DETAIL
MATERIALS / HARDWARE
THE RIGHT PARTS IN THE RIGHT PLACES.
Material and connector choices are made around current load, environment, packaging, serviceability and the level of the build.
TEFZEL WIRE
Lightweight, durable wire suited to motorsport harness construction and demanding vehicle environments.
AUTOSPORT CONNECTORS
Compact motorsport connector solutions used where packaging, reliability and serviceability justify them.
DEUTSCH CONNECTORS
Robust connector families for vehicle systems where durable sealing and practical serviceability are important.
CONCENTRIC DESIGN
Concentric-twisted harness construction used for compact routing, flexibility, long service life and a high-end motorsport finish.
BEFORE WE START
TELL US ABOUT THE CAR.
The more useful information we have at the start, the easier it is to define the right scope and avoid unnecessary rework.
VEHICLE & INTENDED USE
Tell us what the car is, what it is being built for and how serious the competition or performance use will be.
CURRENT BUILD STATE
Let us know whether the car is complete, stripped, mid-build or already carrying an existing harness and electronics package.
ELECTRONICS LIST
ECU, PDM, dash, switches, sensors, pumps, fans, lighting and any other systems already selected or planned.
TIMELINE & SCOPE
Tell us what needs to be completed, what other work is happening around it and any timing constraints that matter.
WIRING ENQUIRY
LET'S WIRE IT PROPERLY.
Send through the vehicle, electronics and current state of the project. We can work out the right scope from there.
