Available for back order. Made to order, with dispatch in approximately 2 weeks. Delivery time is additional.
Give your loom a dedicated disconnect point.
Mount one autosport connector where you need quick access to your loom. Choose a compact footprint for smaller connectors, or step up to Medium or Large to suit your hardware and available panel space.

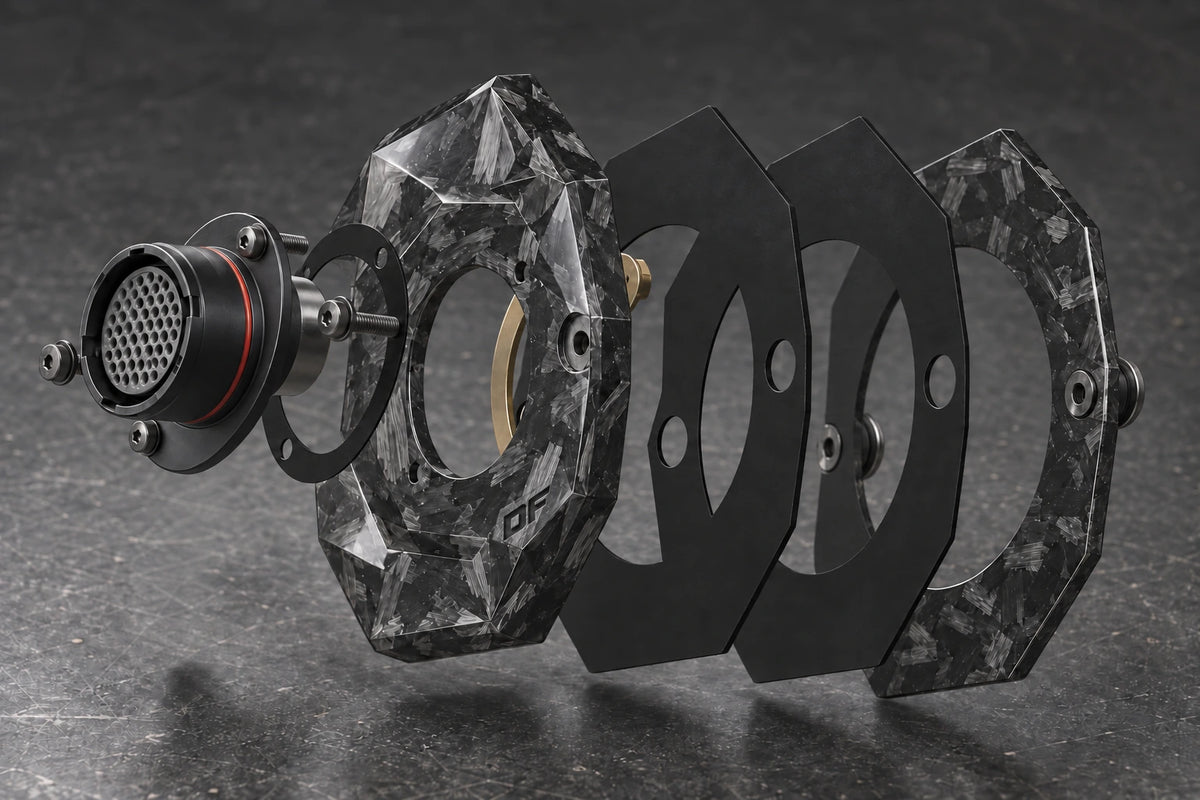

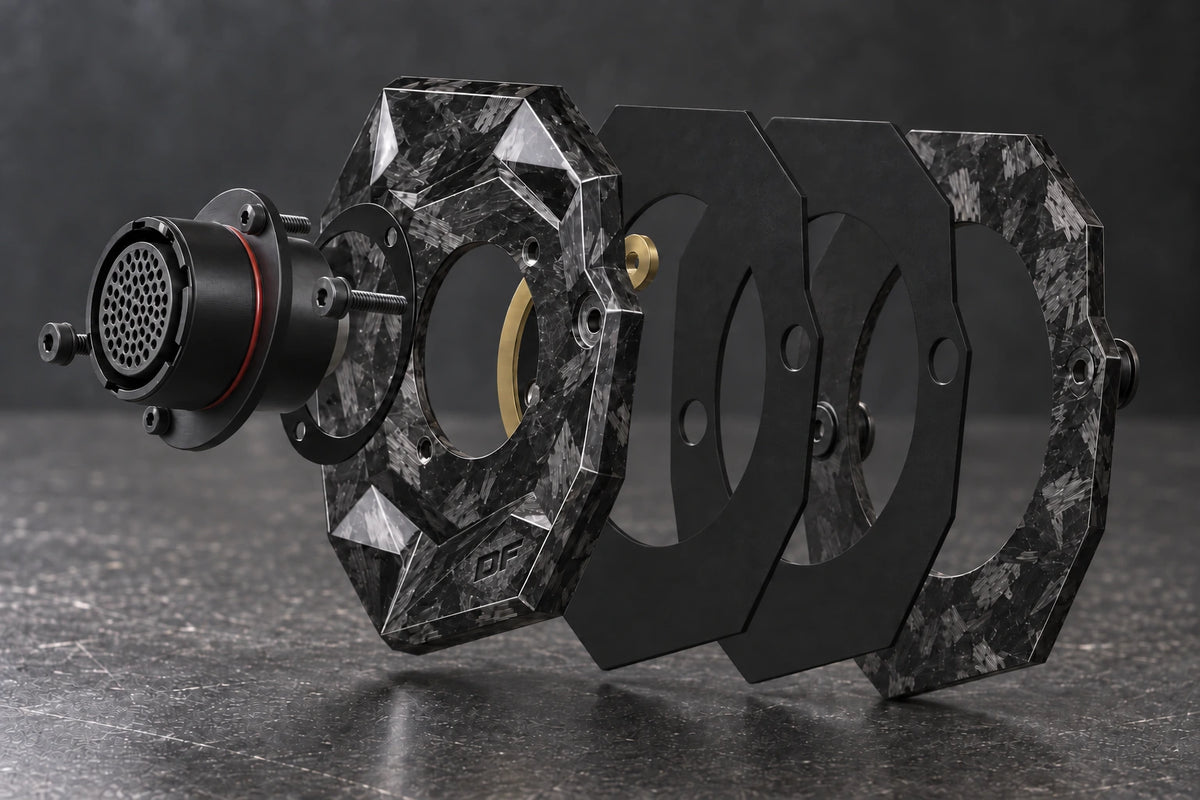

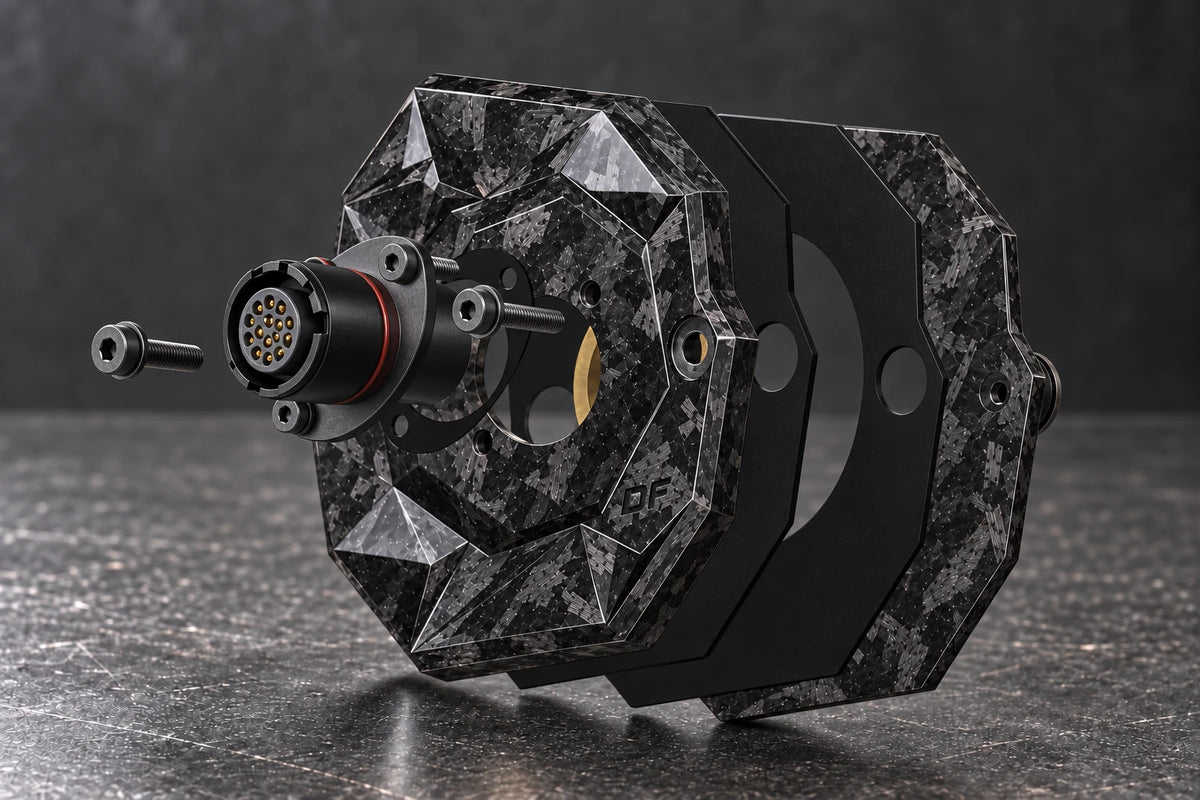

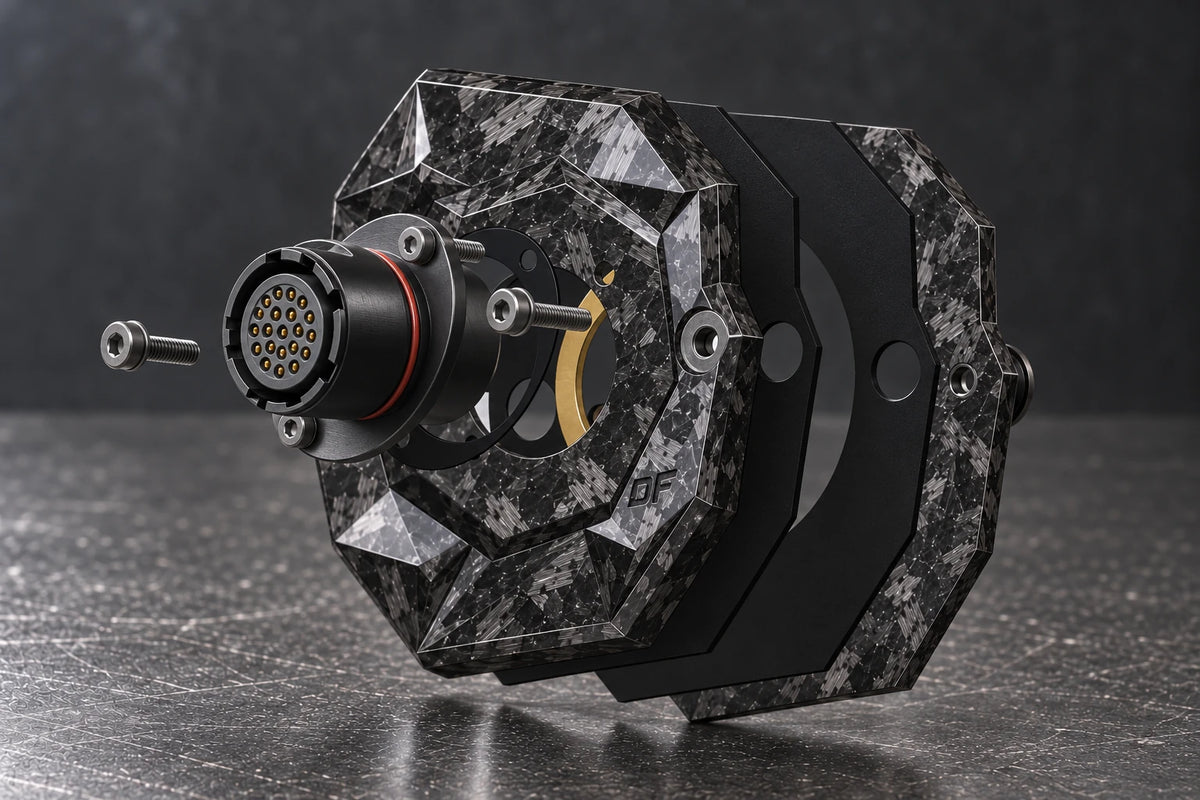

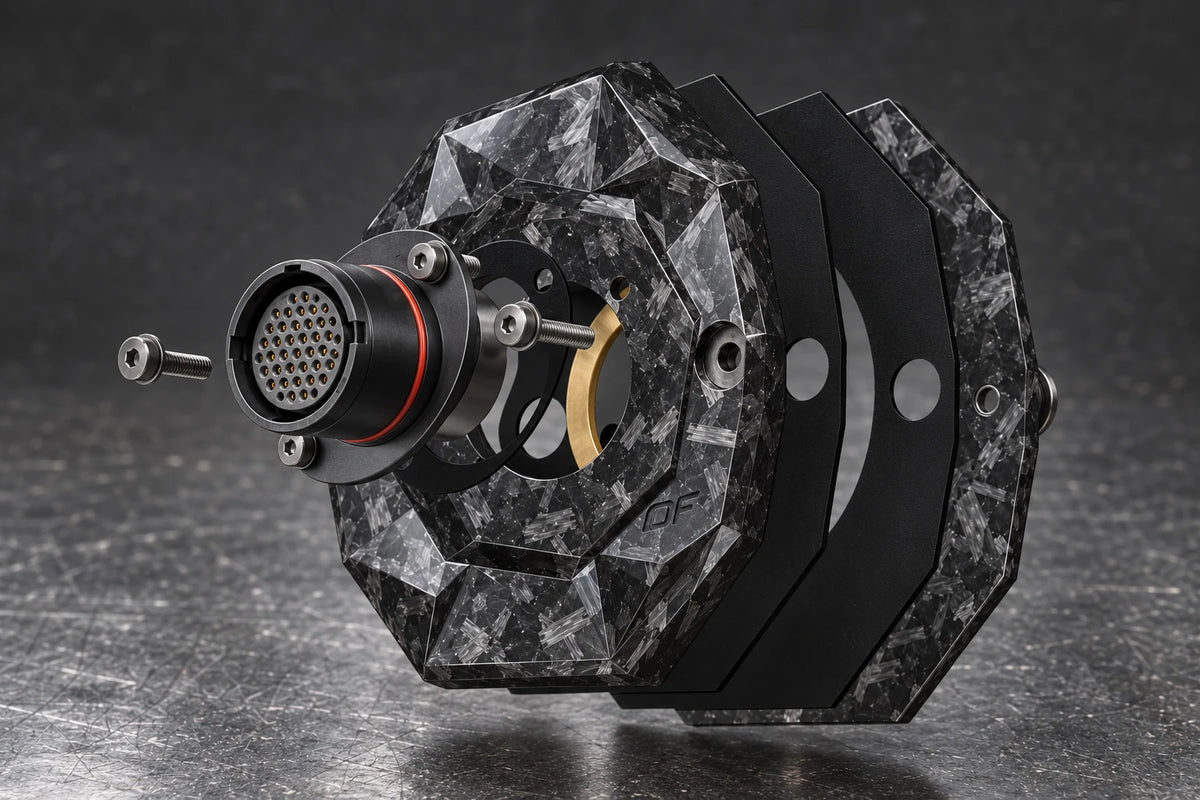

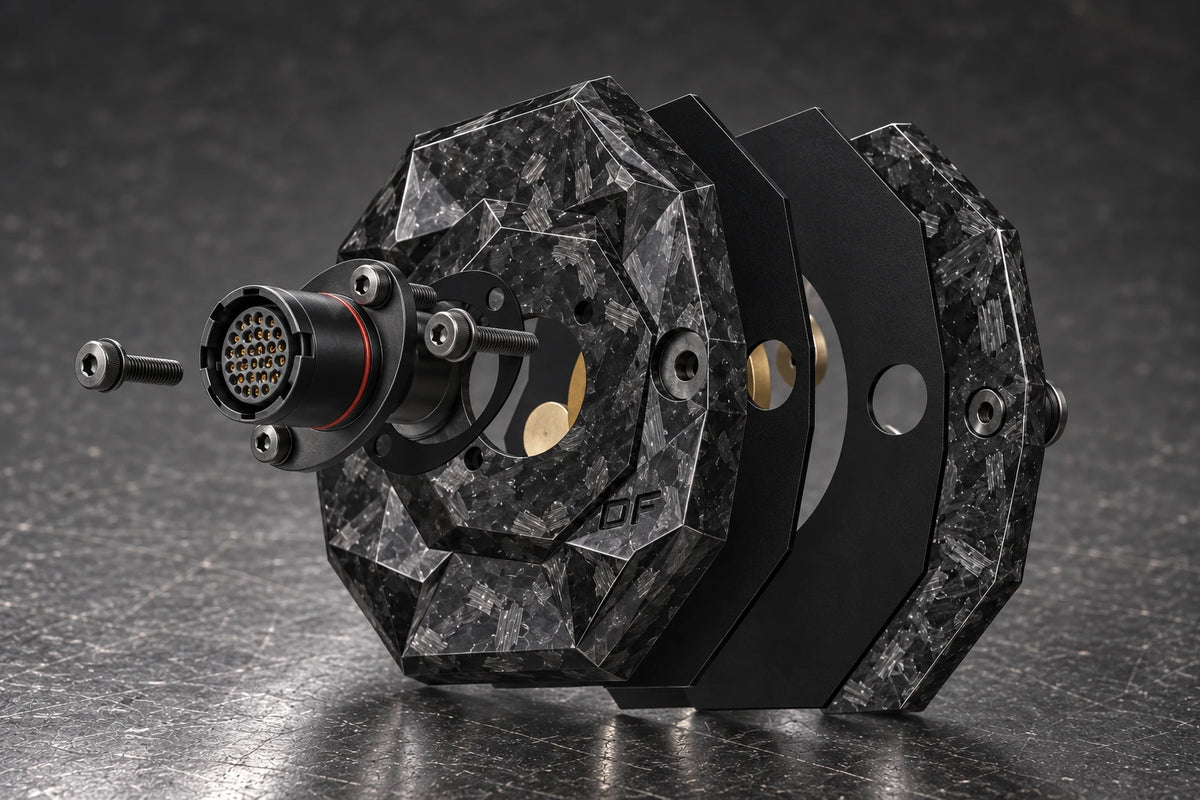

Each kit pairs a compression-moulded chopped-carbon front plate with a matching carbon backing frame, panel gaskets and perimeter mounting hardware.
Supplied as a blank kit requiring machining. Connectors are not included.
Choose the right size for your build
Start with your connector shell size, then check the overall plate footprint against your mounting area. Compact, Medium and Large share the same approach to installation, with different seat sizes and spacing.

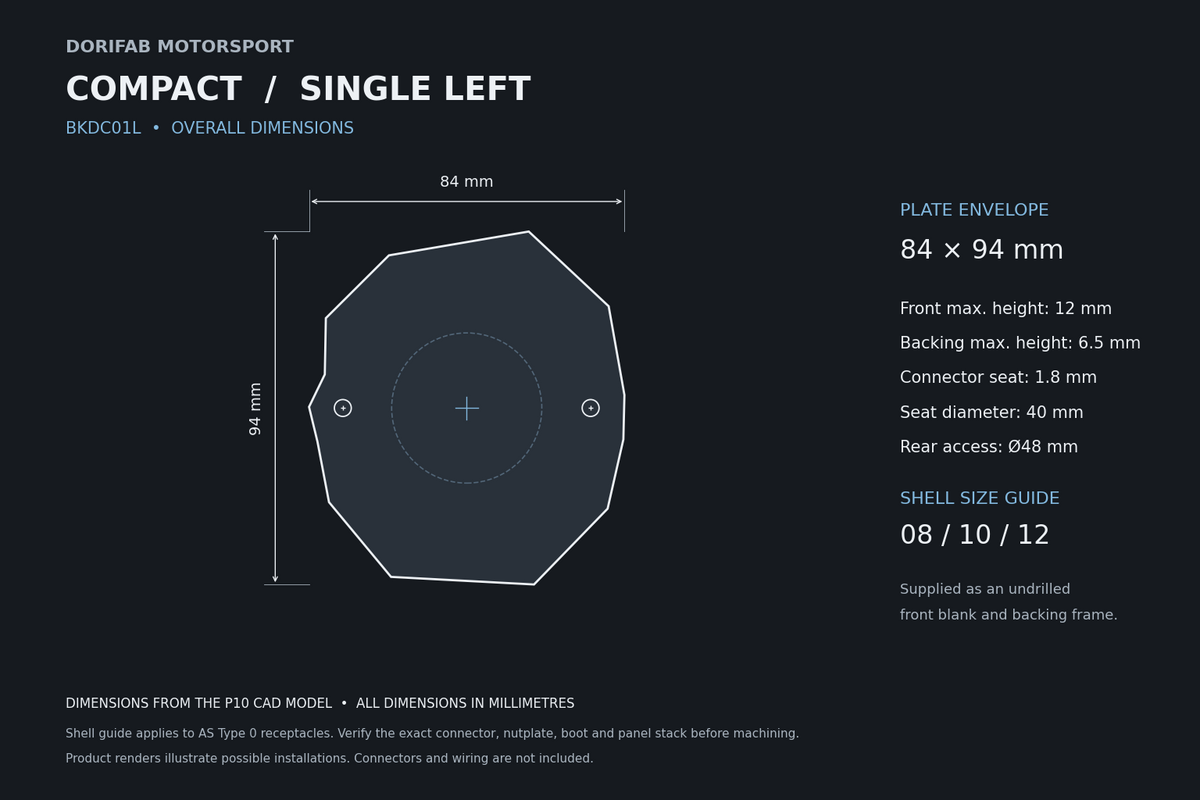

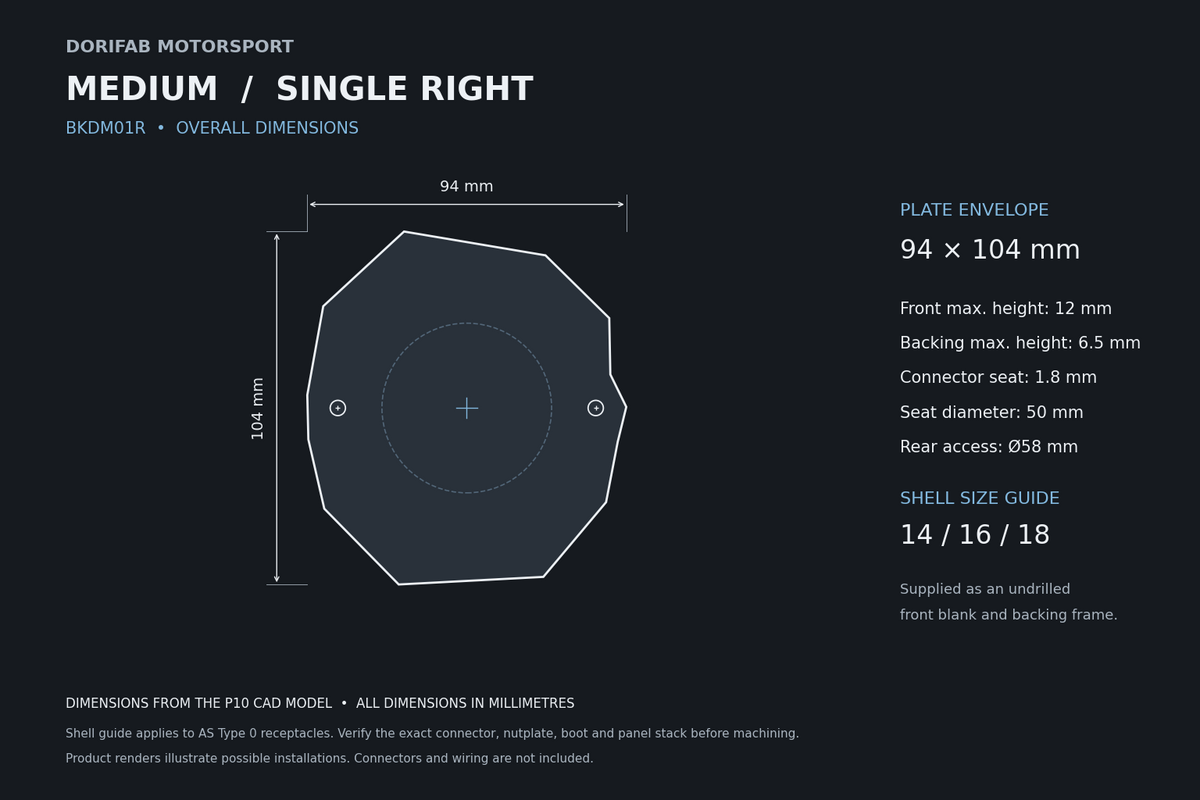

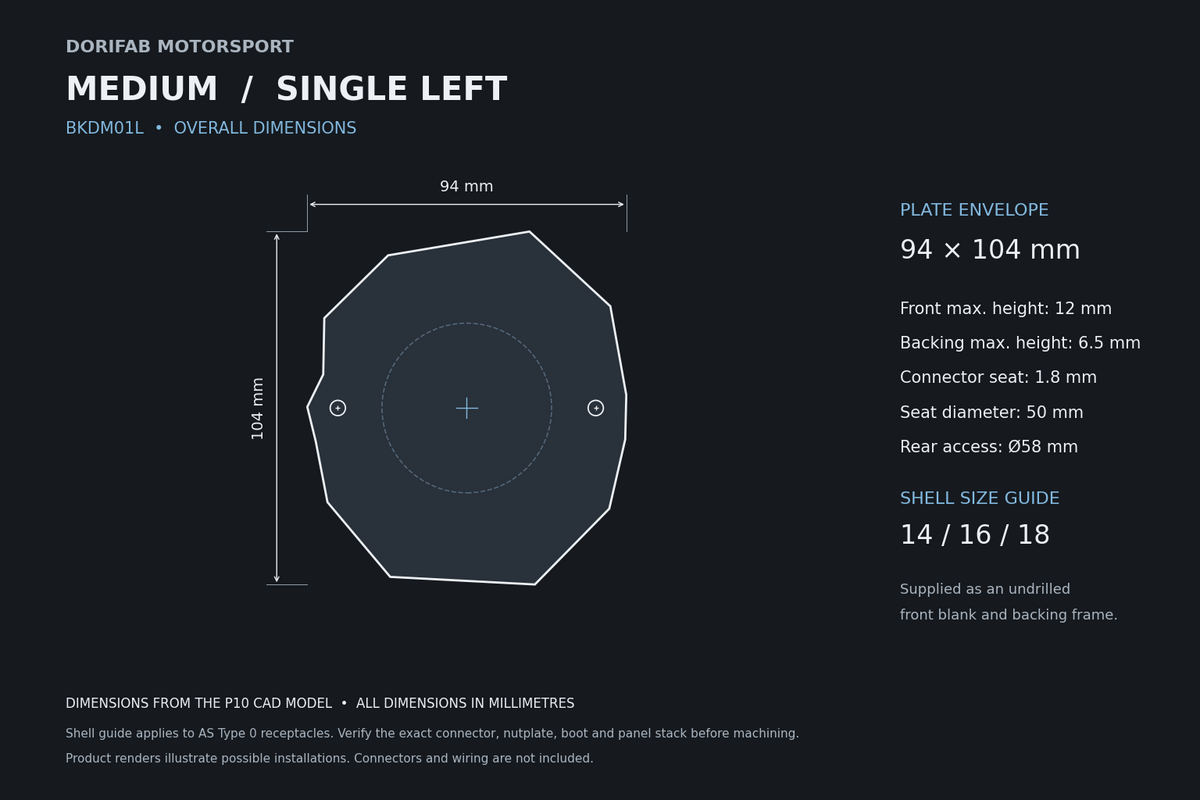

| Size | AS Type 0 shell guide | Plate footprint (W × H) |
|---|---|---|

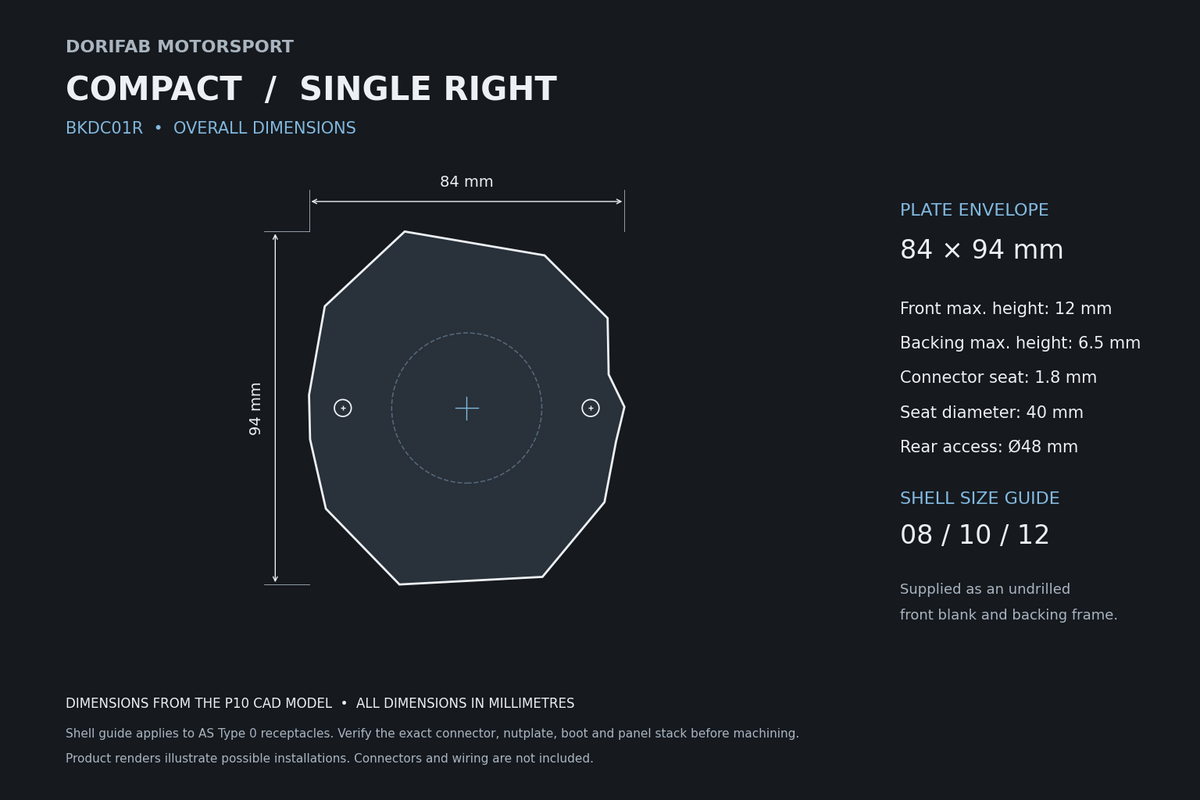

| Compact | 08, 10, 12 | 84 × 94 mm |
| Medium | 14, 16, 18 | 94 × 104 mm |

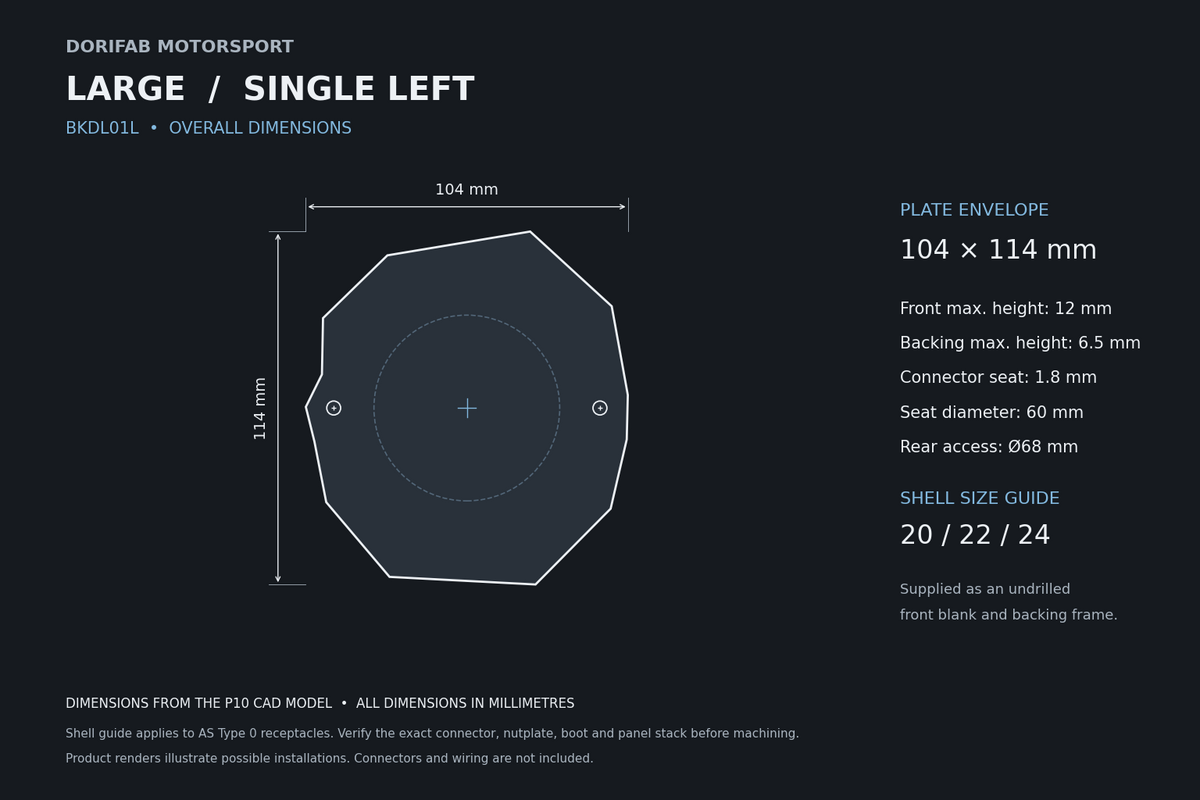

| Large | 20, 22, 24 | 104 × 114 mm |

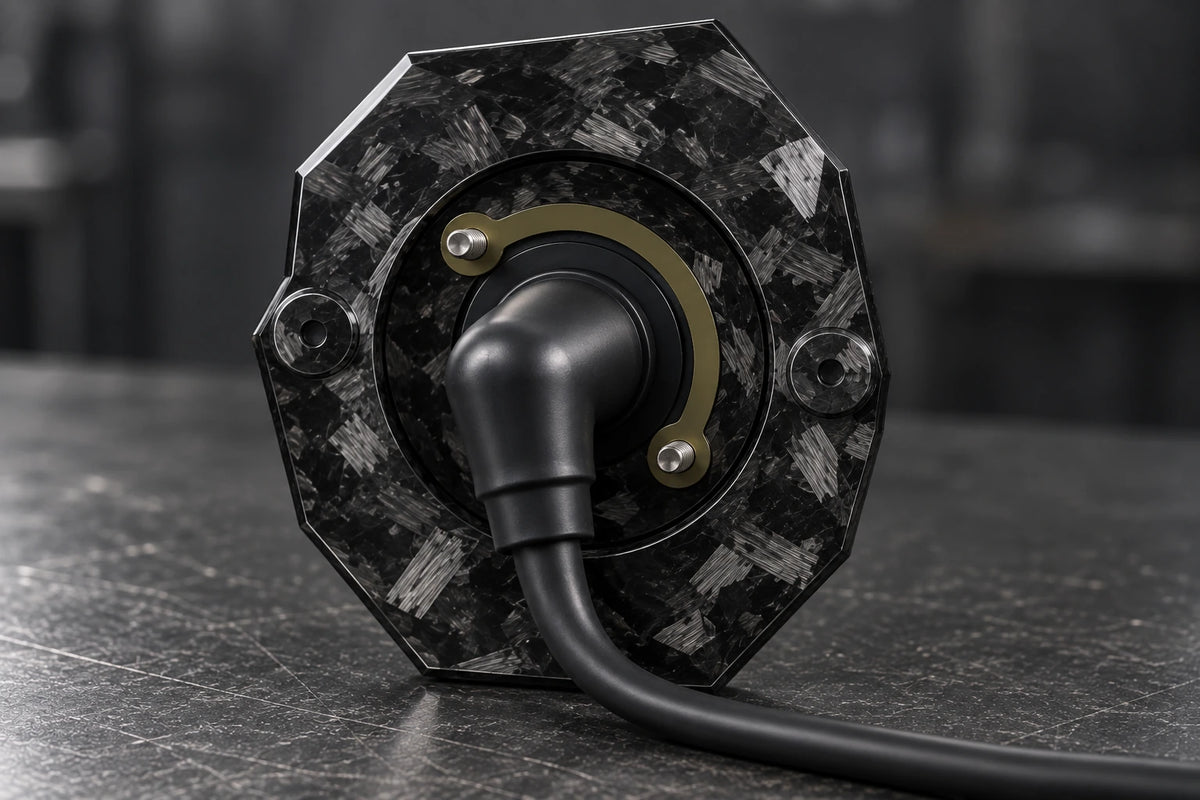

Shell size is not the contact count. Check the shell designation in your connector part number. Allow room behind the panel for the matching ATM396 nutplate, connector boot and loom bend.
Left or Right?
Choose the plate shape that best fits your mounting area. Left and Right are mirrored outlines when viewed from the connector mating side; they do not prescribe a side of the vehicle. Both orientations have the same overall dimensions. The connector fixing pattern follows its factory drawing in either orientation.
What comes in the box

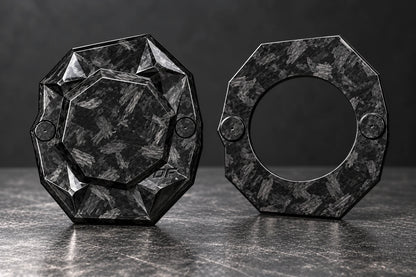

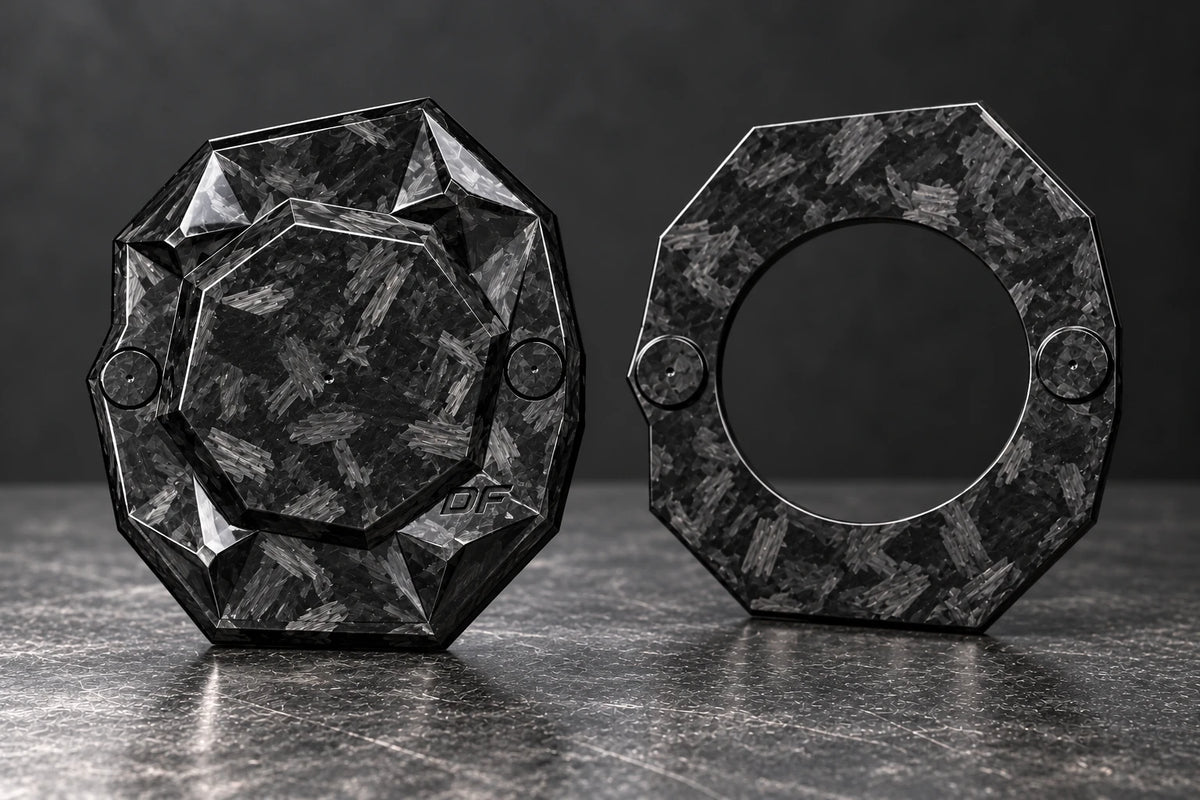

- One forged-carbon front blank in your selected size and Left or Right orientation.
- One matching forged-carbon backing frame.
- Panel gaskets.
- Perimeter mounting hardware.
Check fitment before ordering
Designed around Deutsch Autosport AS Type 0 receptacles and the matching ATM396 nutplates. Use the size guide as a starting point, then confirm fitment from the exact manufacturer drawings for your selected hardware. Check the panel space, rear access and loom route before committing to the layout.
What installation involves

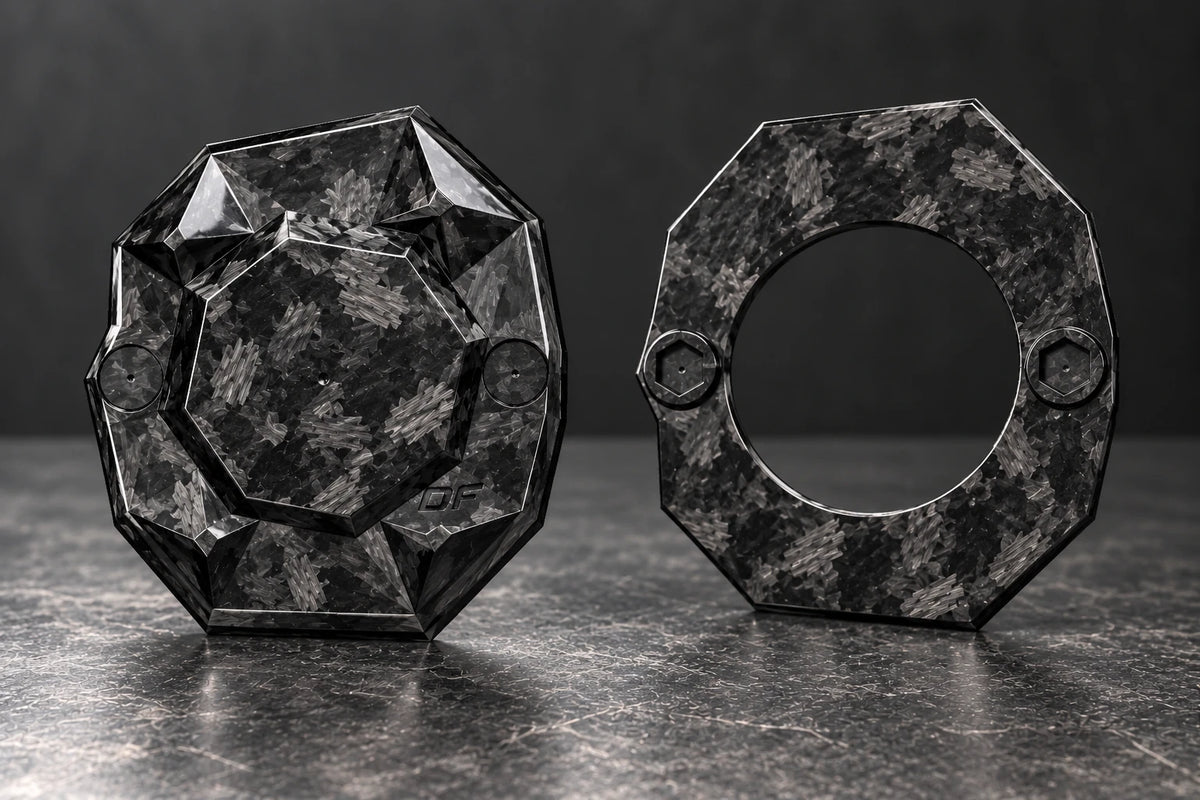

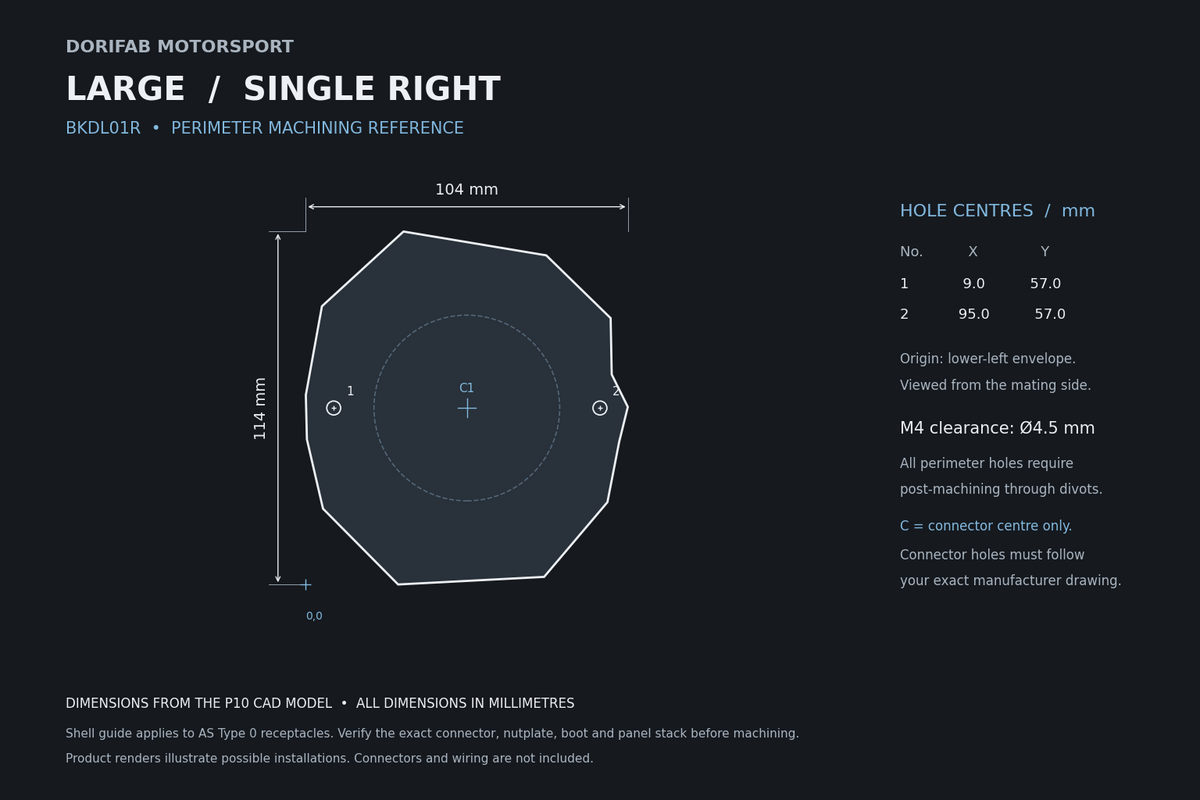

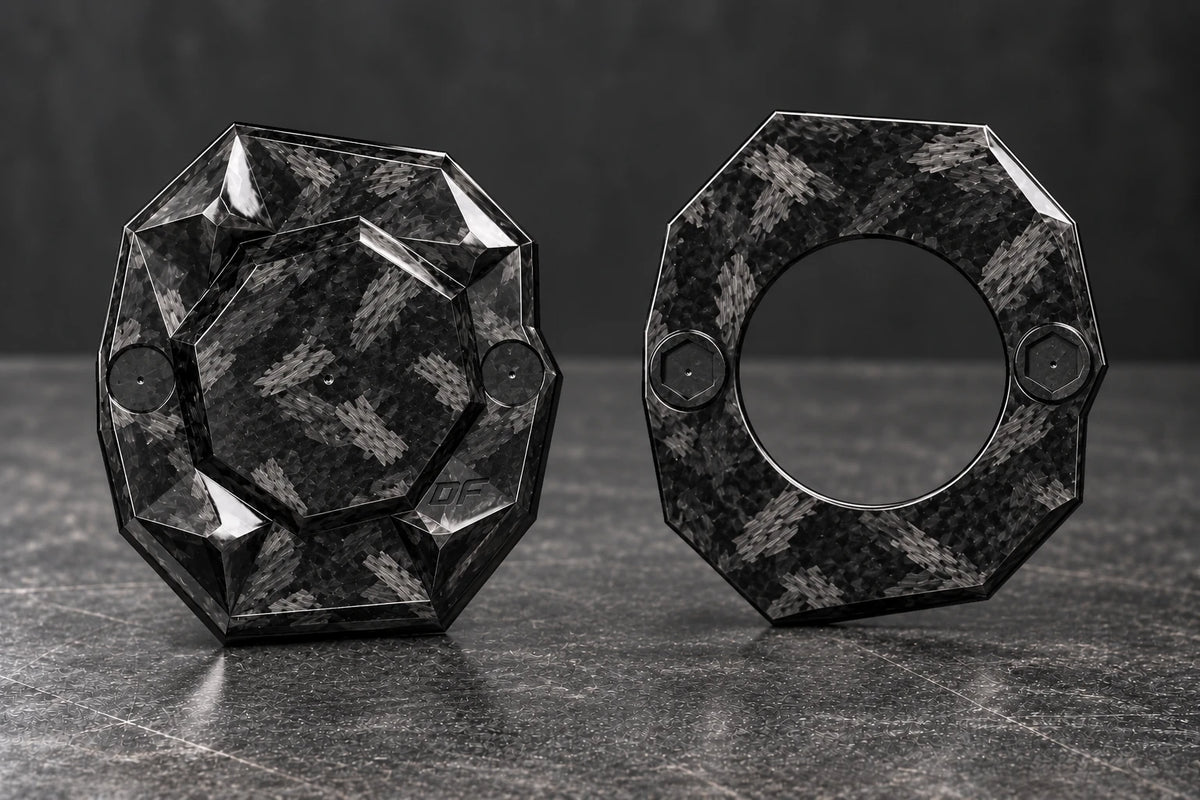

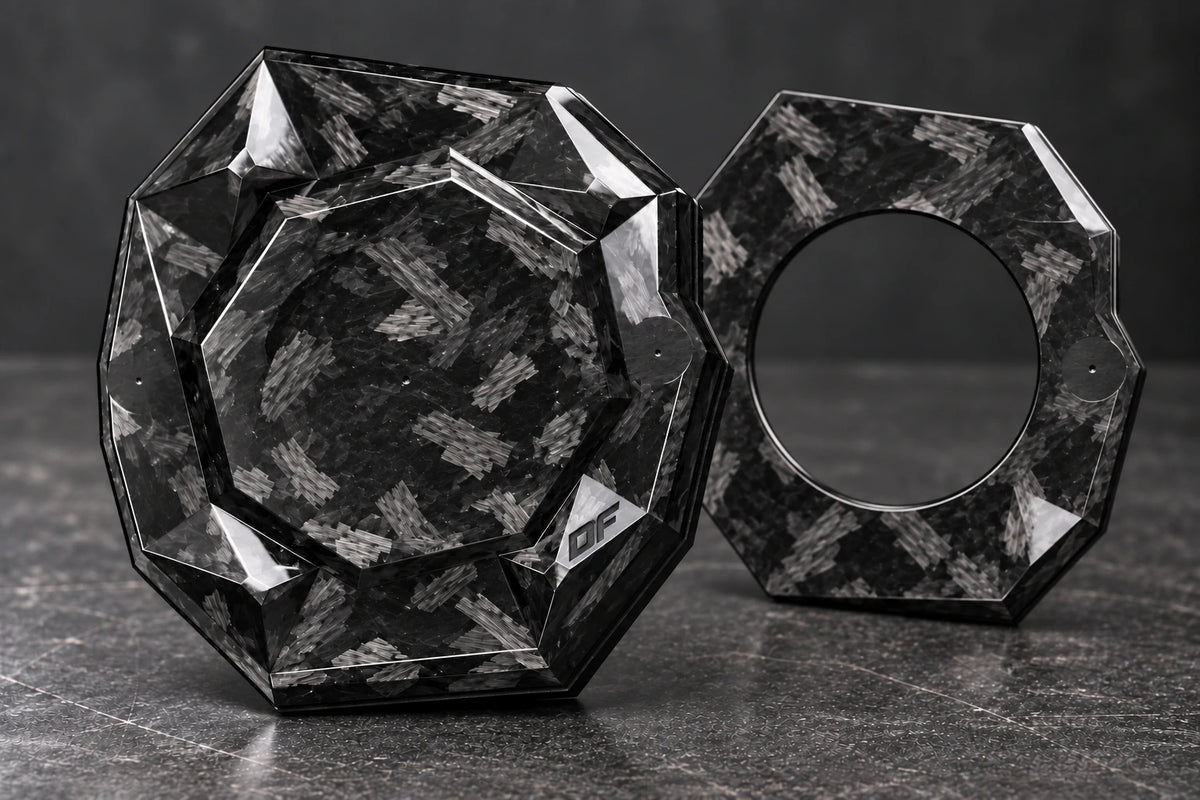

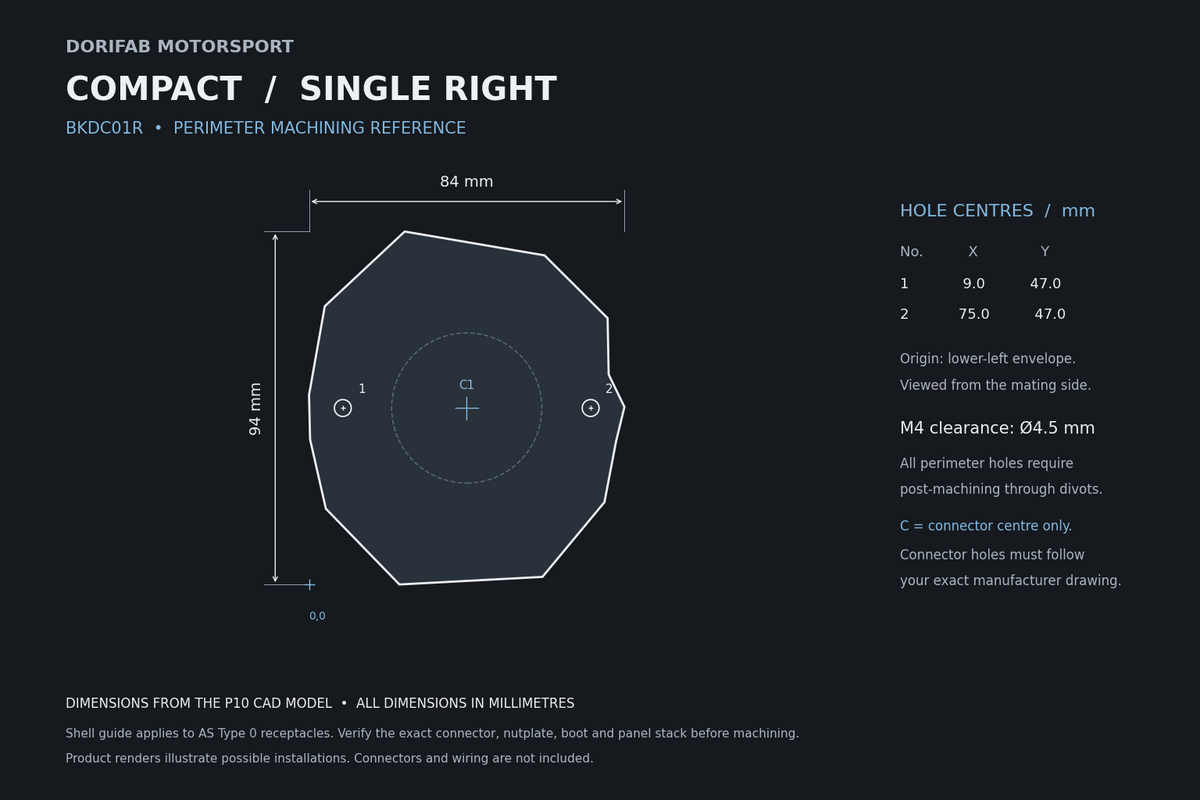

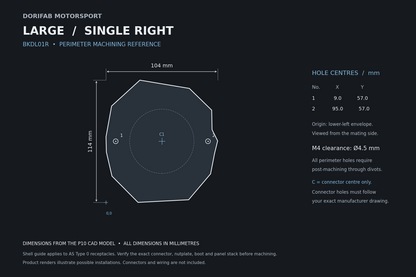

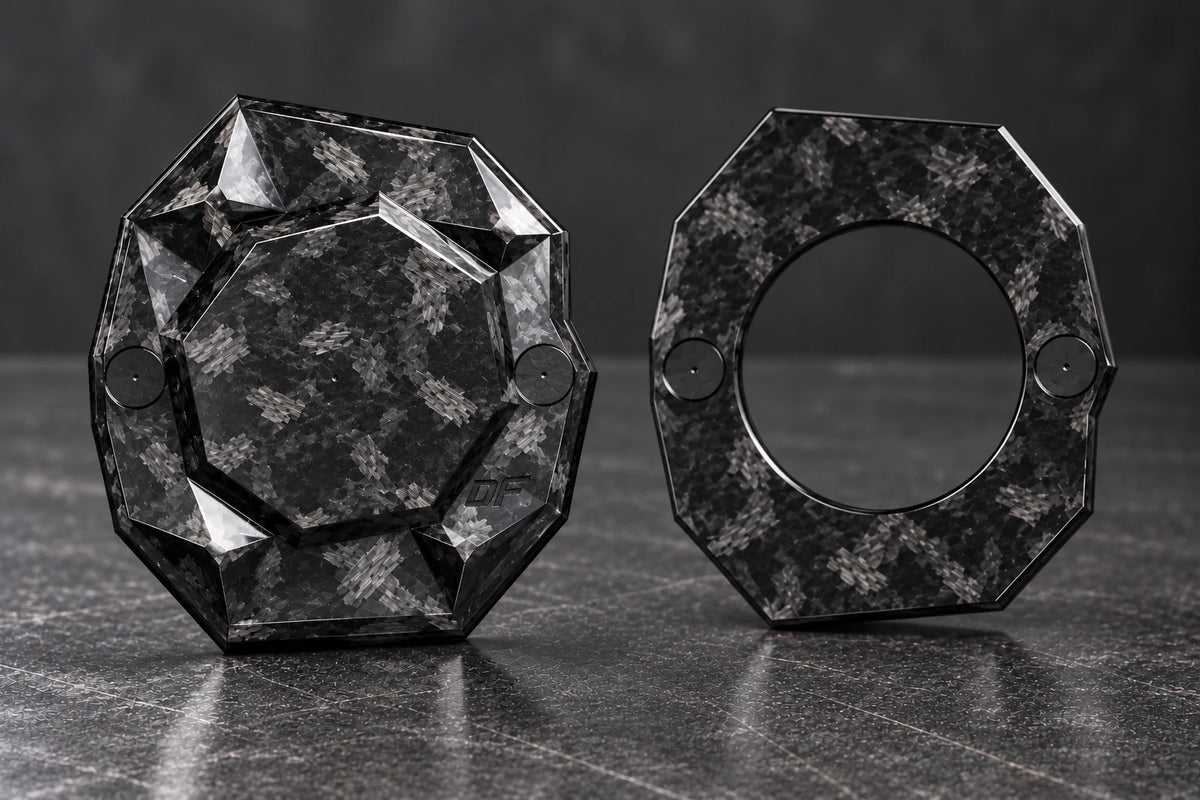

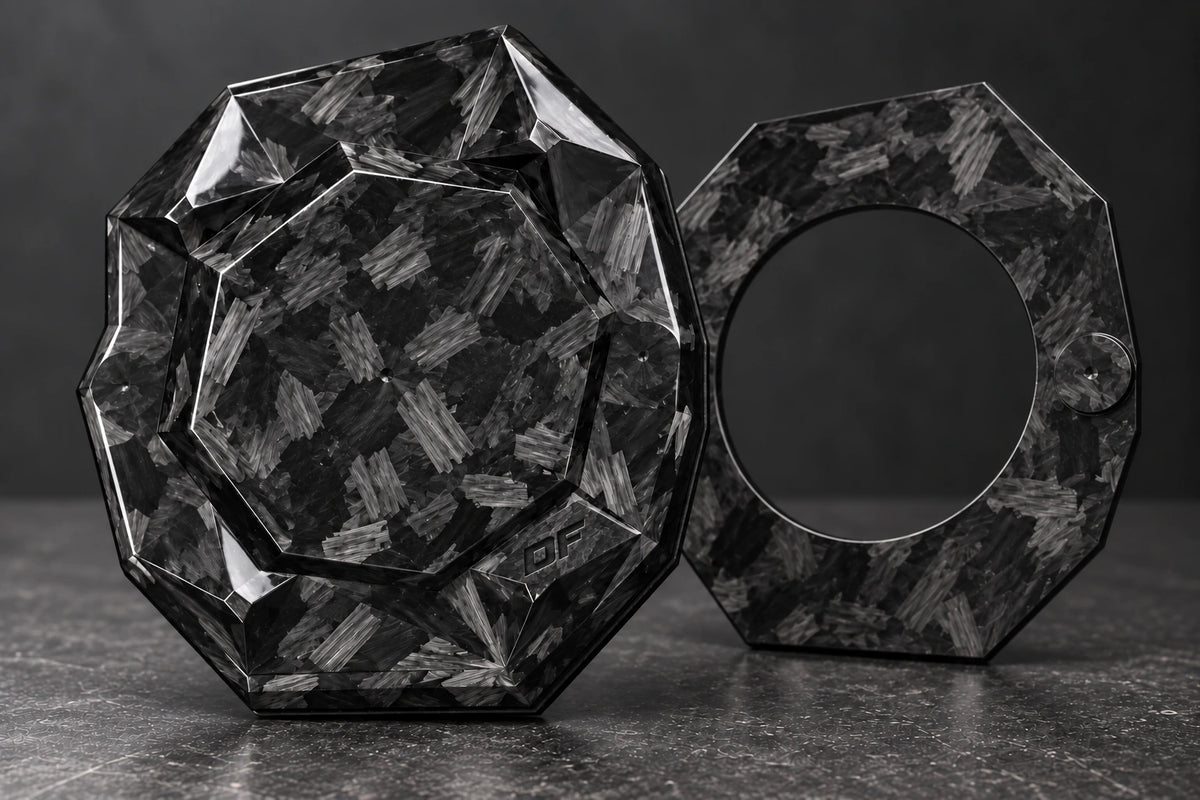

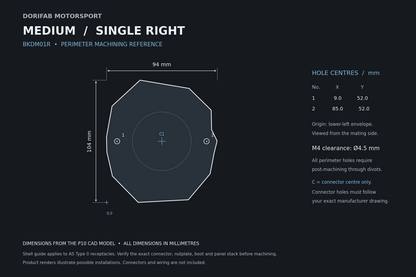

The front arrives with solid connector seats and centre marks. The backing frame has access openings. Connector openings, connector flange holes and perimeter mounting holes require post-machining to suit your installation. Retain the factory connector fixing orientation and use the drawing for your exact shell to set the cut-out and hole pattern.
What else will I need?

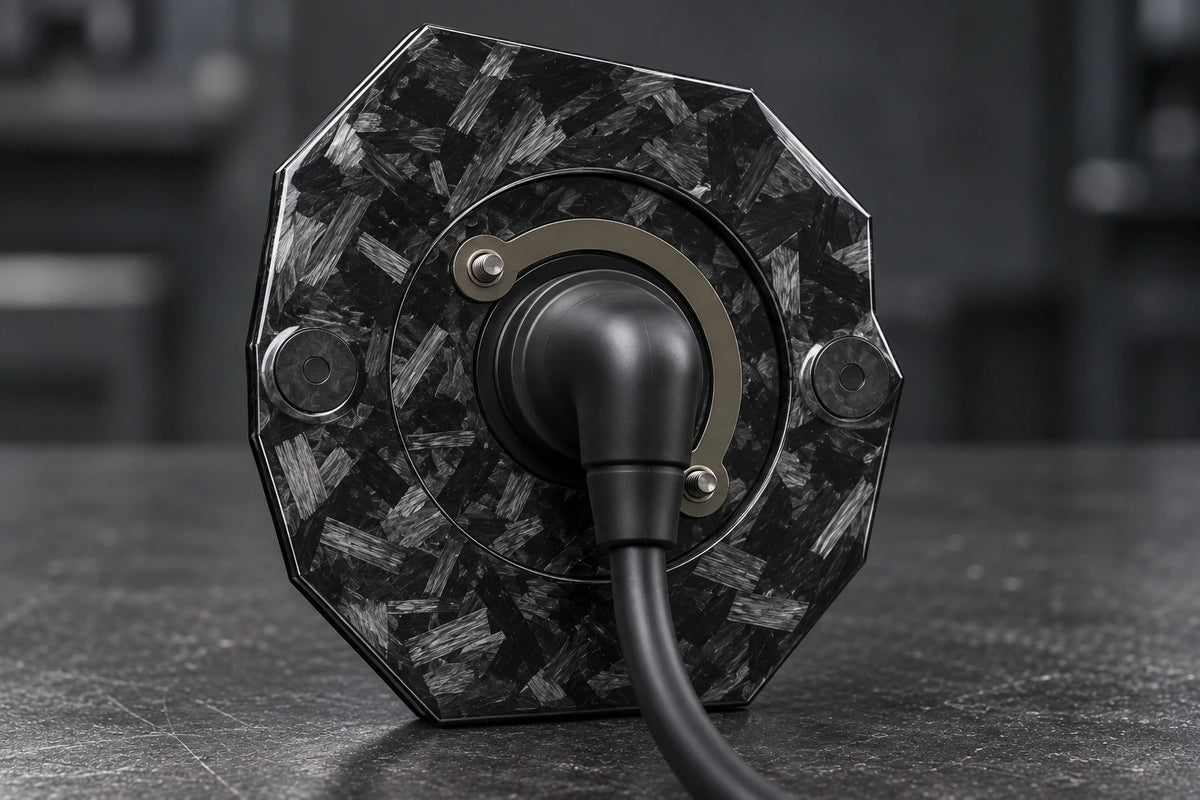

Your chosen connectors and contacts, corresponding ATM396 nutplates, connector boots and wiring loom. Connectors, nutplates, boots, loom and connector-specific machining are not included.
Need a different connector count? Compare the Dual or Triple.
Need help choosing? Send us your connector part numbers and a photo of the mounting area before ordering.

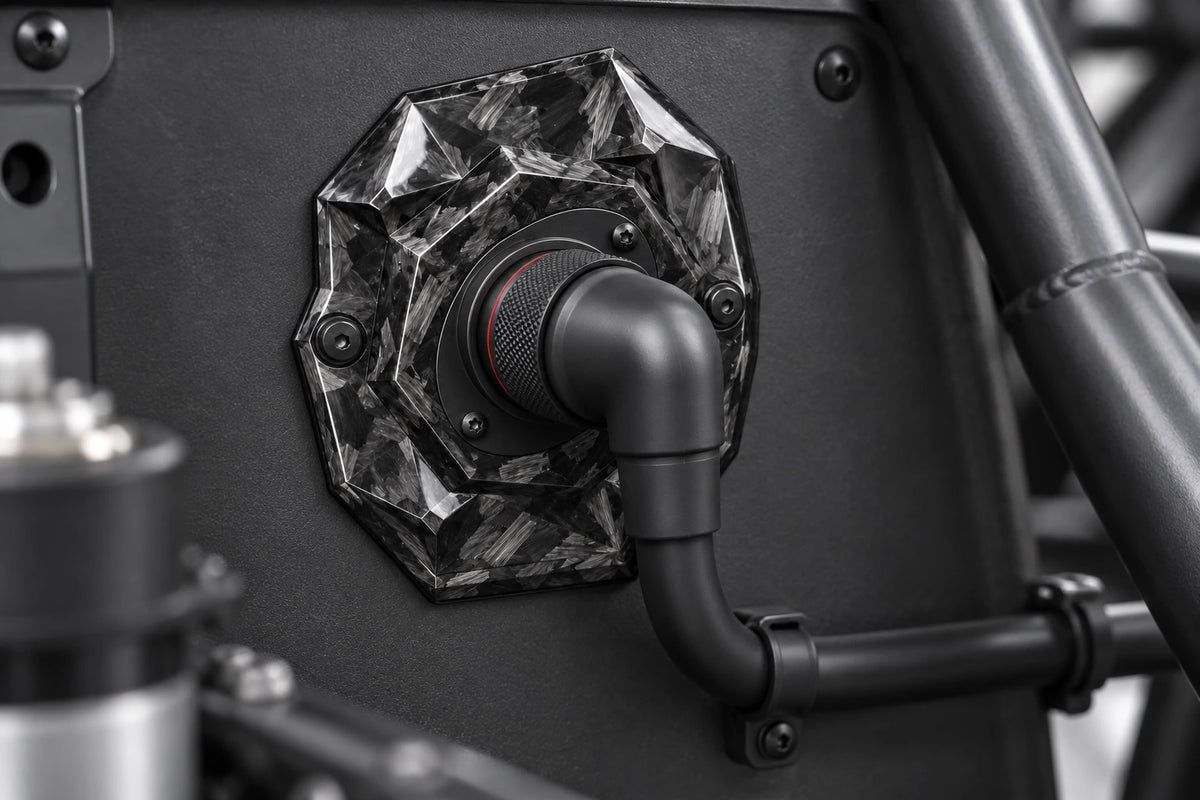

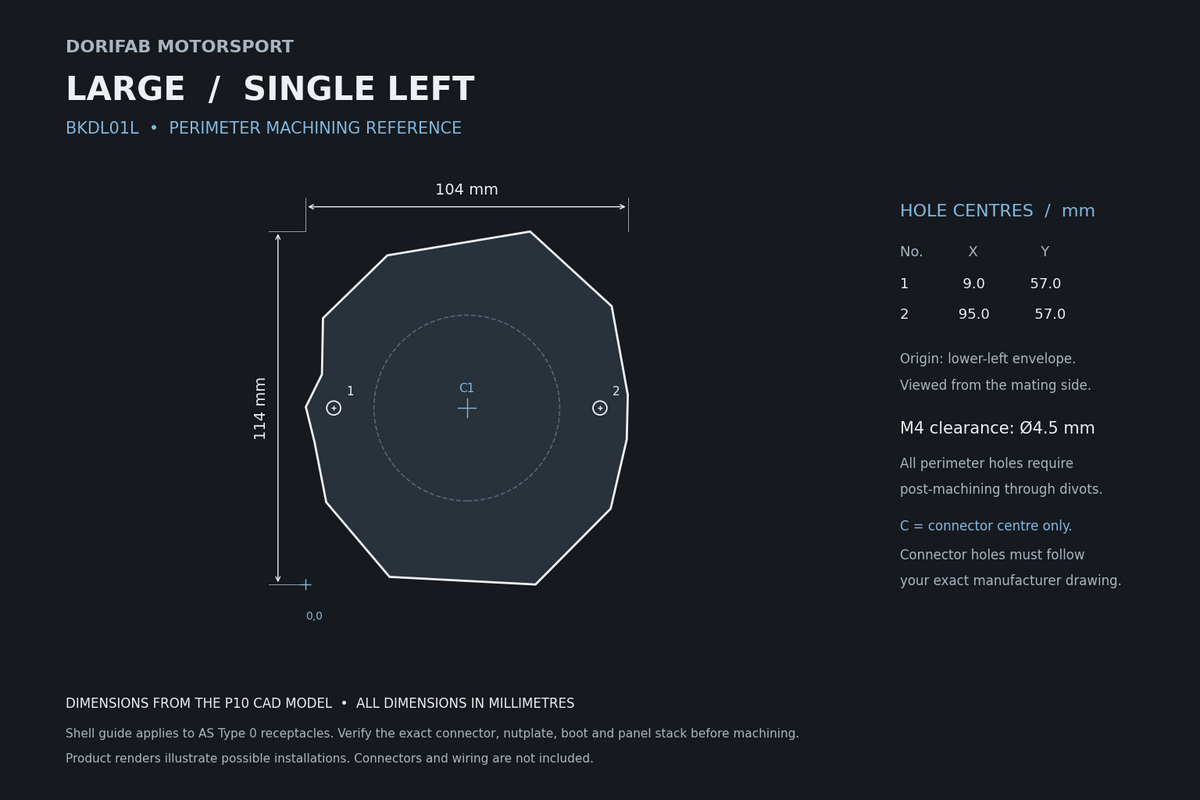

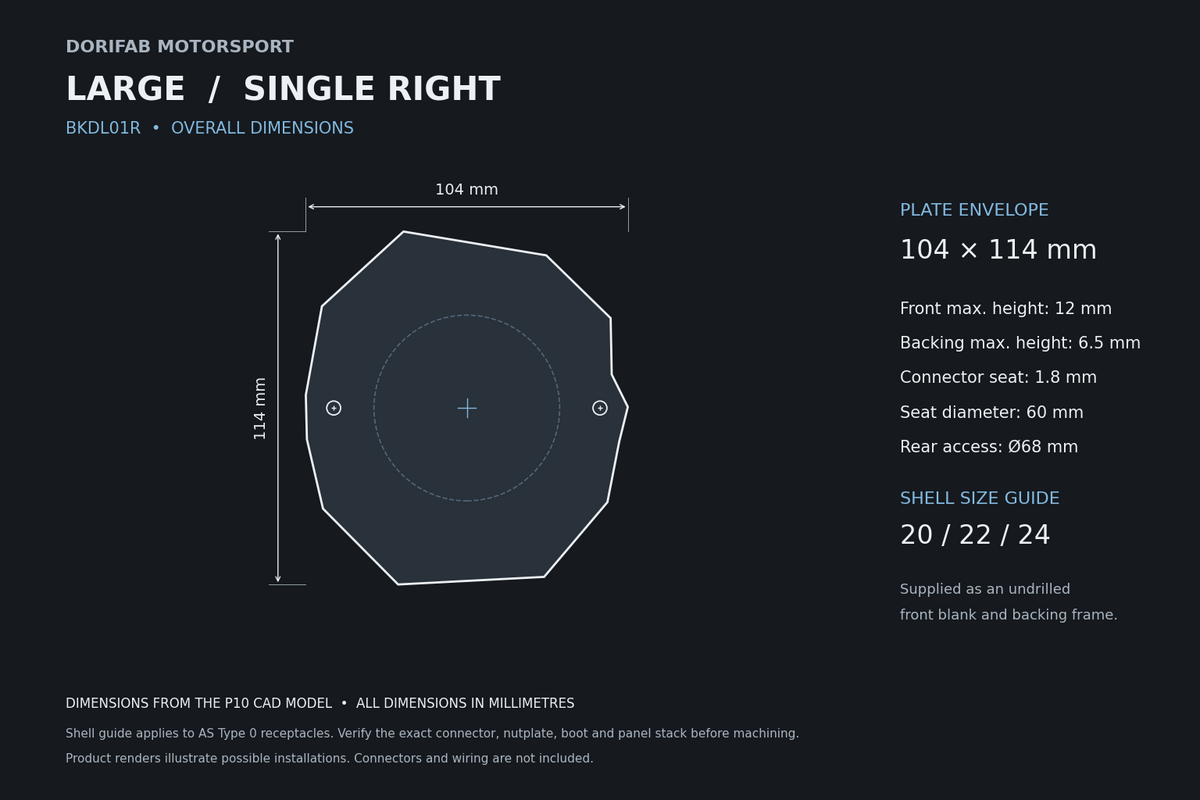

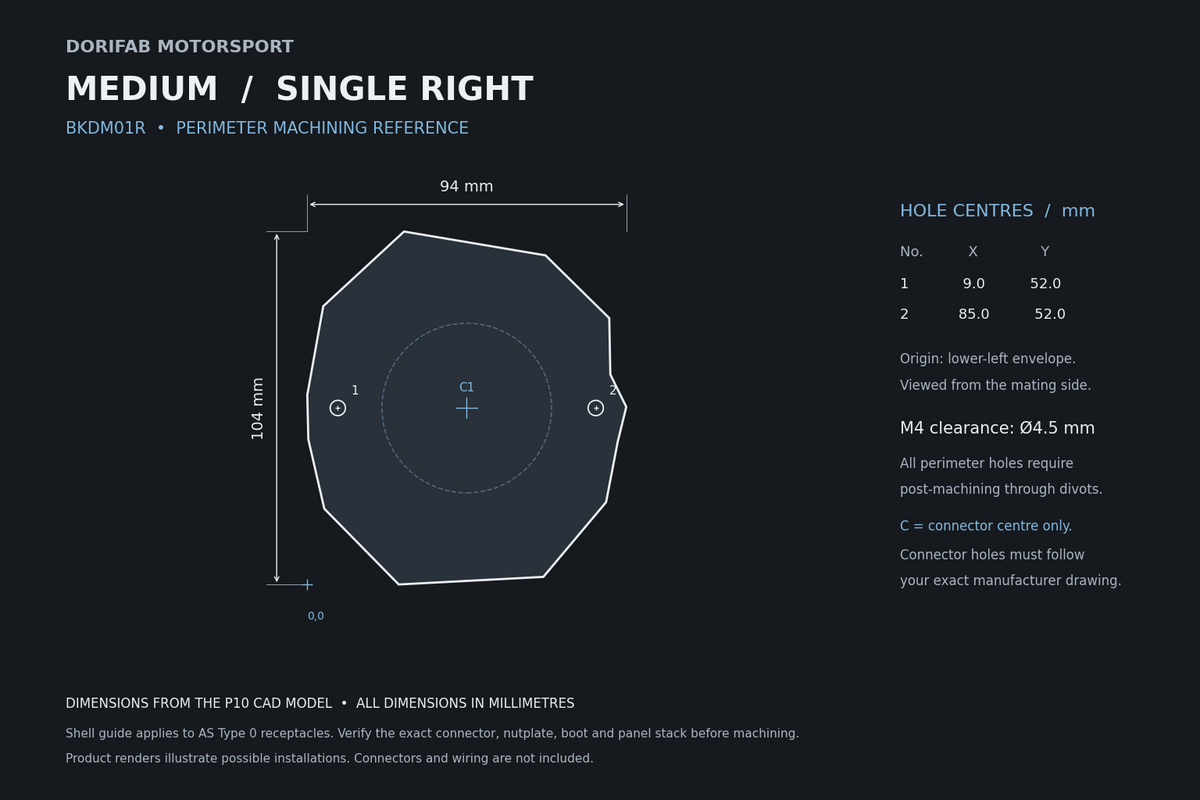

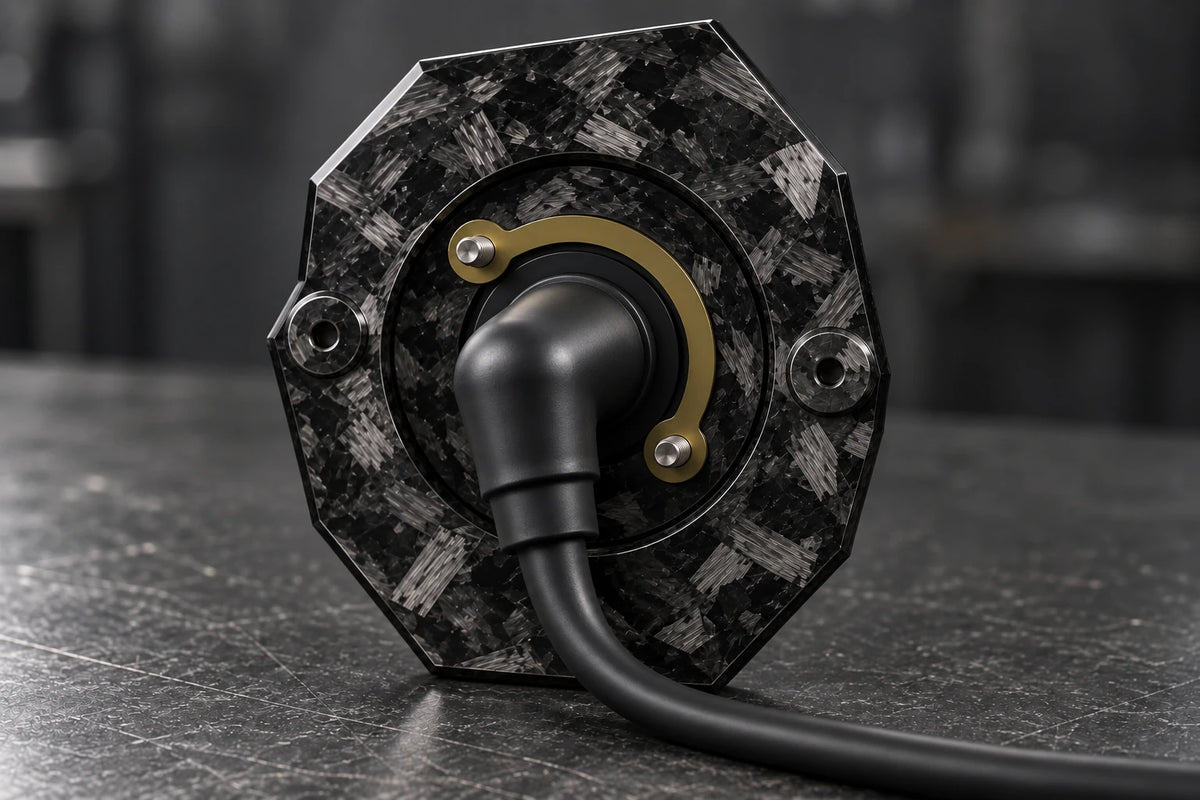

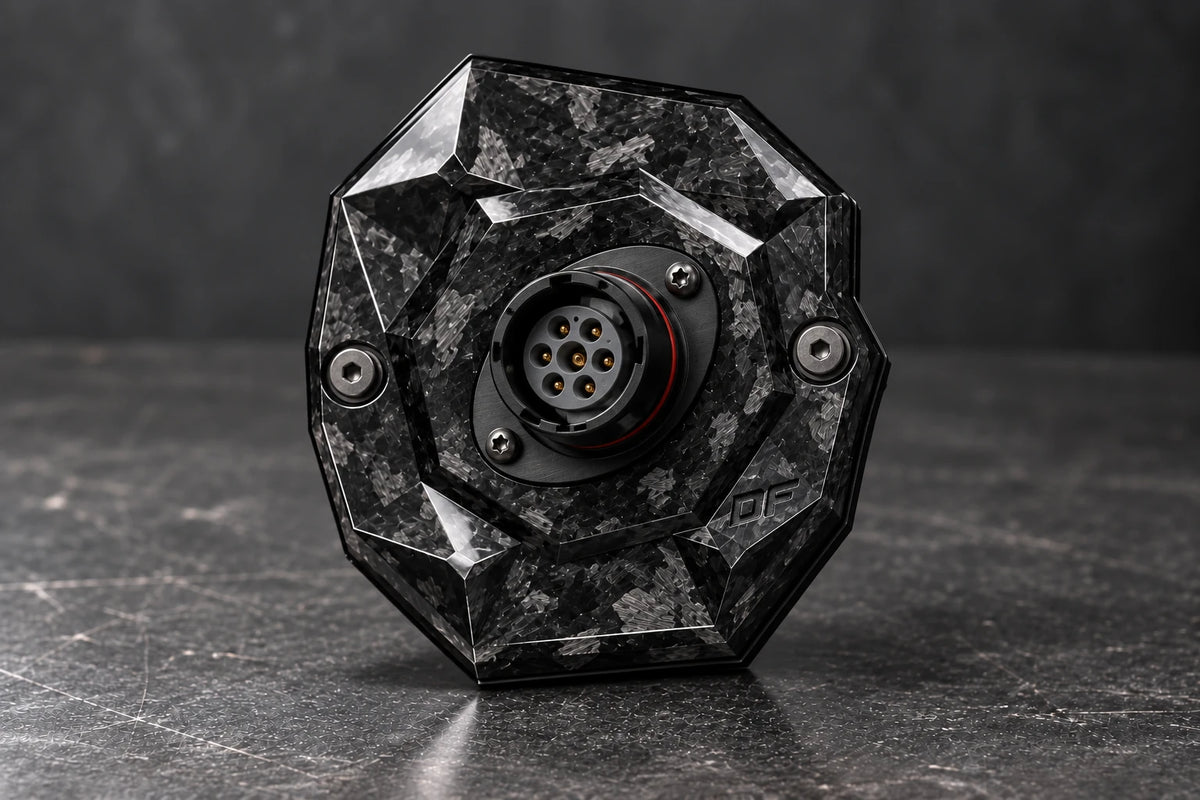

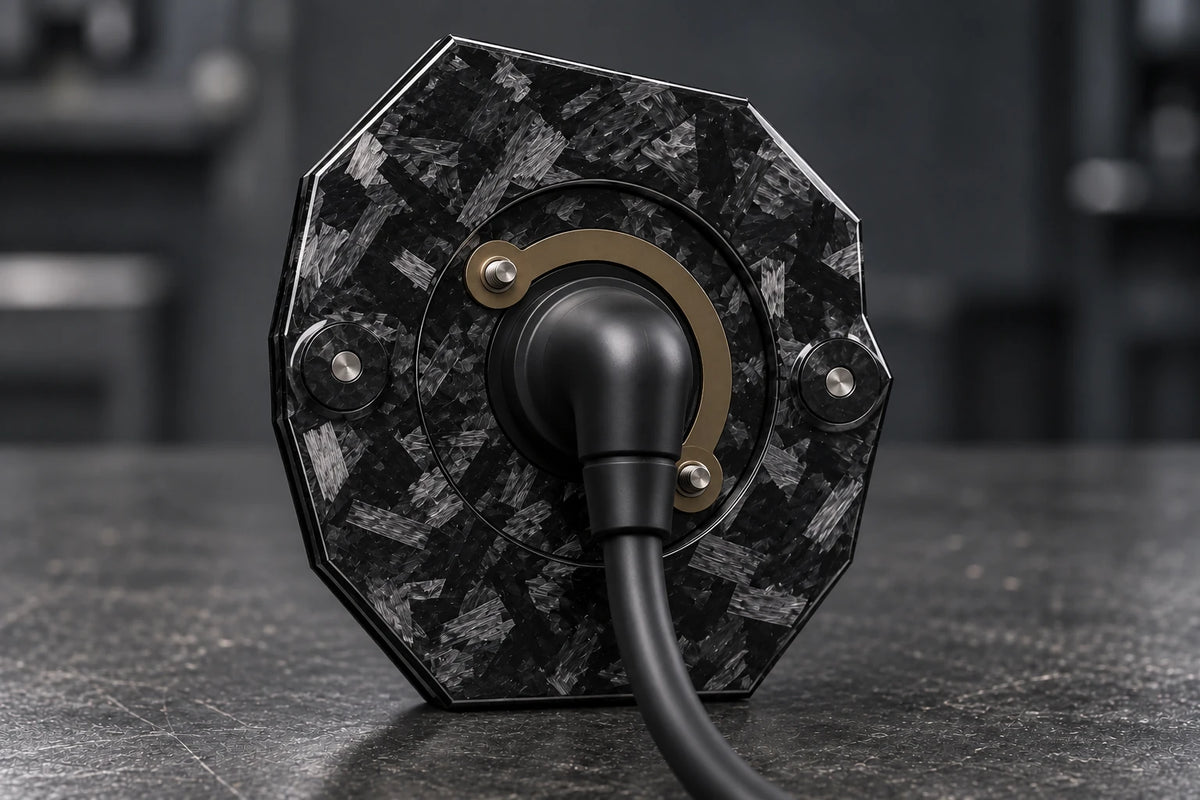

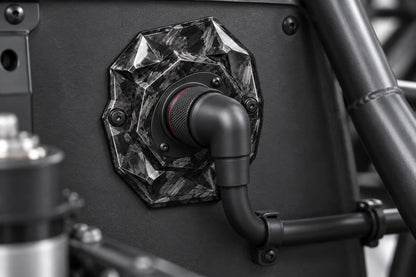

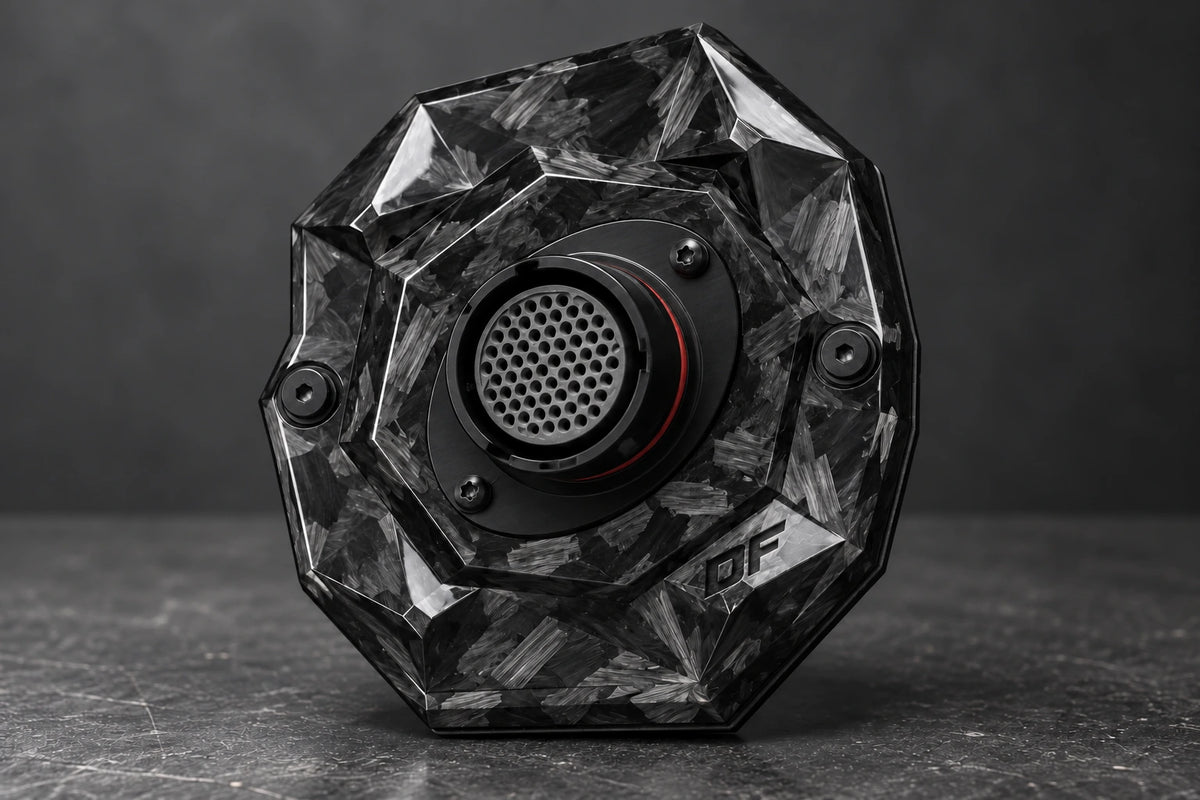

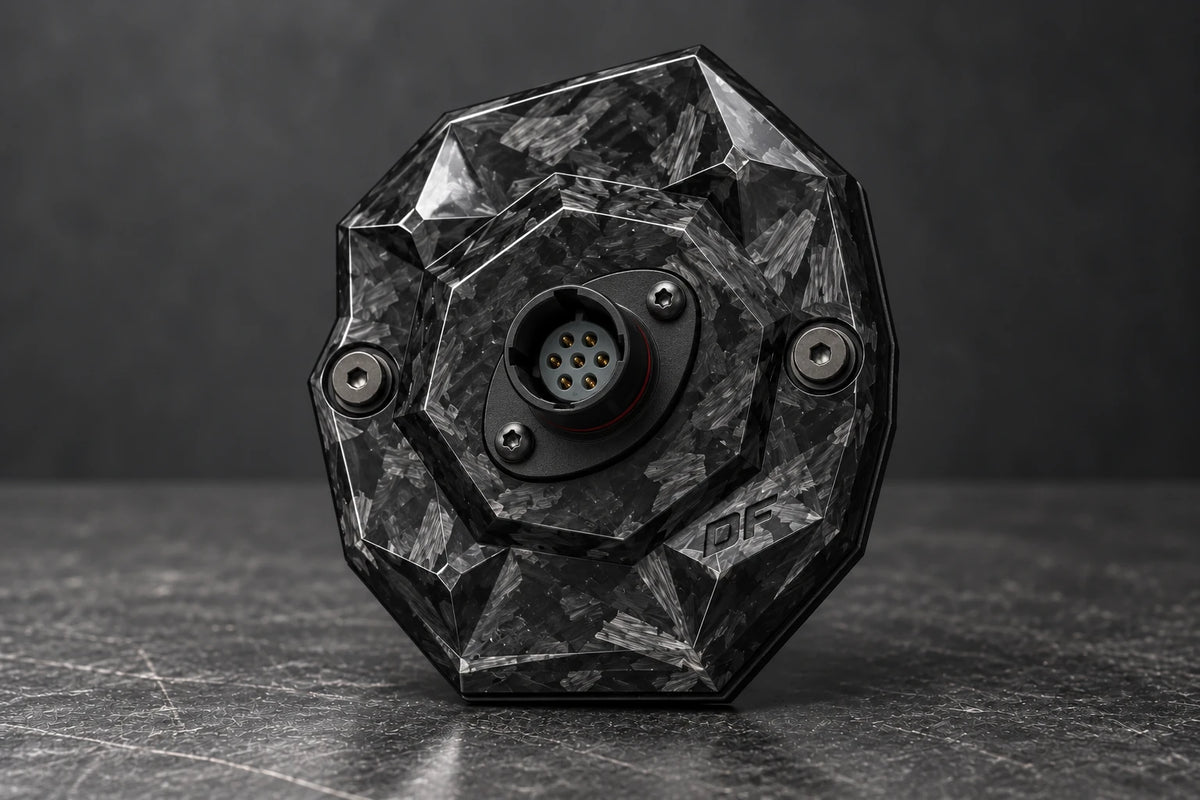

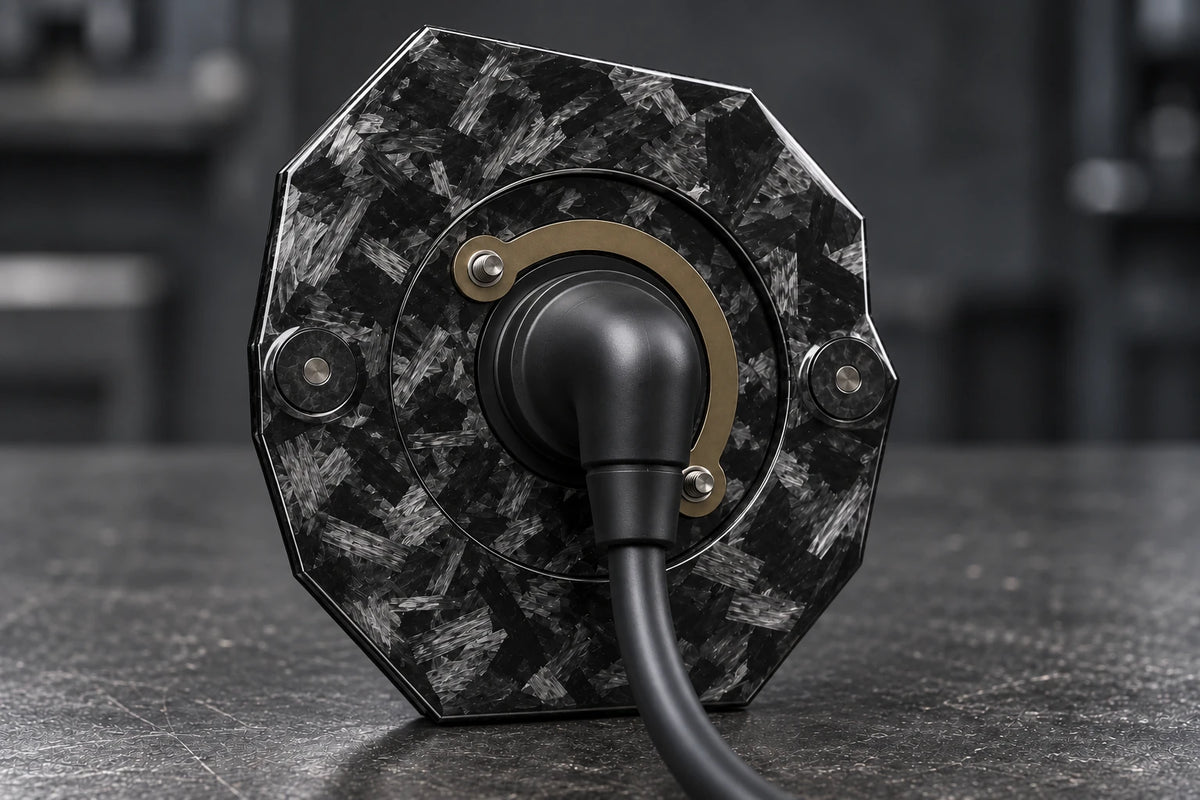

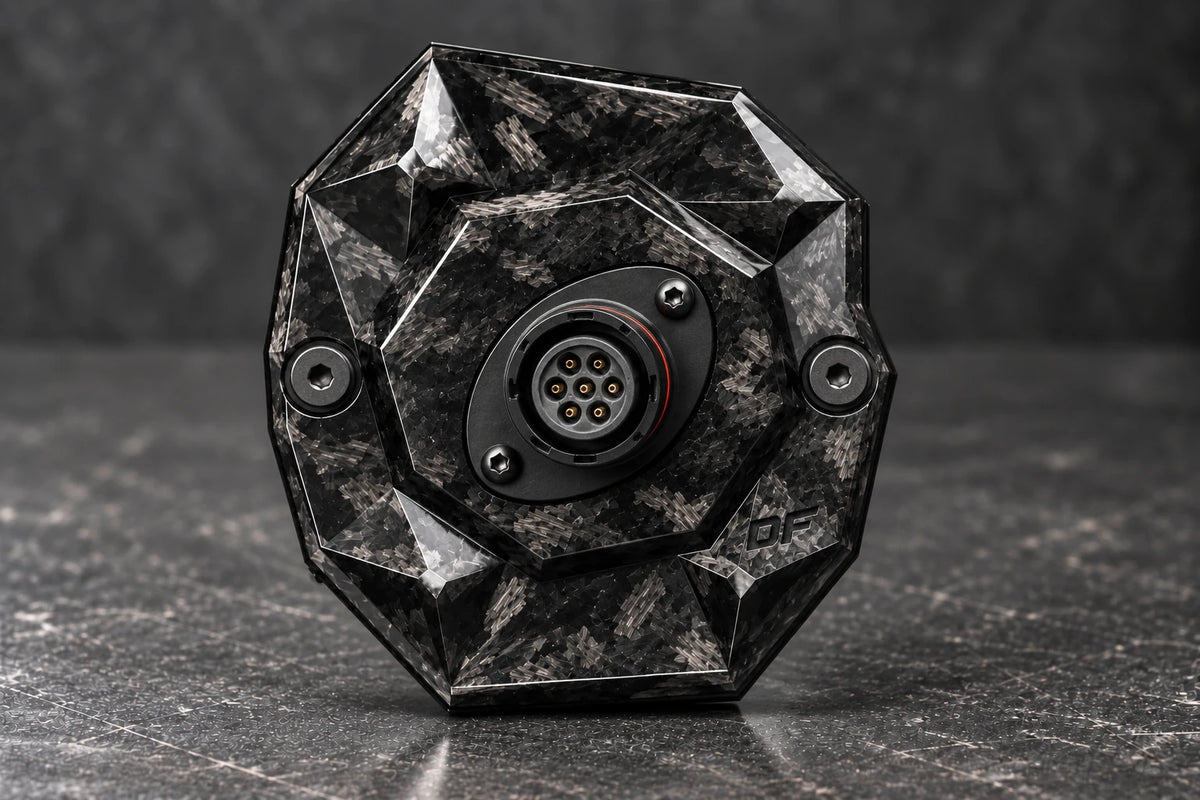

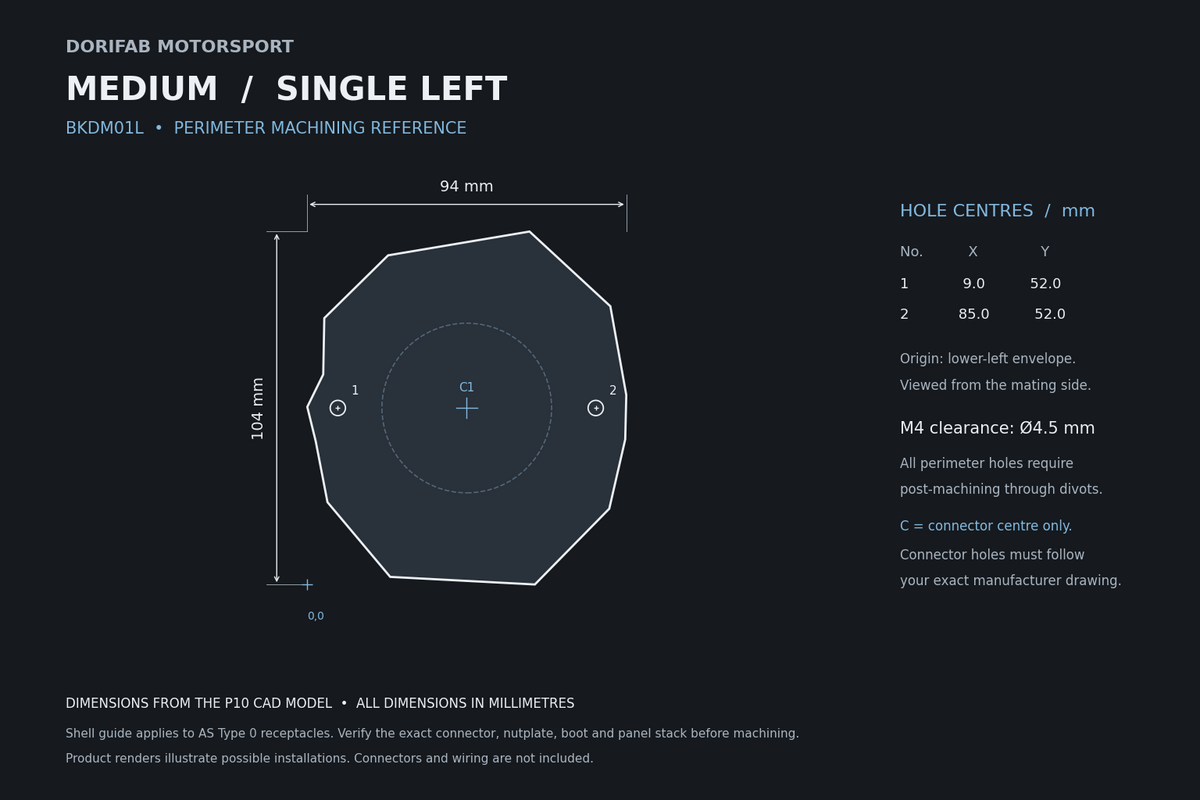

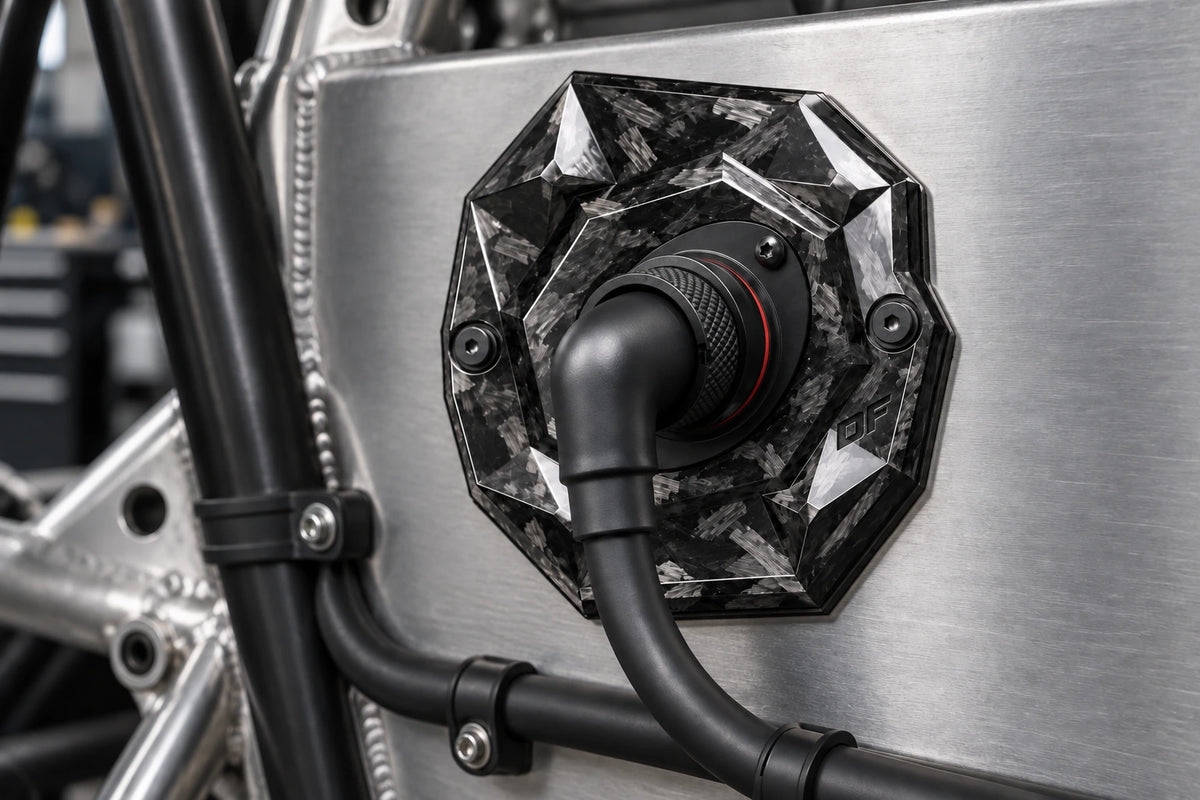

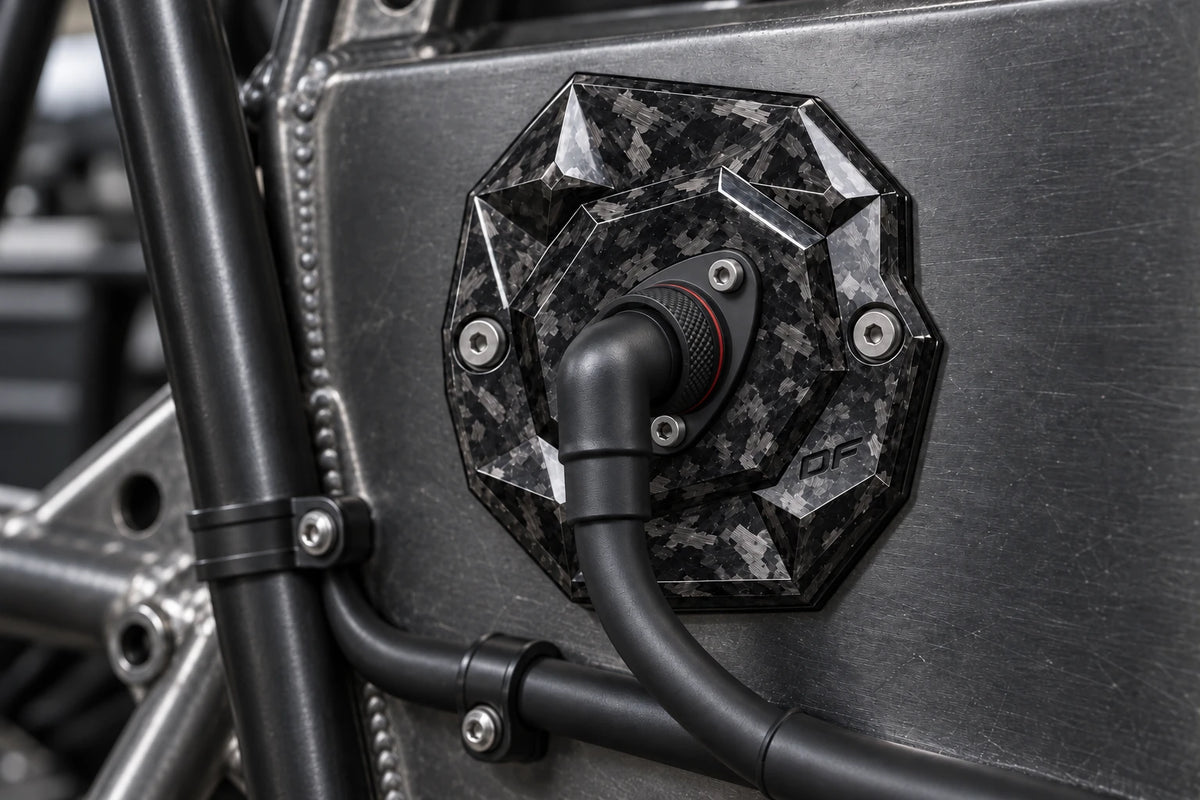

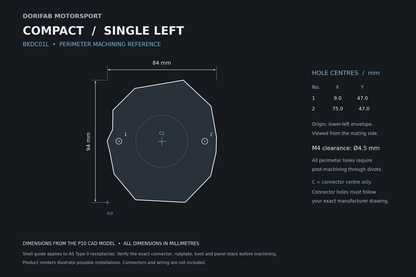

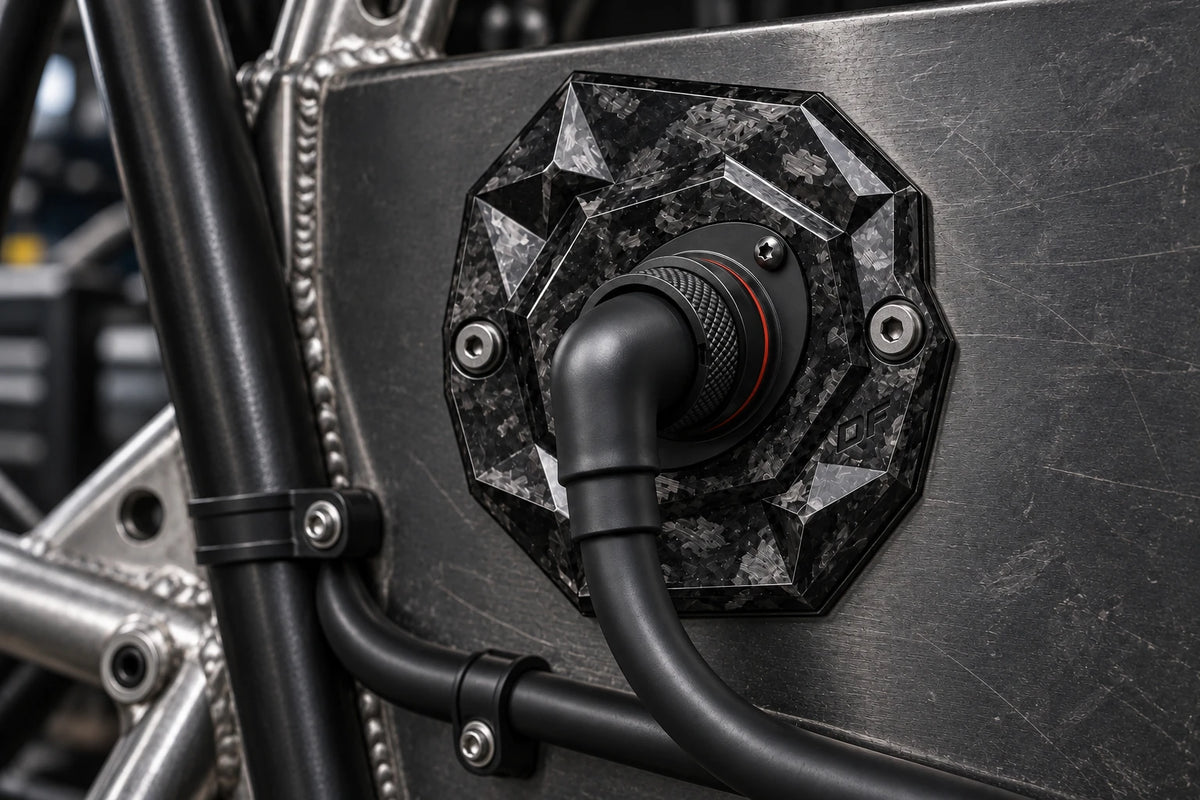

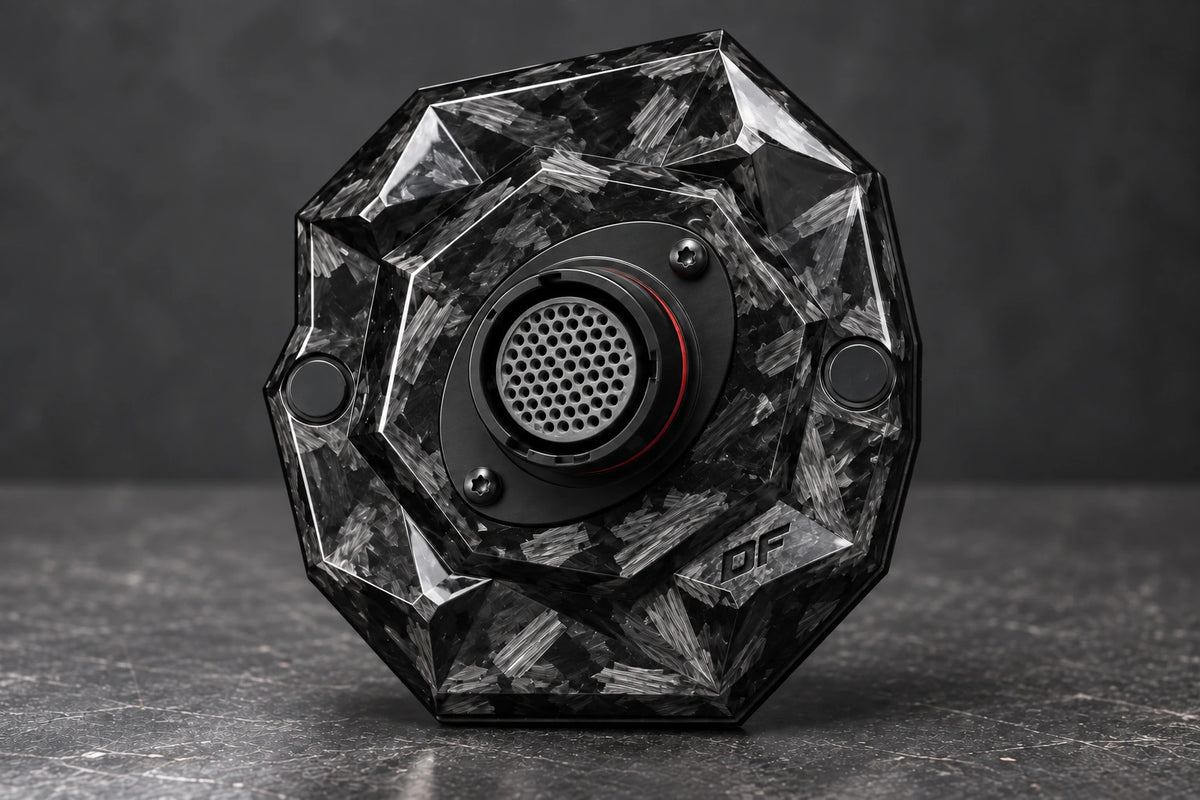

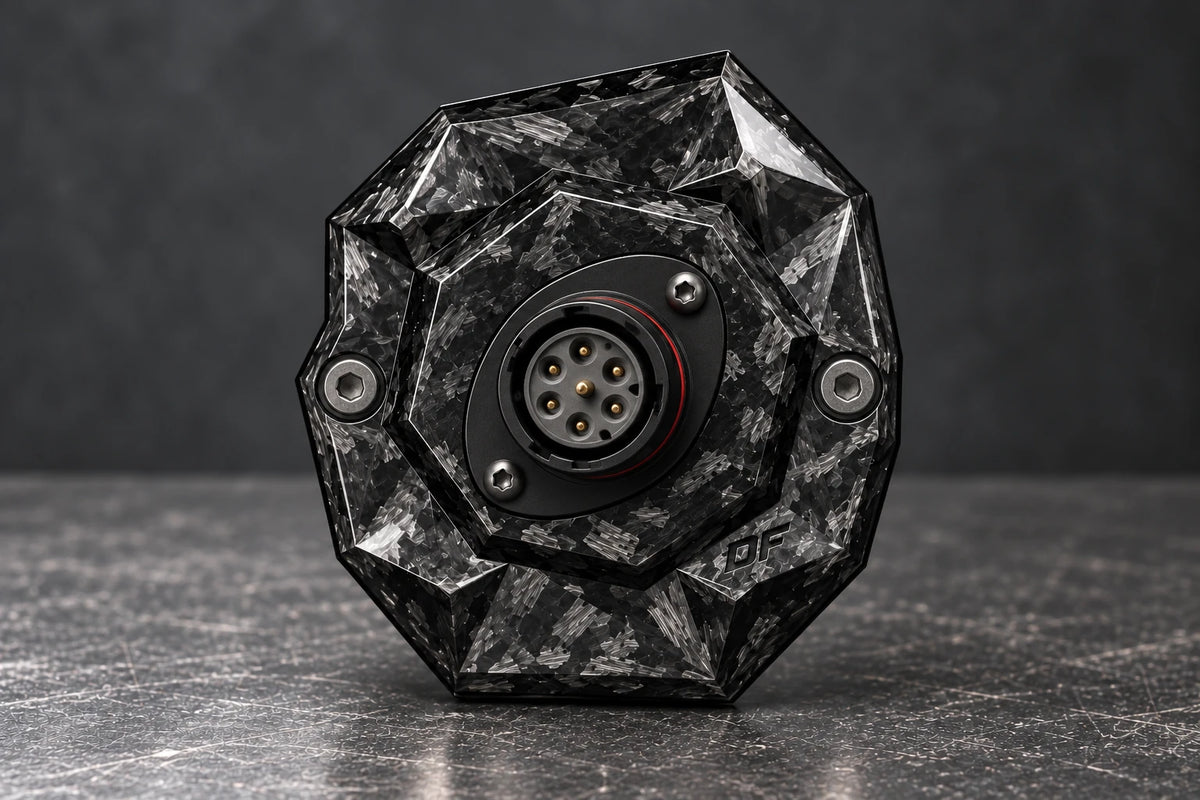

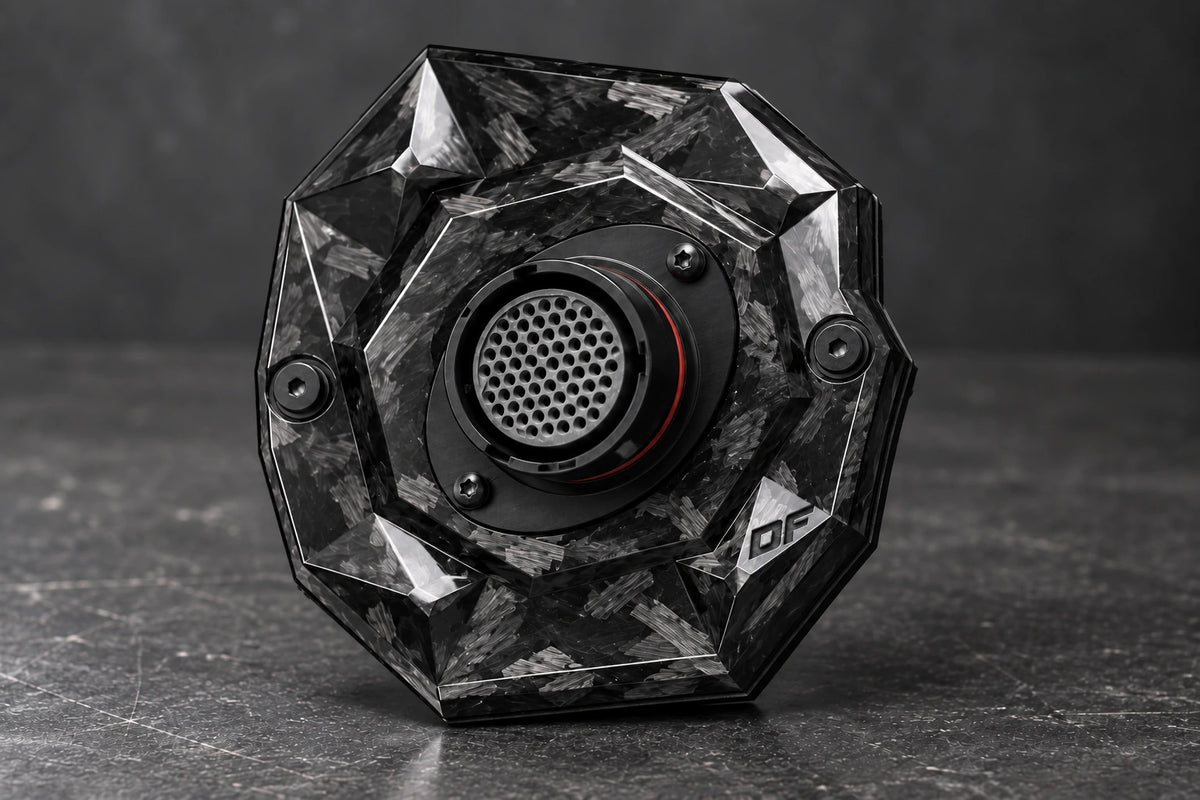

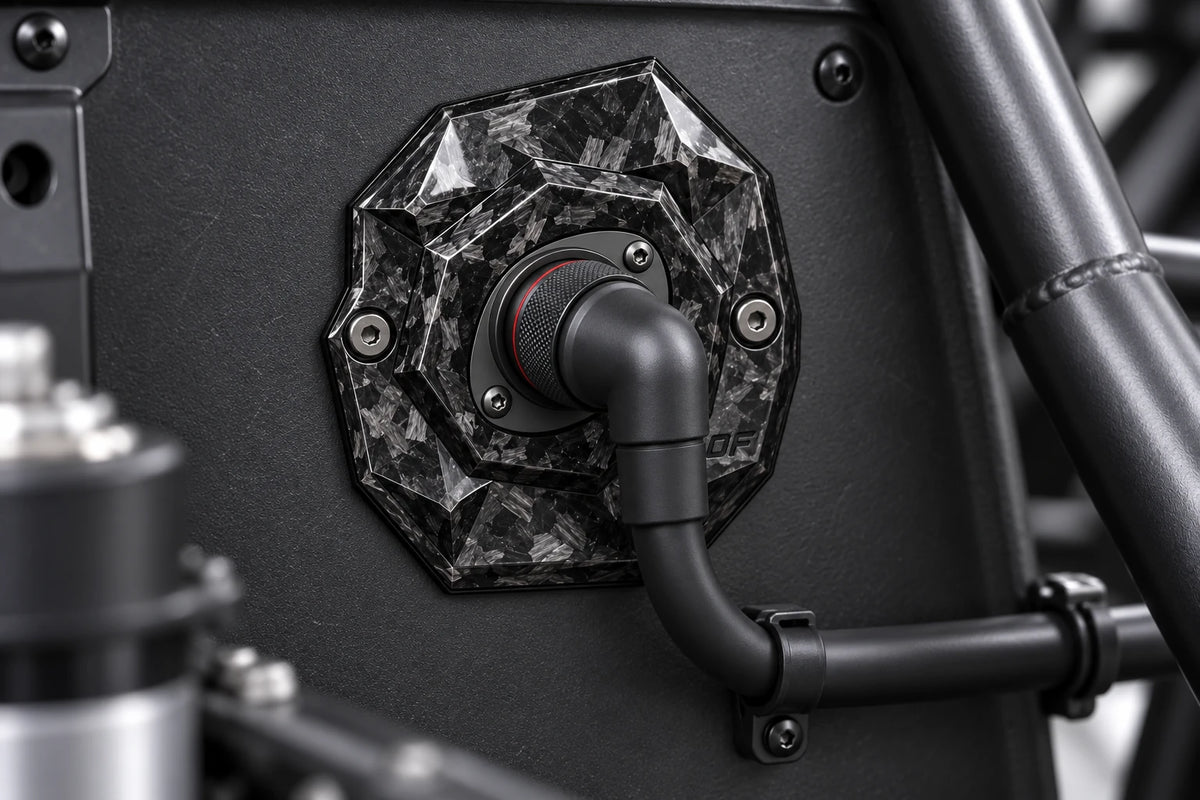

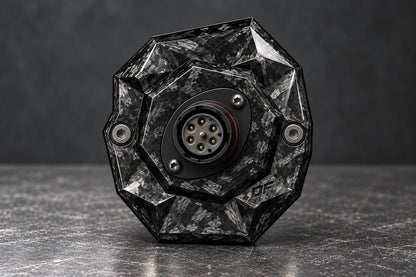

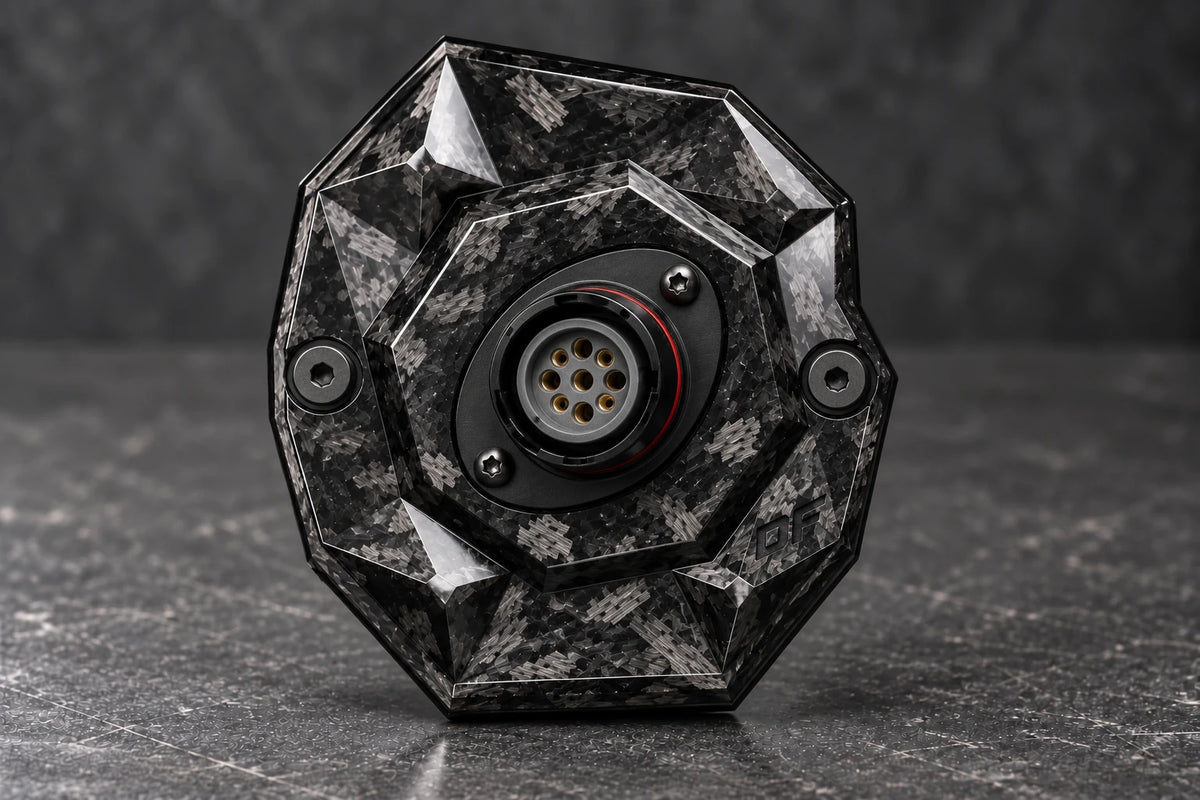

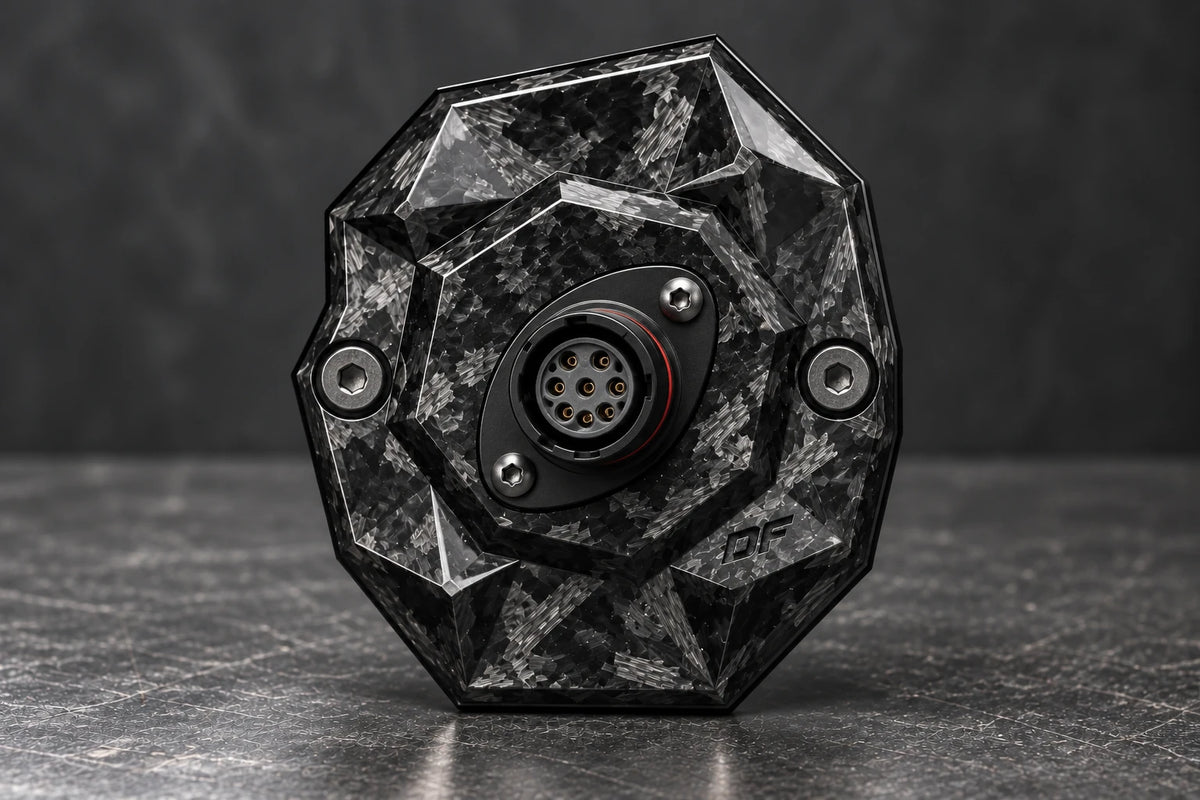

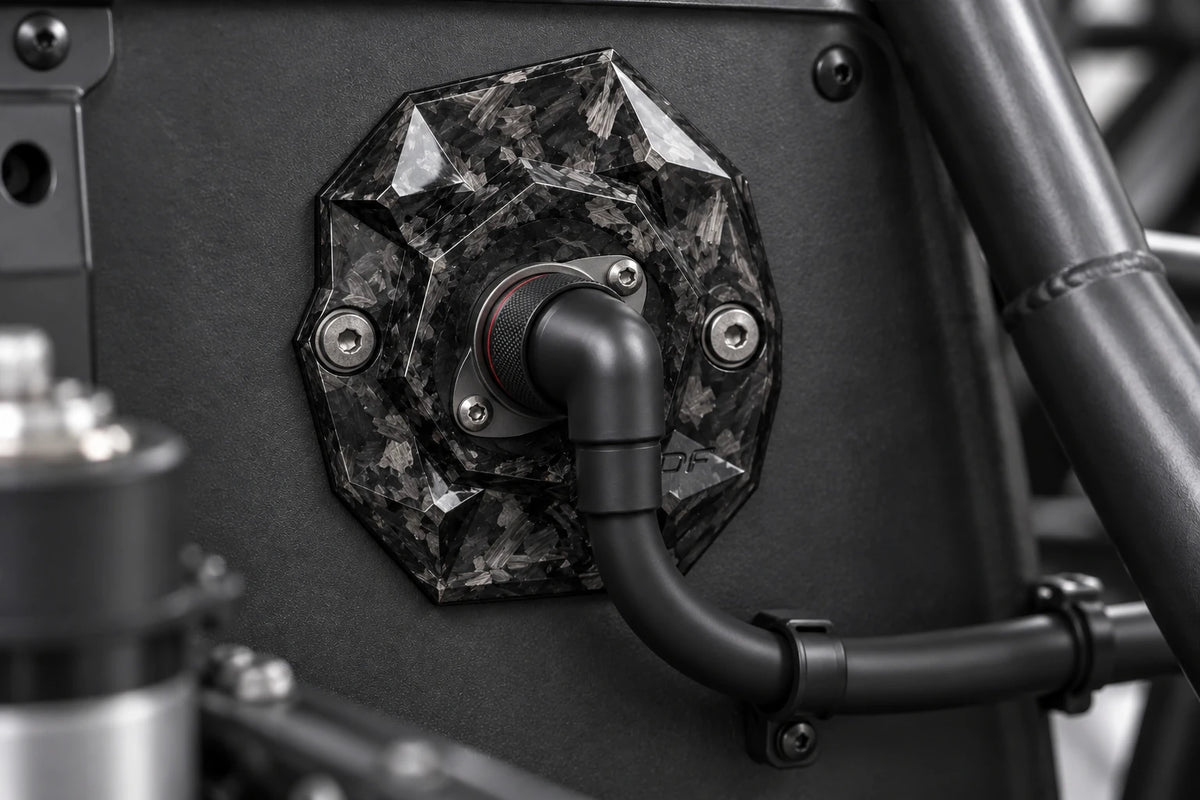

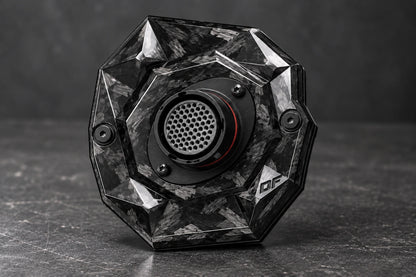

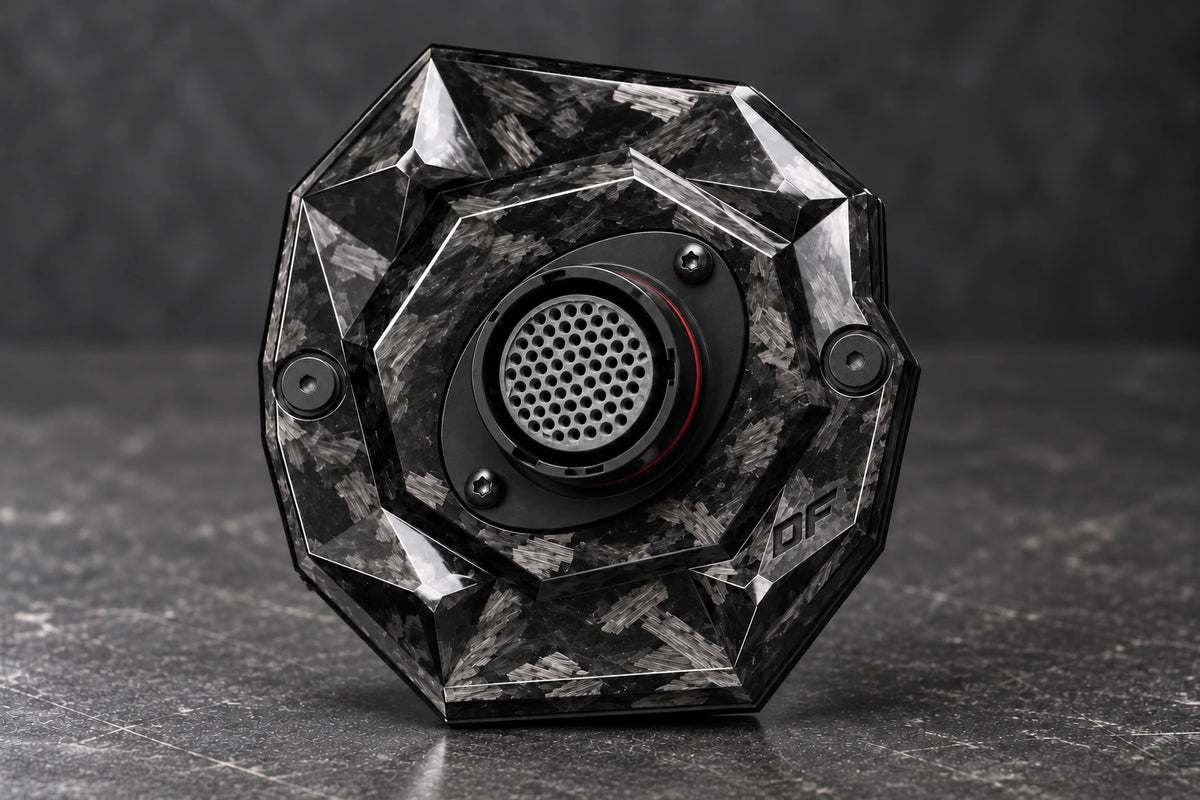

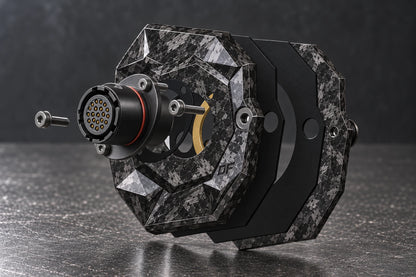

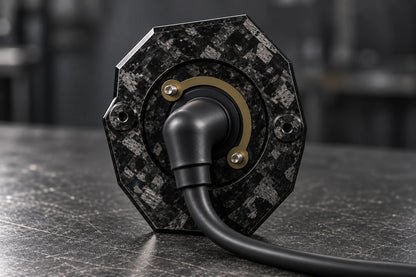

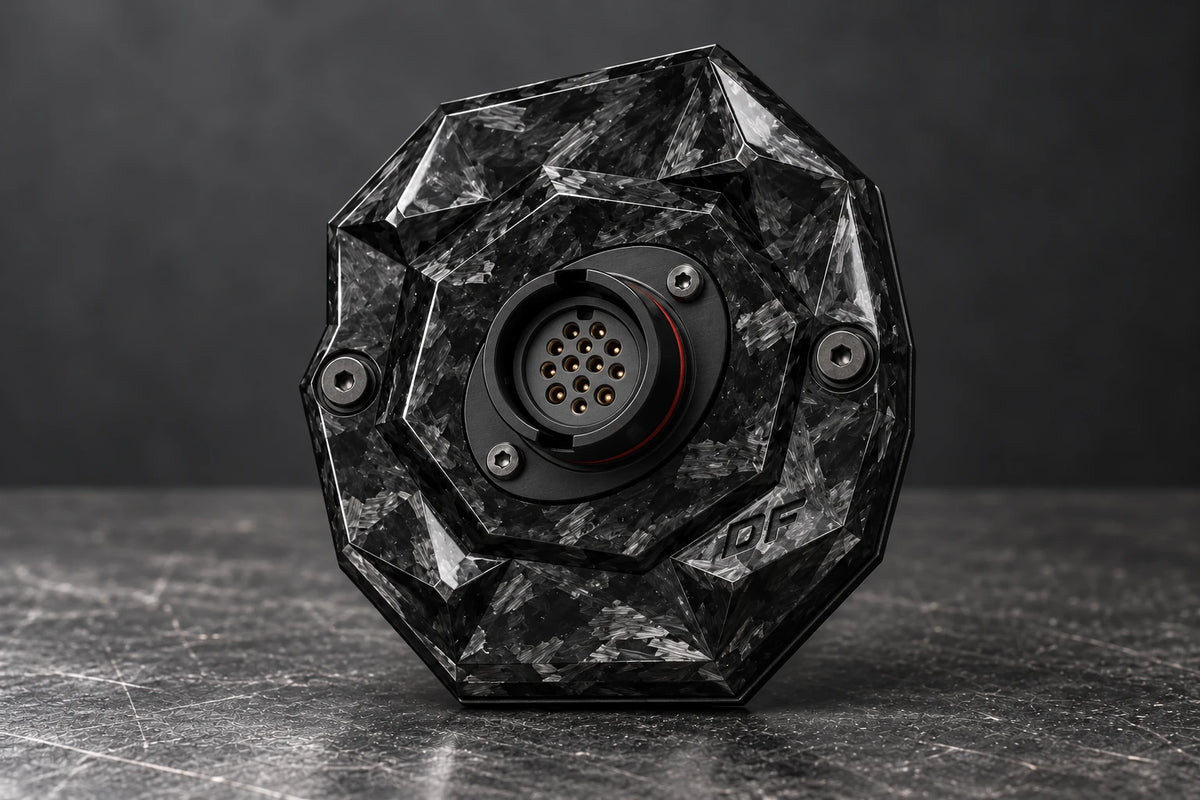

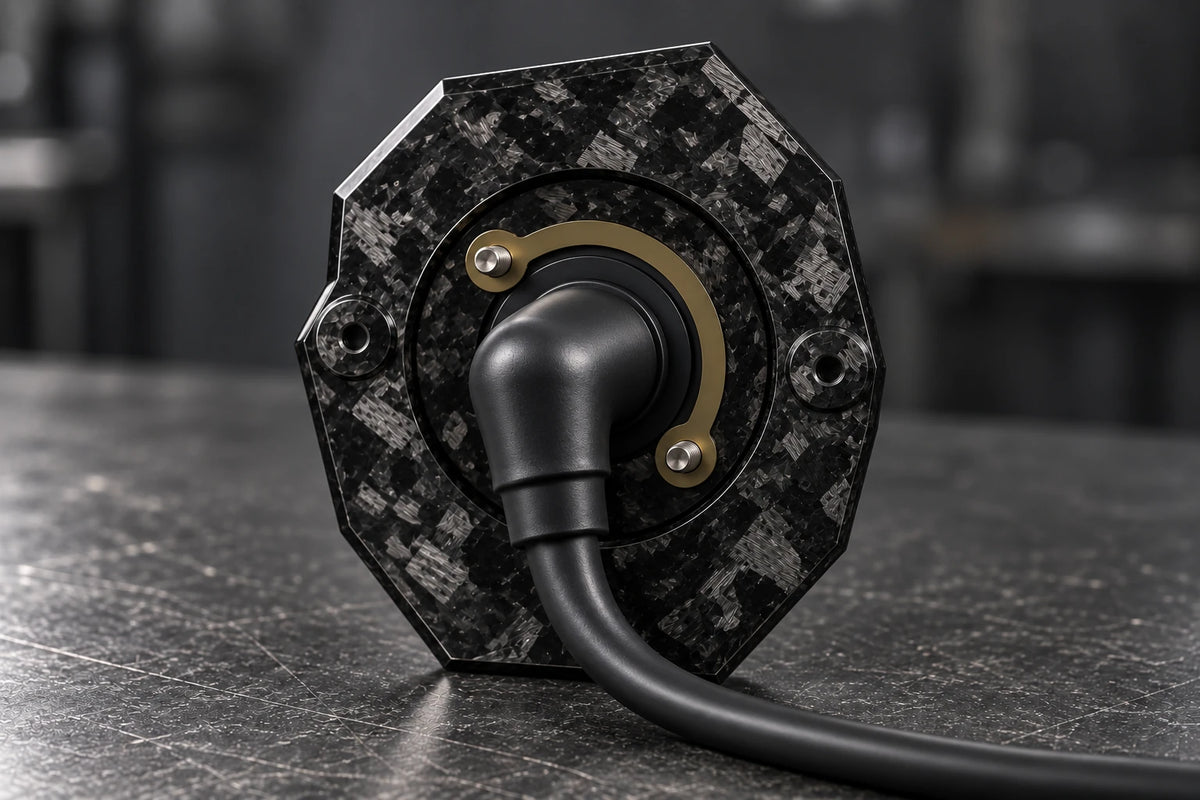

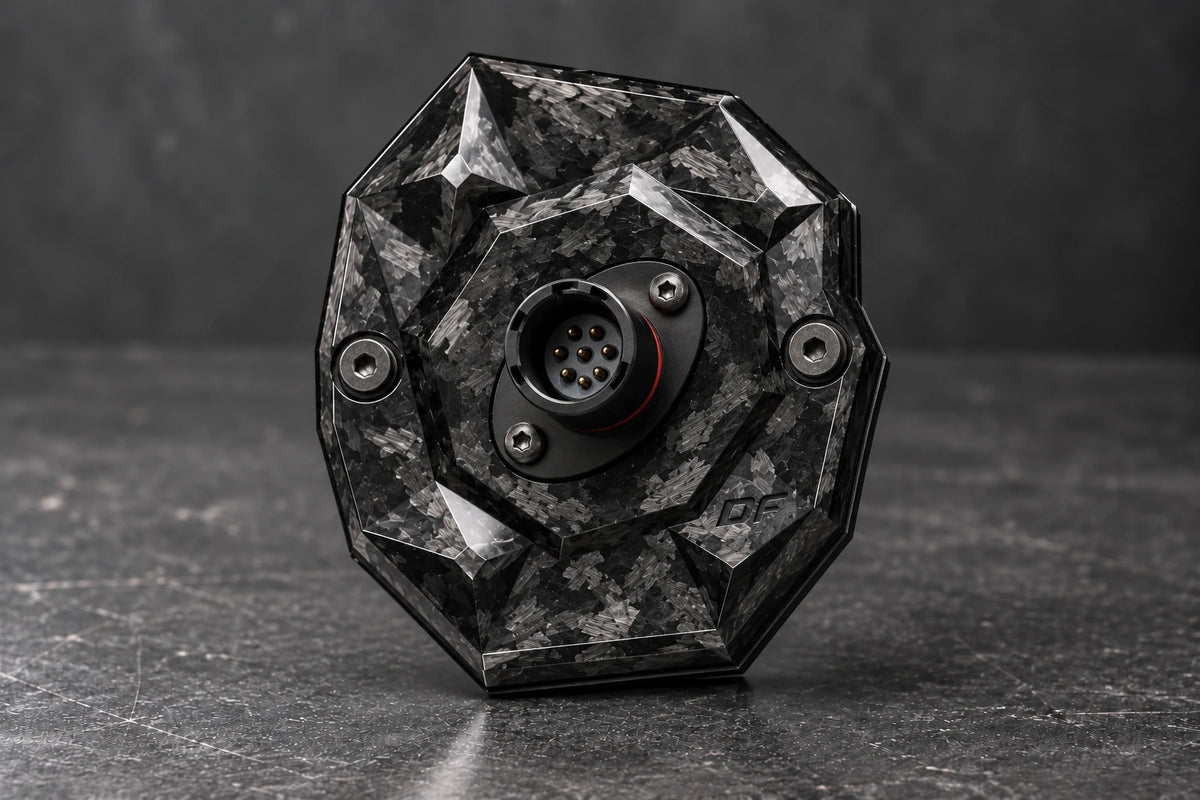

Product images are visualisations of example installations. Refer to the size-labelled CAD guides for dimensions and the blank-kit images for the supplied format. Connectors and wiring shown are illustrative and not included. The random chopped-carbon pattern varies between parts.
