Bring three loom connections into one serviceable layout.
Organise a multi-connector installation on one forged-carbon bulkhead plate. The Triple gives each connector its own mounting station, so you can plan your loom branches and disconnect points around the build.

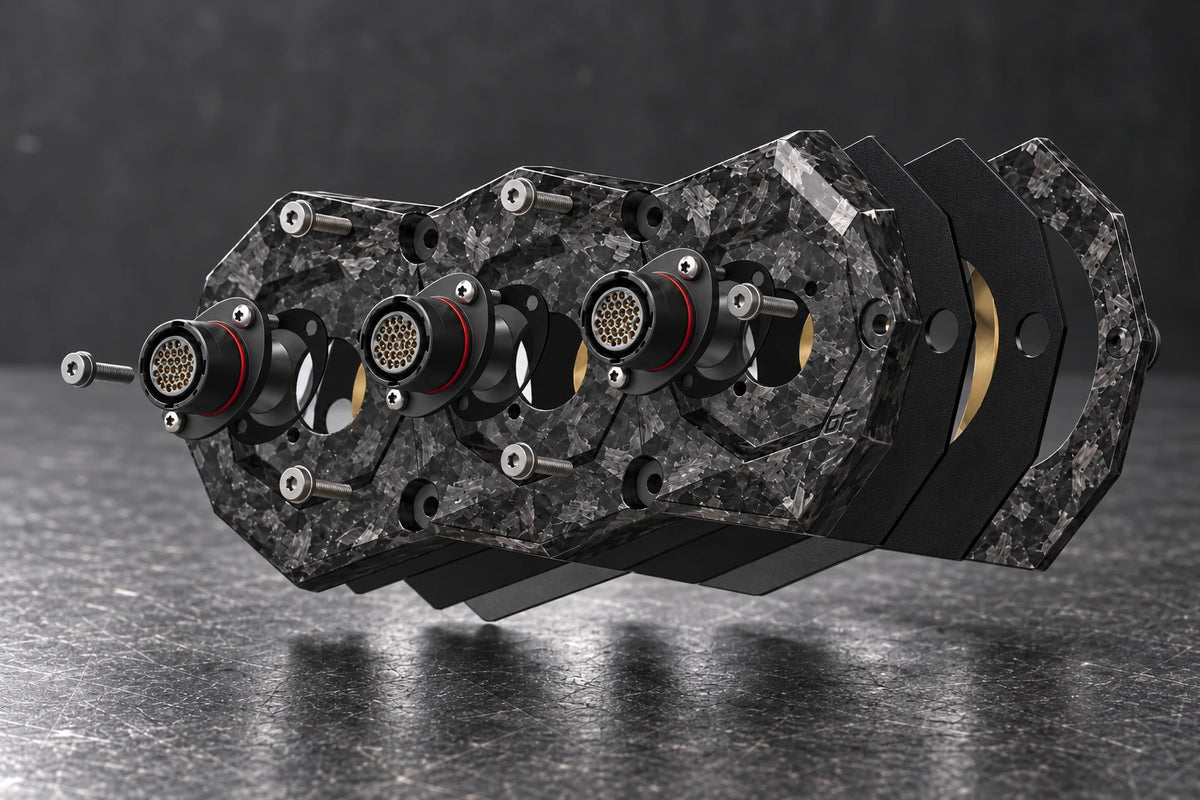

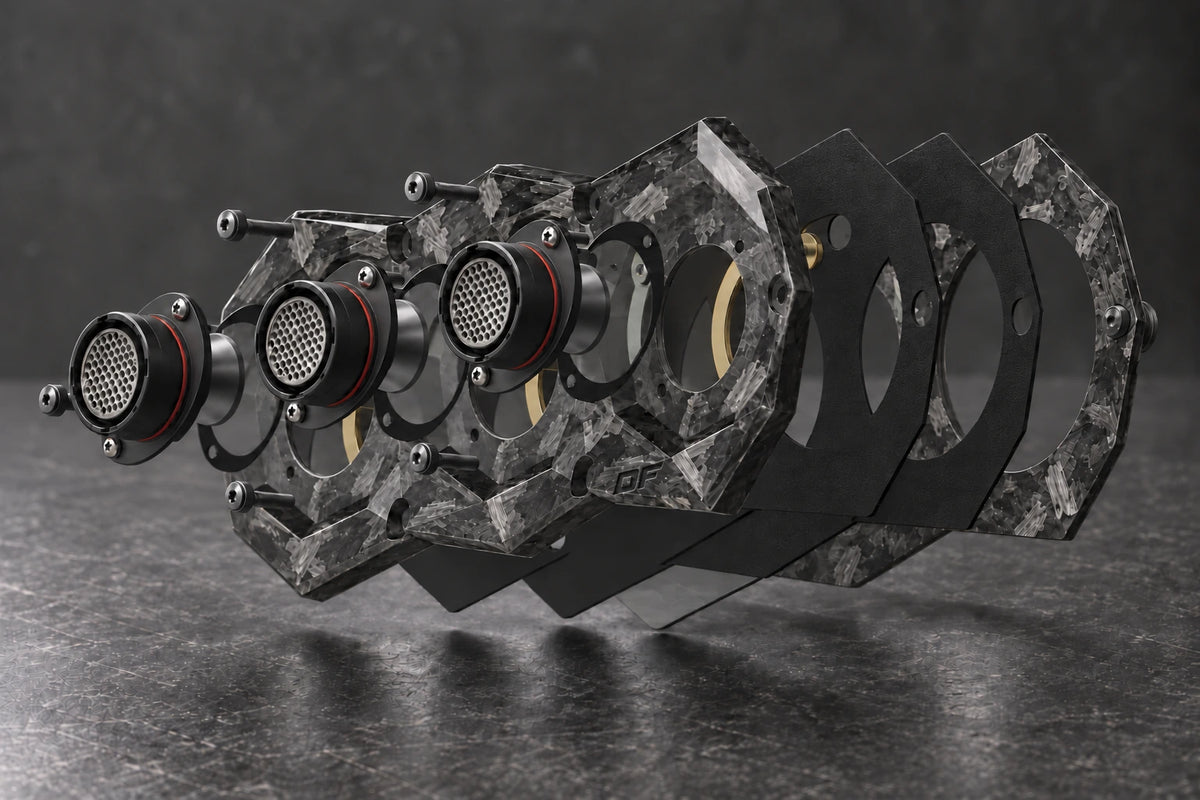

Each kit pairs a compression-moulded chopped-carbon front plate with a matching carbon backing frame, panel gaskets and perimeter mounting hardware.
Supplied as a blank kit requiring machining. Connectors are not included.
Choose the right size for your build
Start with your connector shell size, then check the overall plate footprint against your mounting area. Compact, Medium and Large share the same approach to installation, with different seat sizes and spacing.

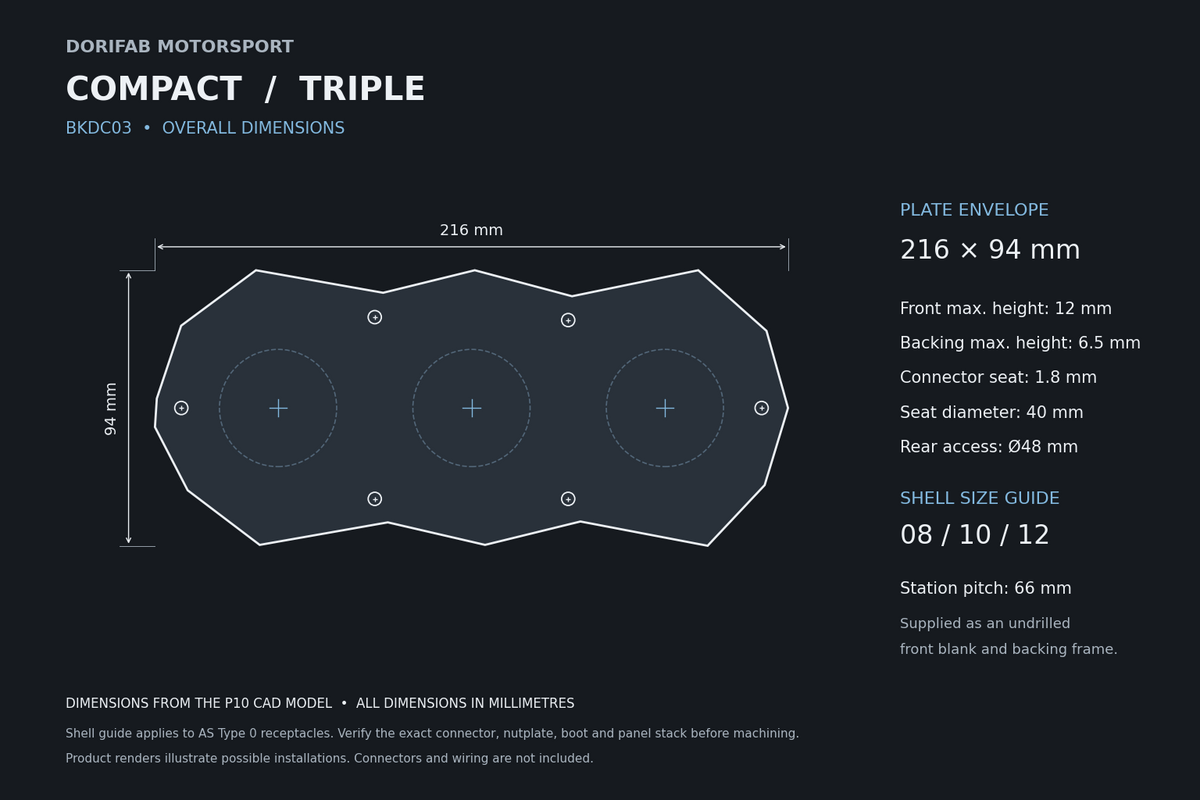

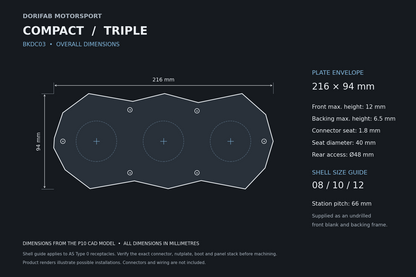

| Size | AS Type 0 shell guide | Plate footprint (W × H) | Connector centre spacing |
|---|---|---|---|
| Compact | 08, 10, 12 | 216 × 94 mm | 66 mm |
| Medium | 14, 16, 18 | 246 × 104 mm | 76 mm |

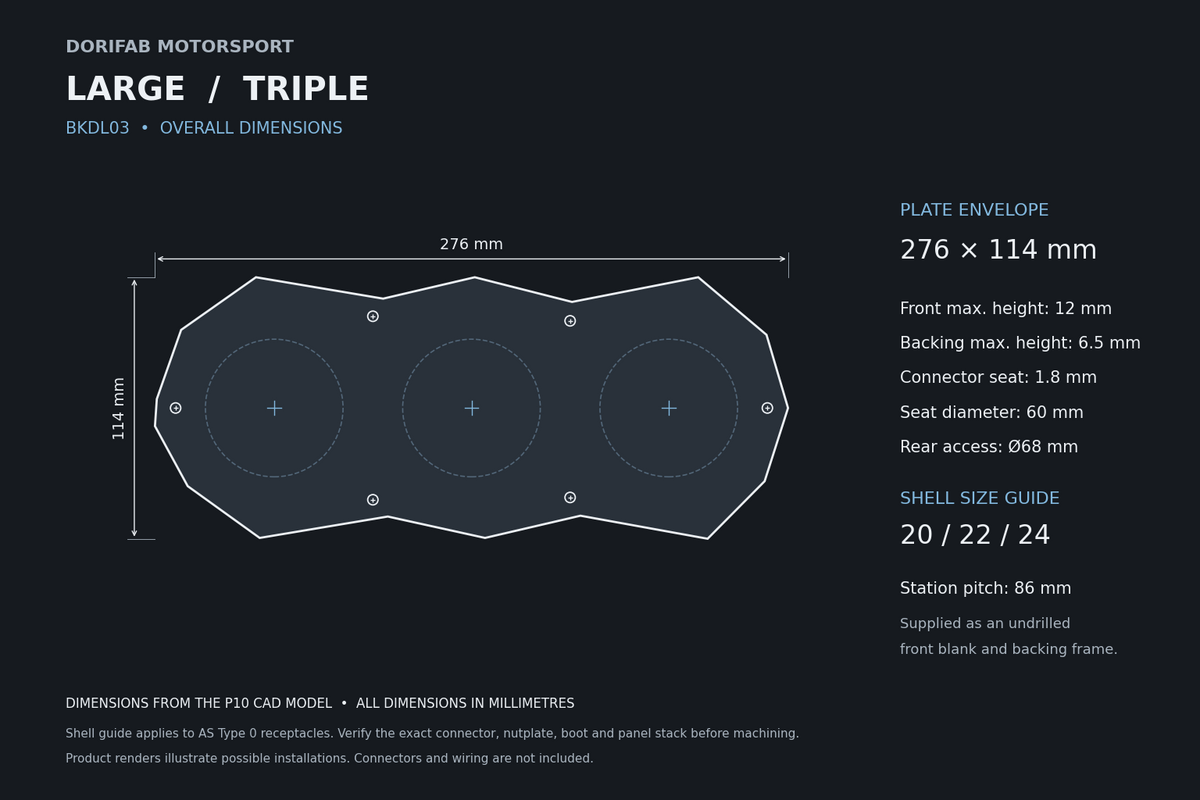

| Large | 20, 22, 24 | 276 × 114 mm | 86 mm |
Shell size is not the contact count. Check the shell designation in your connector part number. Allow room behind the panel for the matching ATM396 nutplate, connector boot and loom bend.

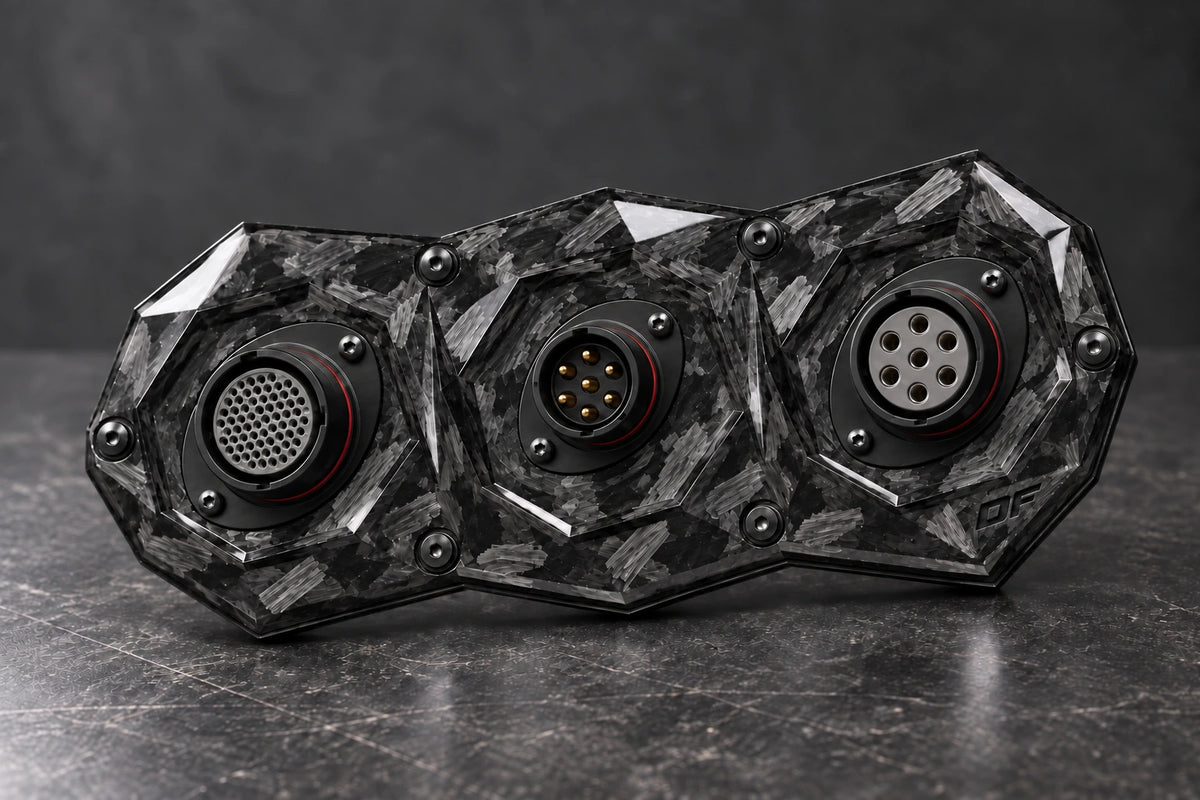

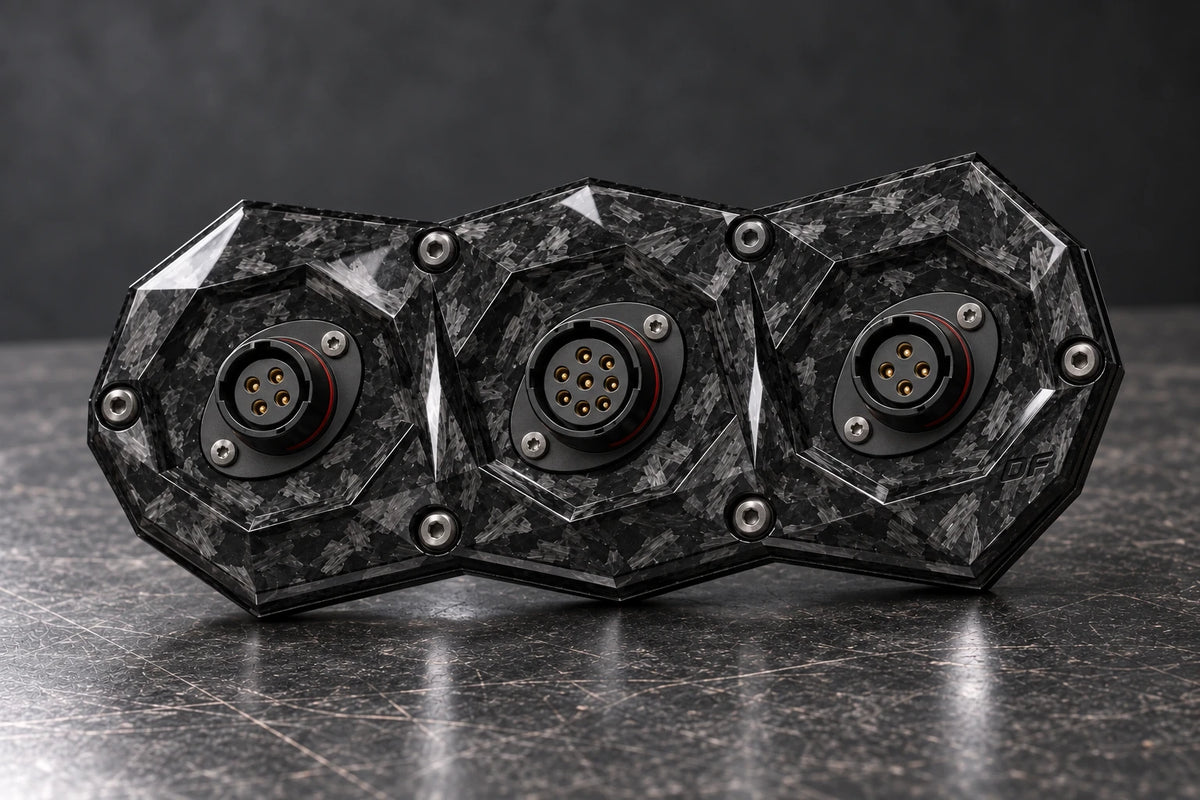

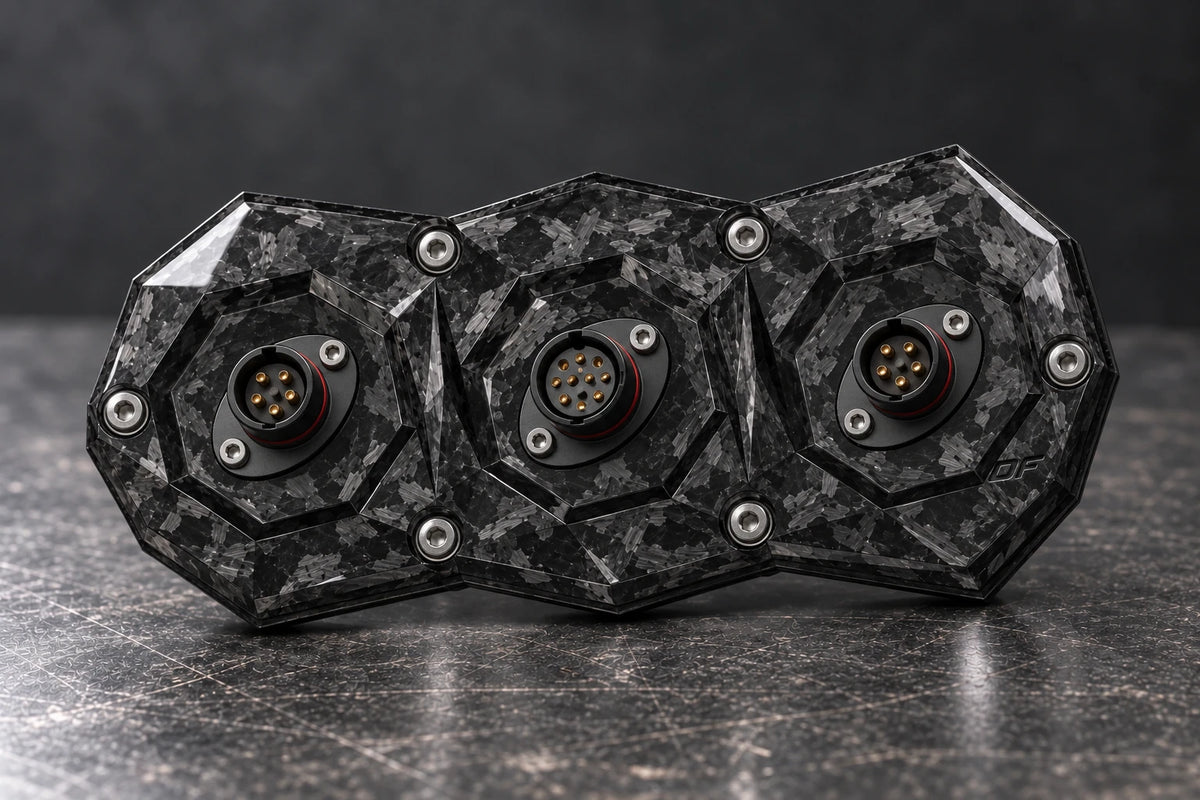

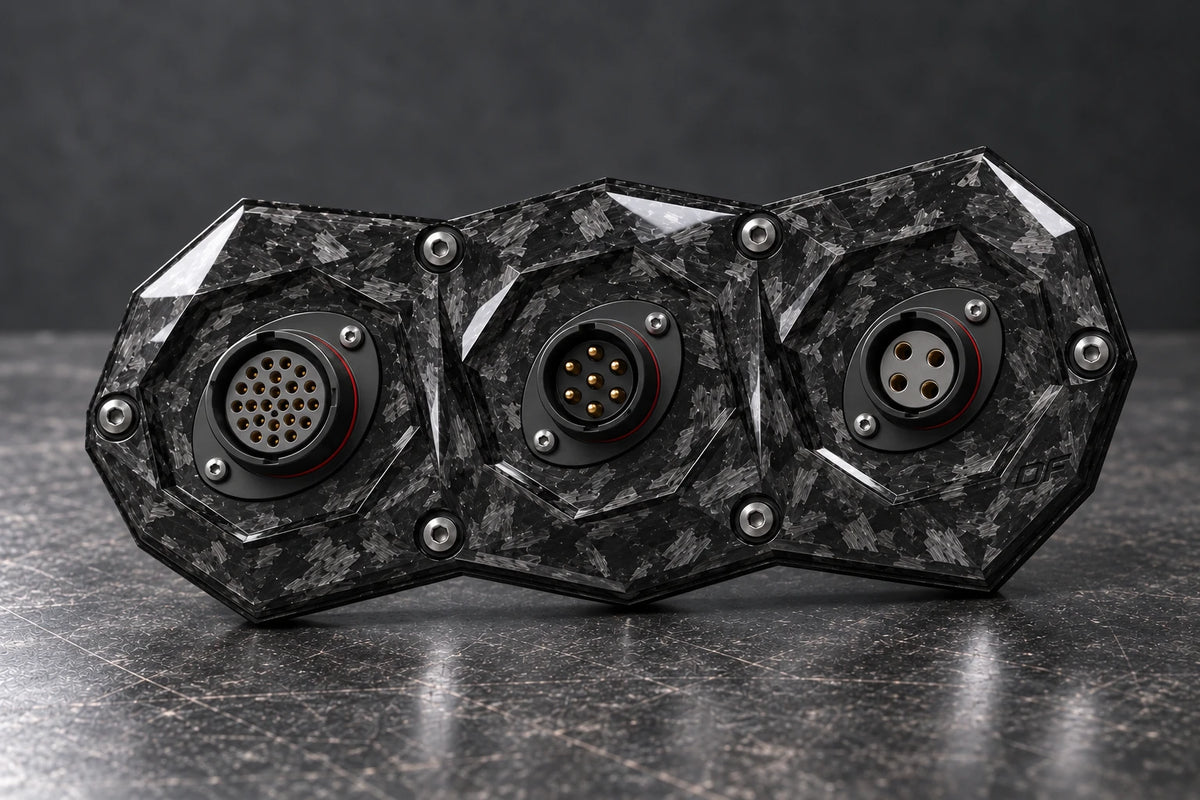

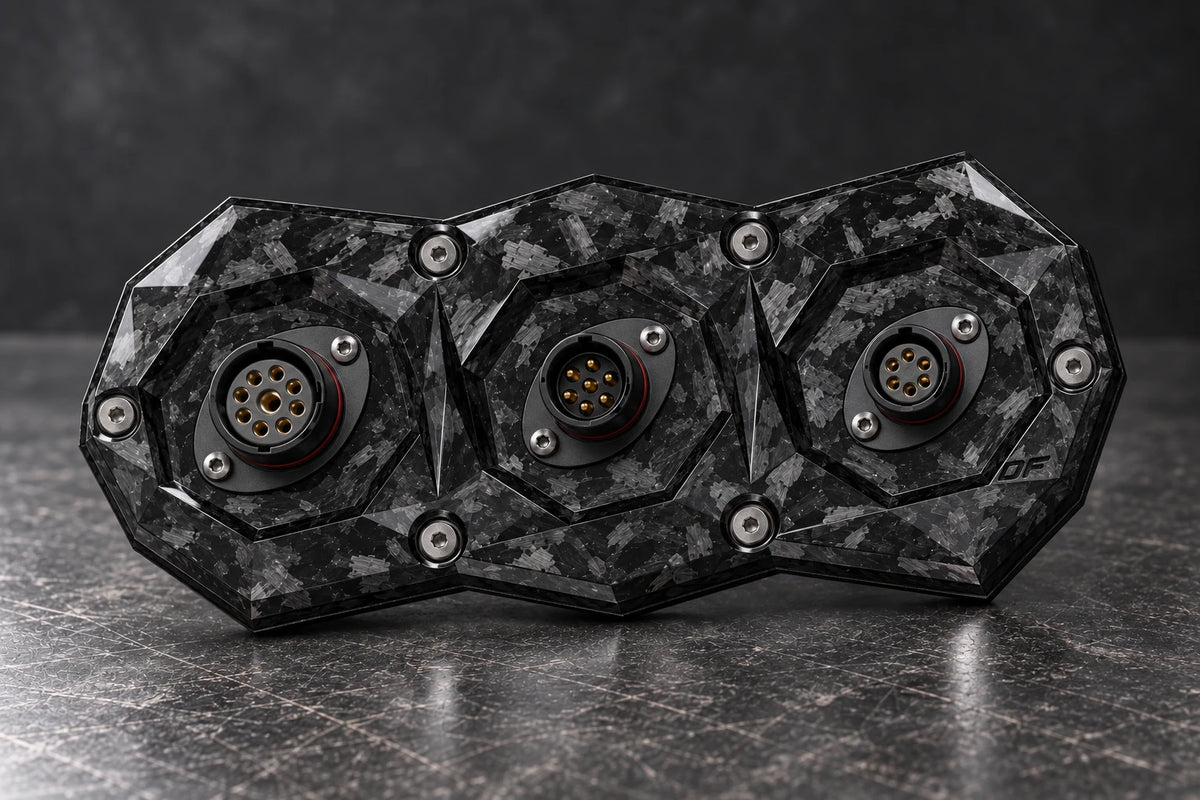

Using different connector sizes on the same plate? Choose the range around your largest shell, then check every connector, nutplate and boot against the seat and spacing dimensions. The blank front lets you machine each station for its selected hardware.
What comes in the box
- One forged-carbon front blank in your selected size.
- One matching forged-carbon backing frame.
- Panel gaskets.
- Perimeter mounting hardware.
Check fitment before ordering
Designed around Deutsch Autosport AS Type 0 receptacles and the matching ATM396 nutplates. Use the size guide as a starting point, then confirm fitment from the exact manufacturer drawings for your selected hardware. Check the panel space, rear access and loom route before committing to the layout.
What installation involves

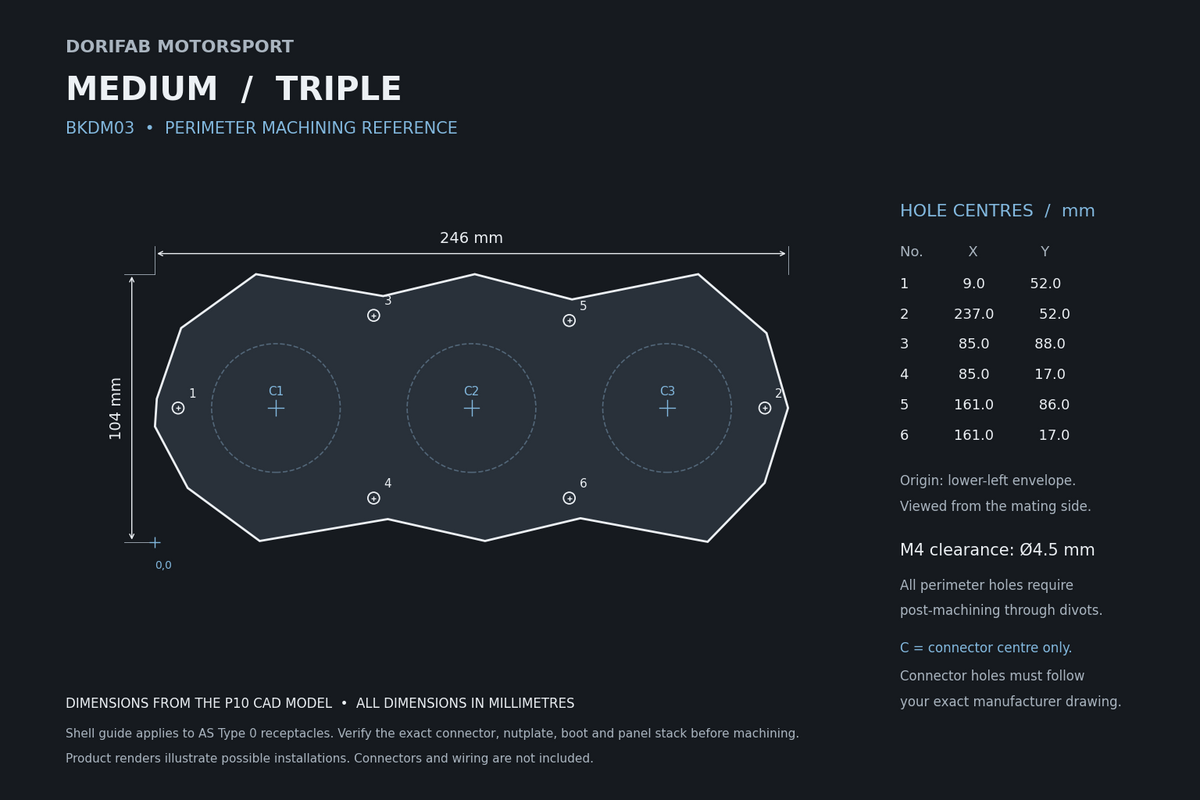

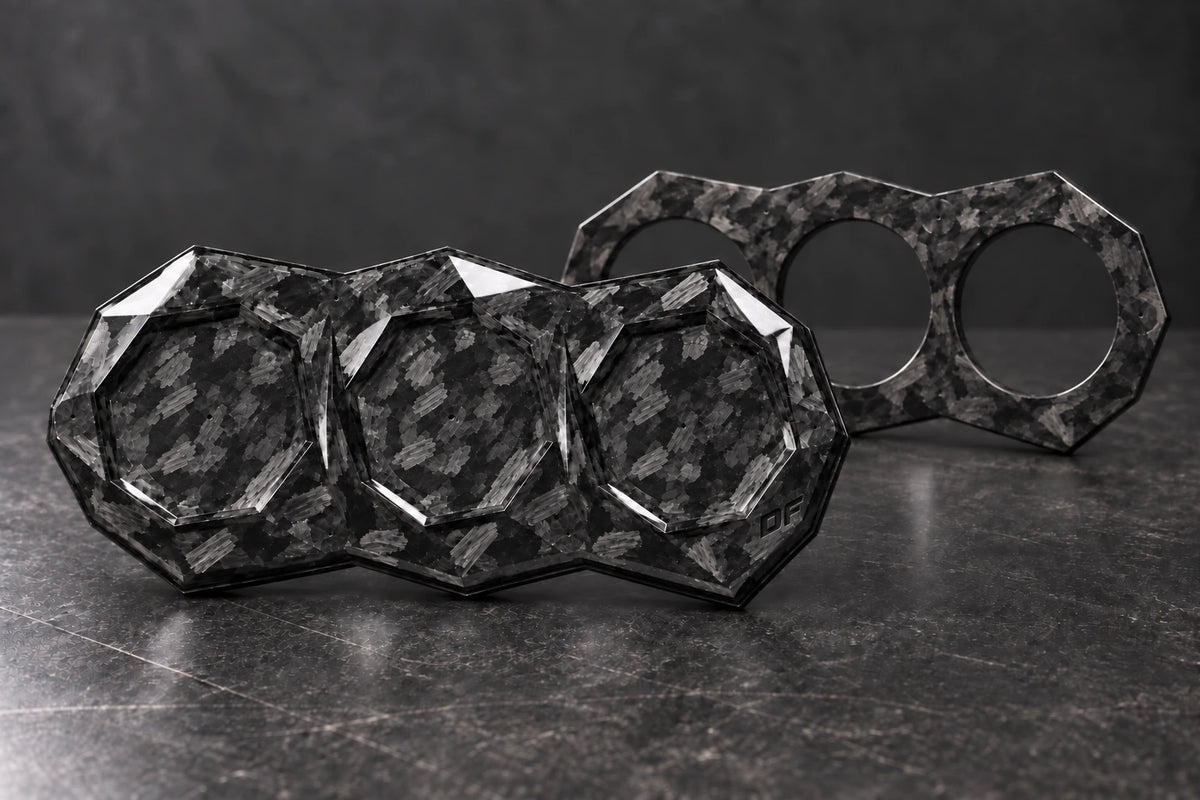

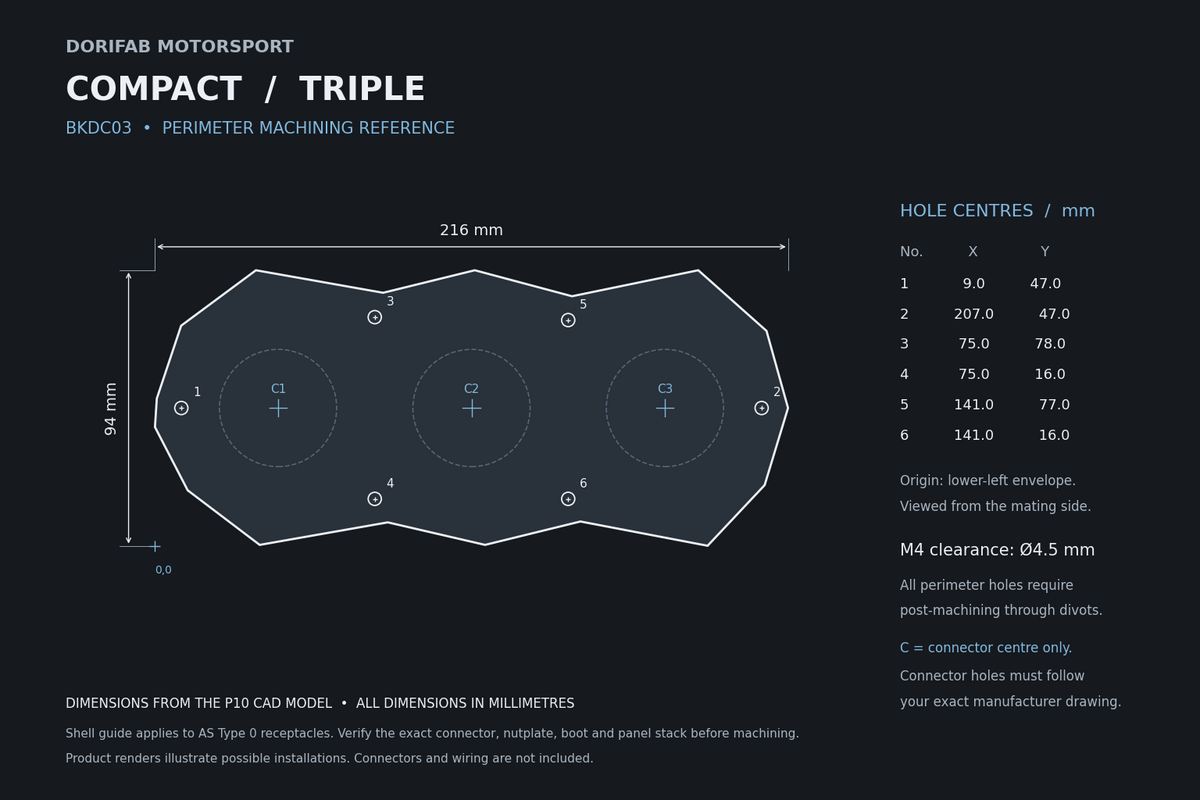

The front arrives with solid connector seats and centre marks. The backing frame has access openings. Connector openings, connector flange holes and perimeter mounting holes require post-machining to suit your installation. Retain the factory connector fixing orientation and use the drawing for your exact shell to set the cut-out and hole pattern.
What else will I need?
Your chosen connectors and contacts, corresponding ATM396 nutplates, connector boots and wiring loom. Connectors, nutplates, boots, loom and connector-specific machining are not included.
Need a different connector count? Compare the Single or Dual.
Need help choosing? Send us your connector part numbers and a photo of the mounting area before ordering.

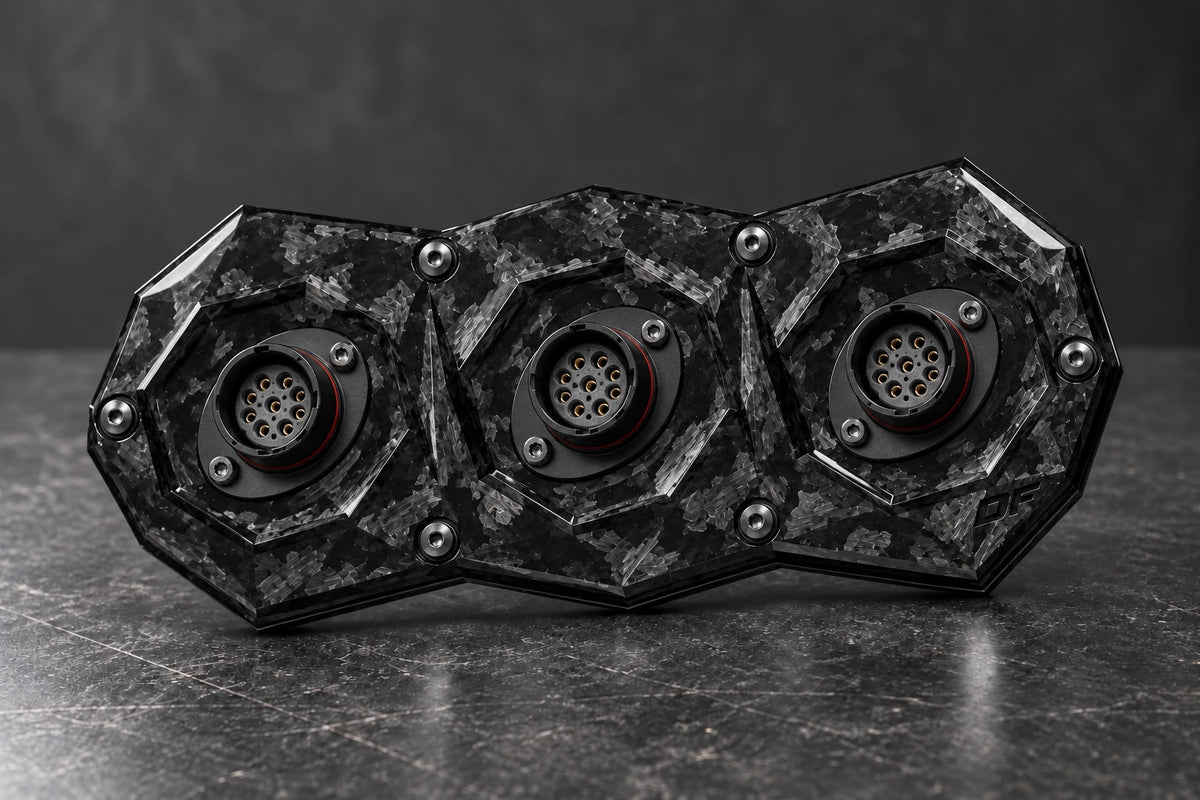

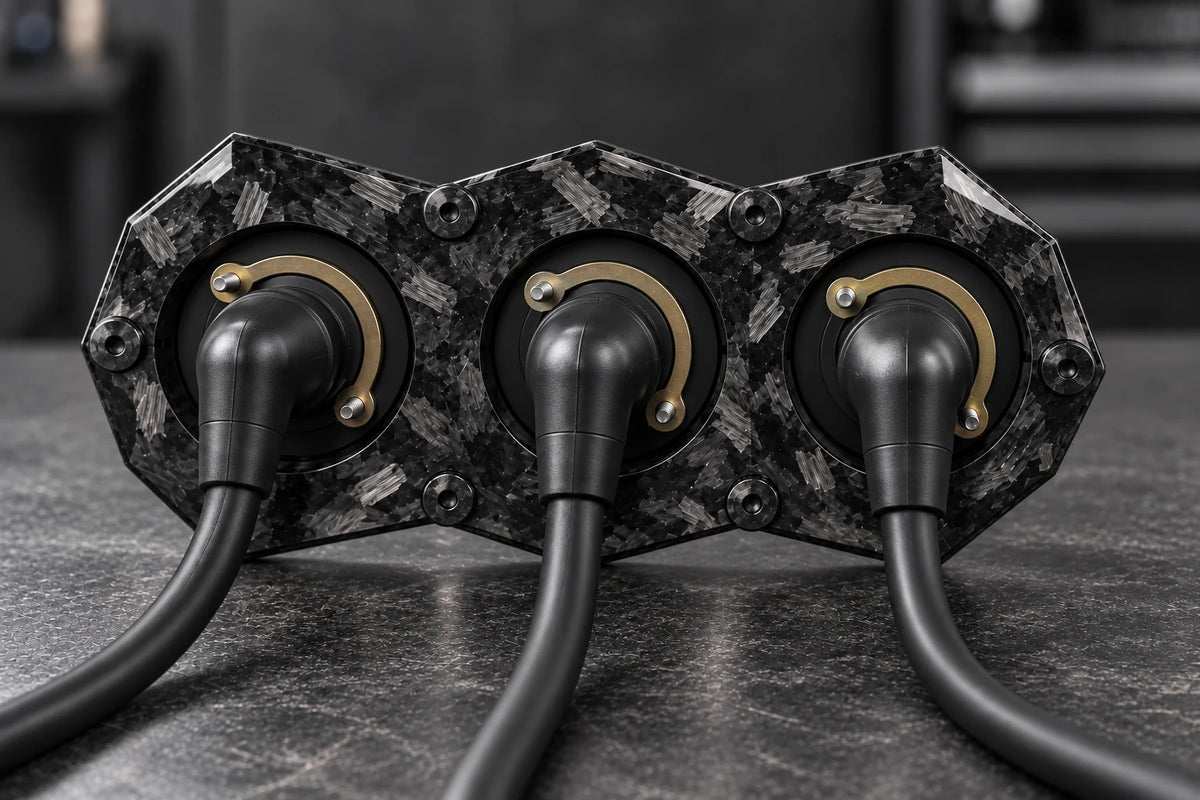

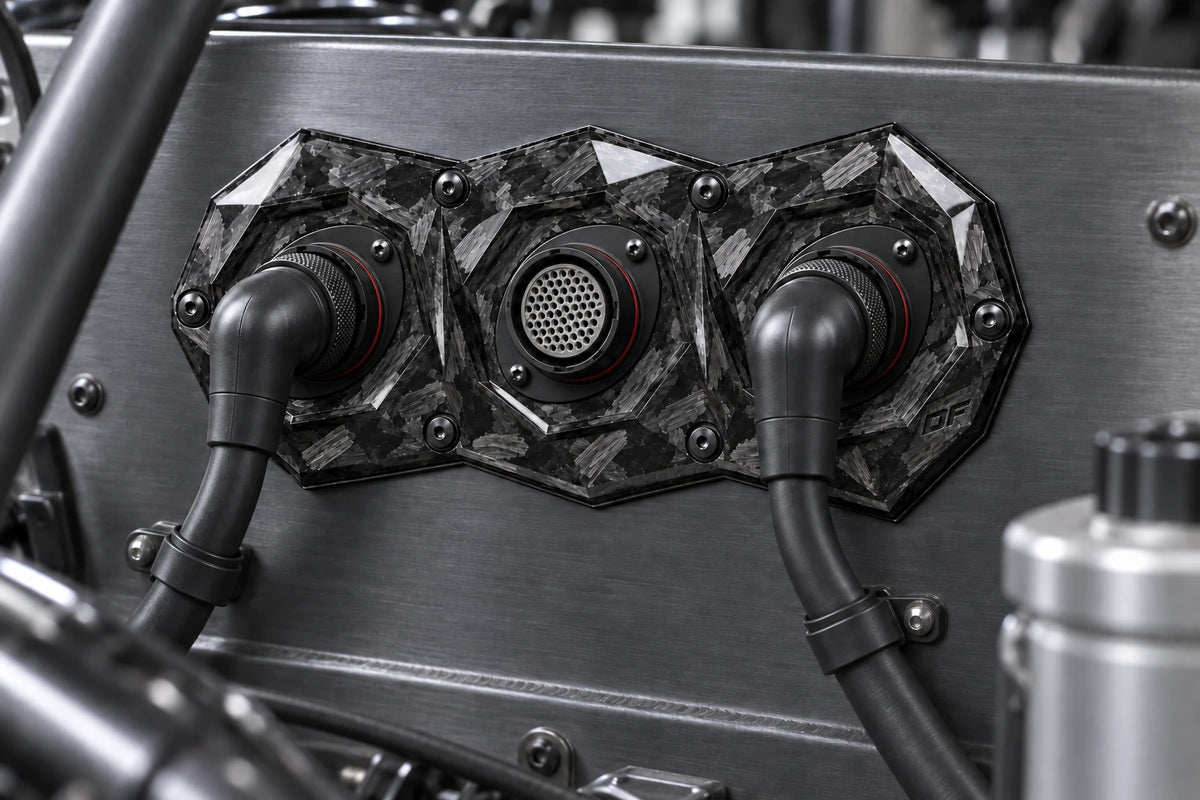

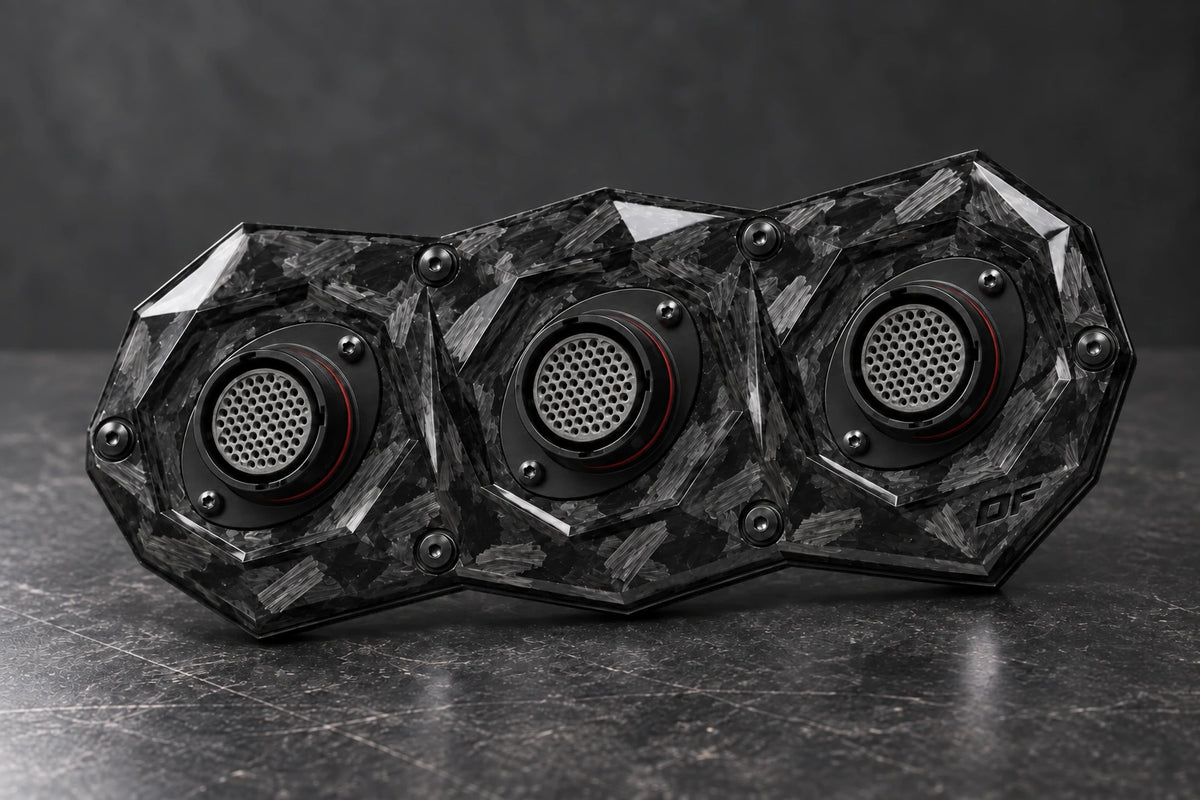

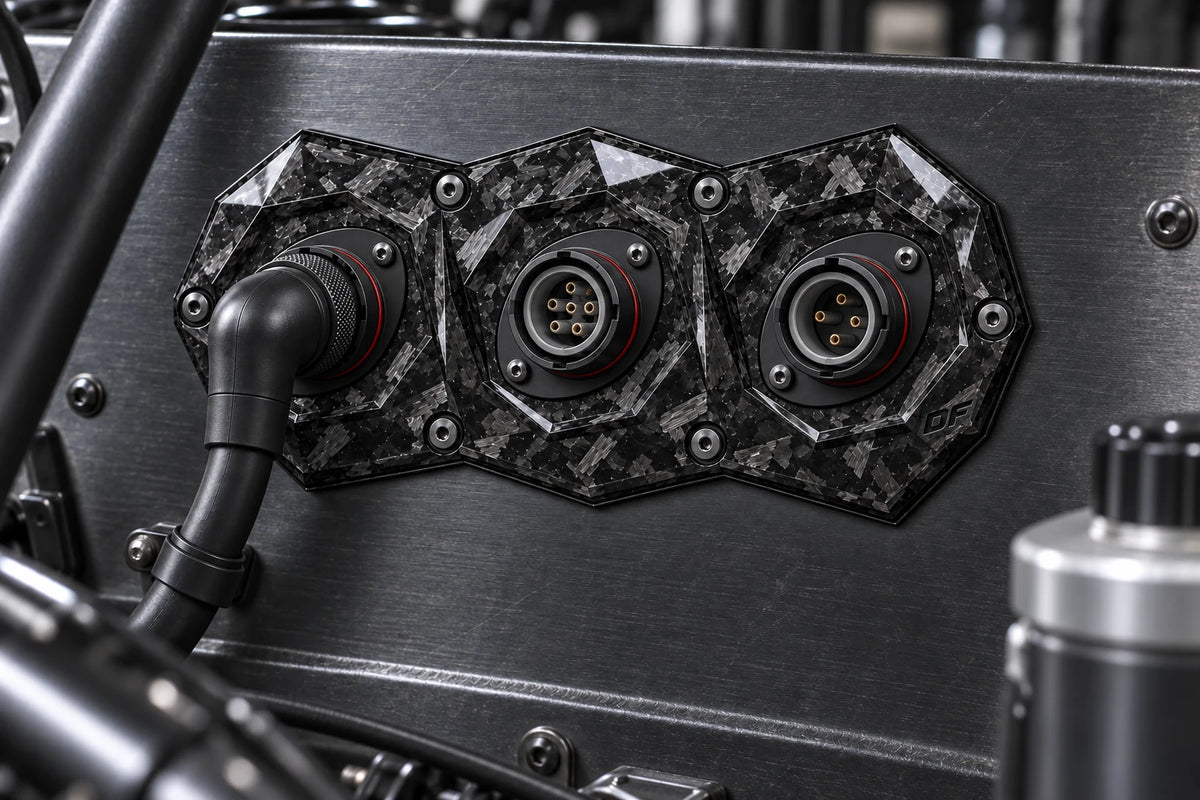

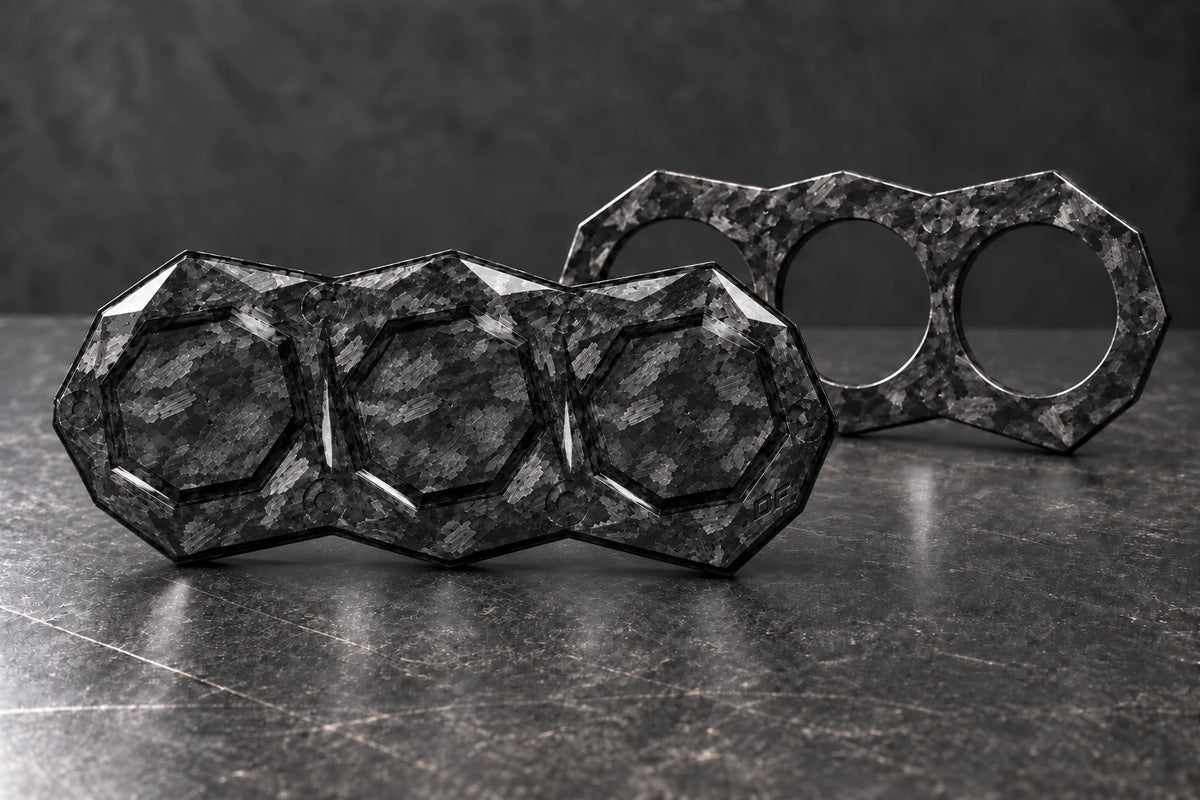

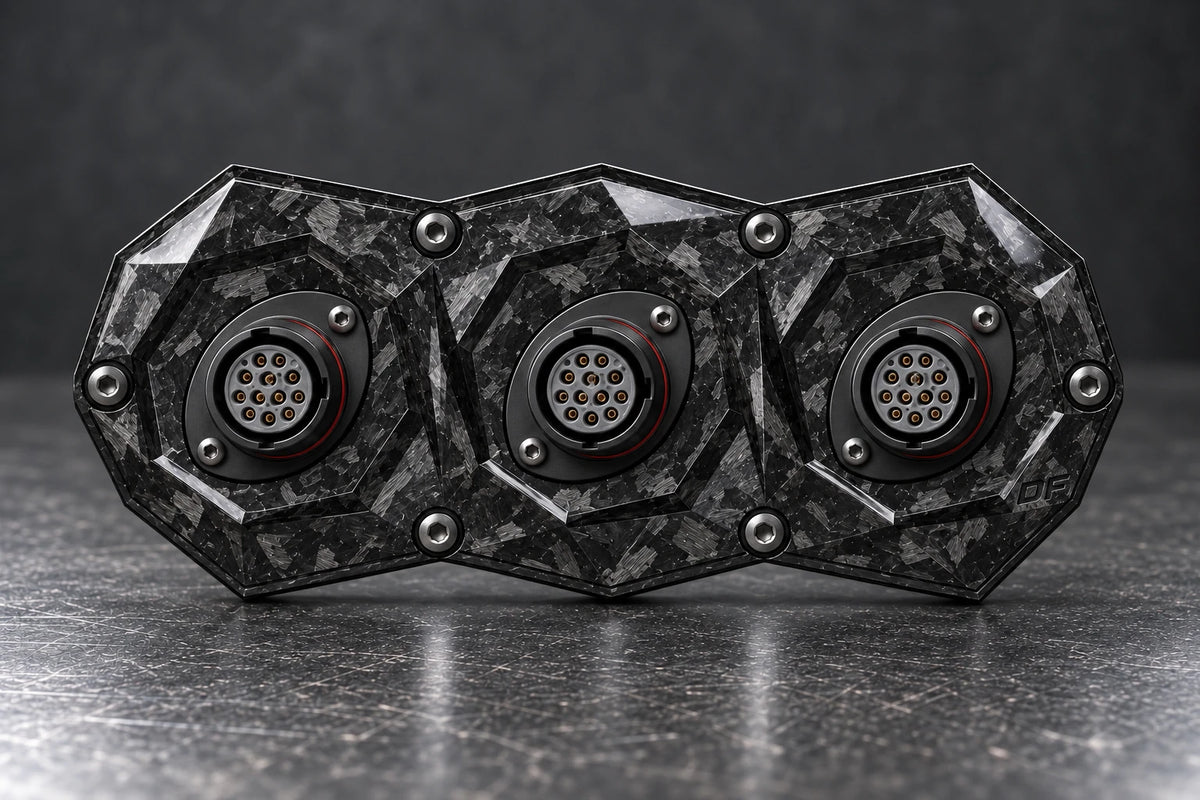

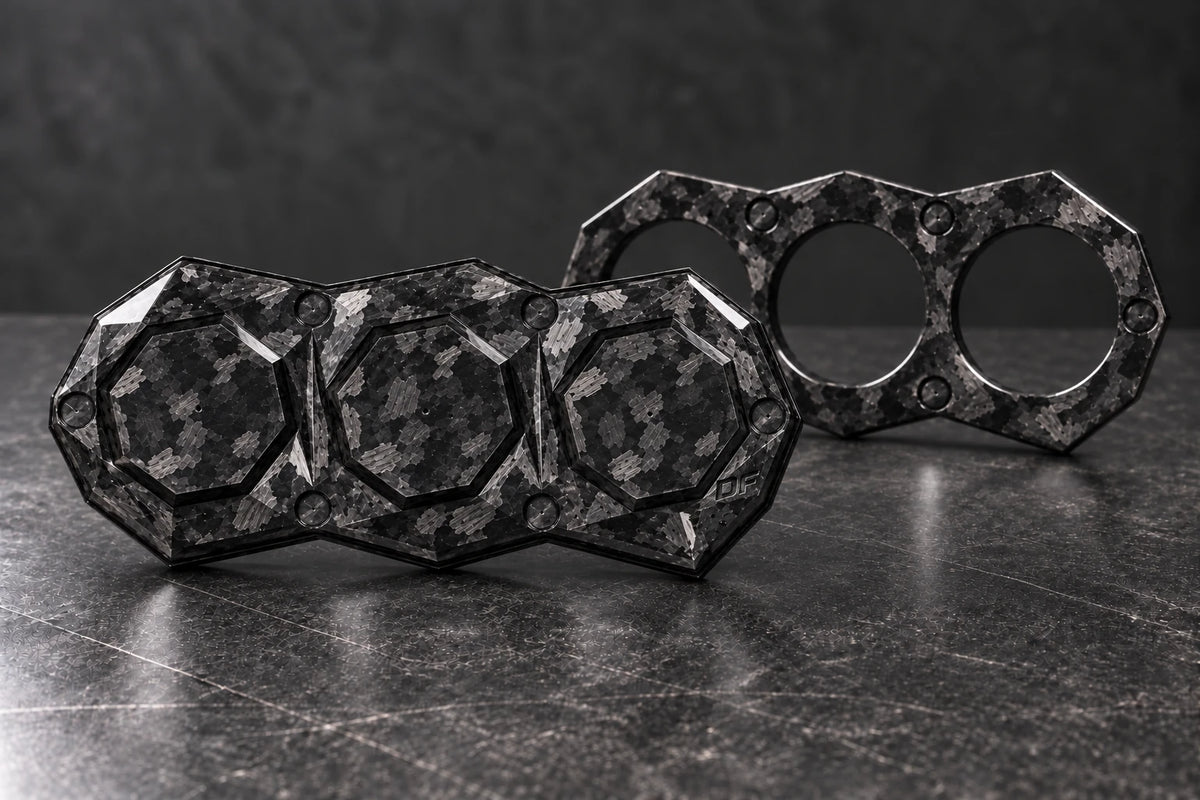

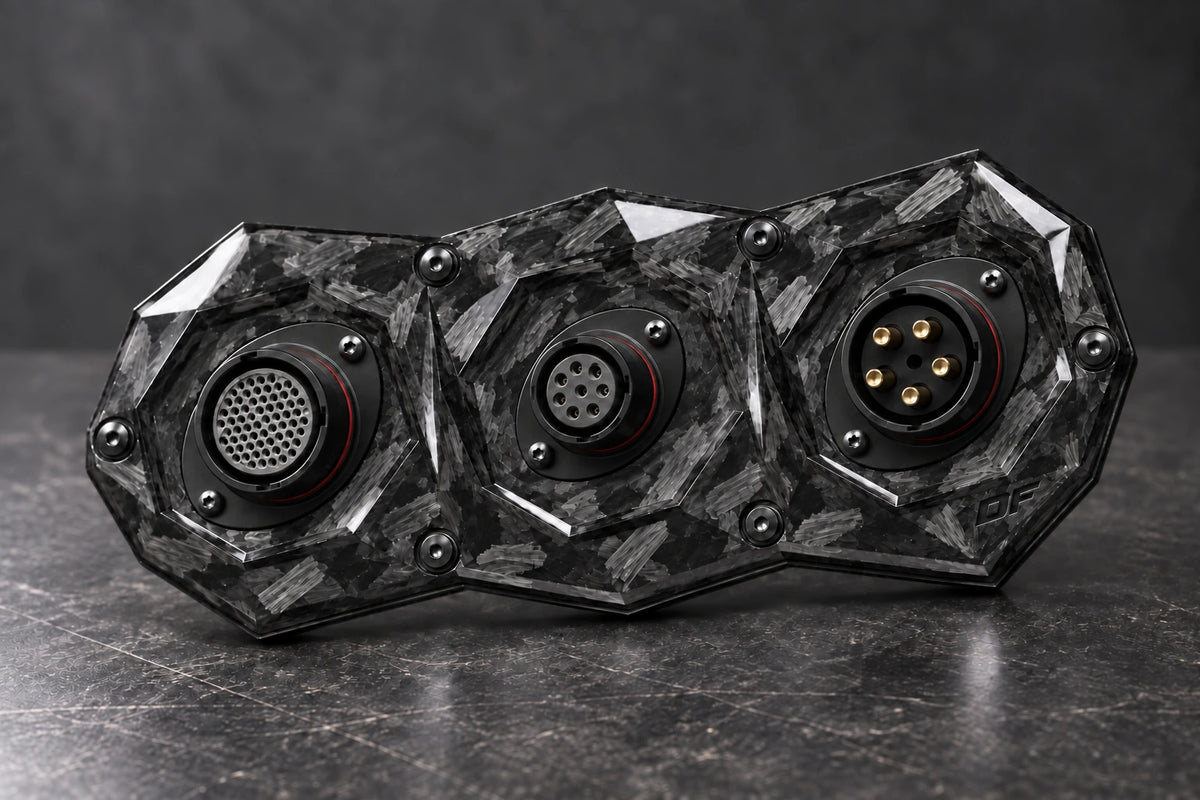

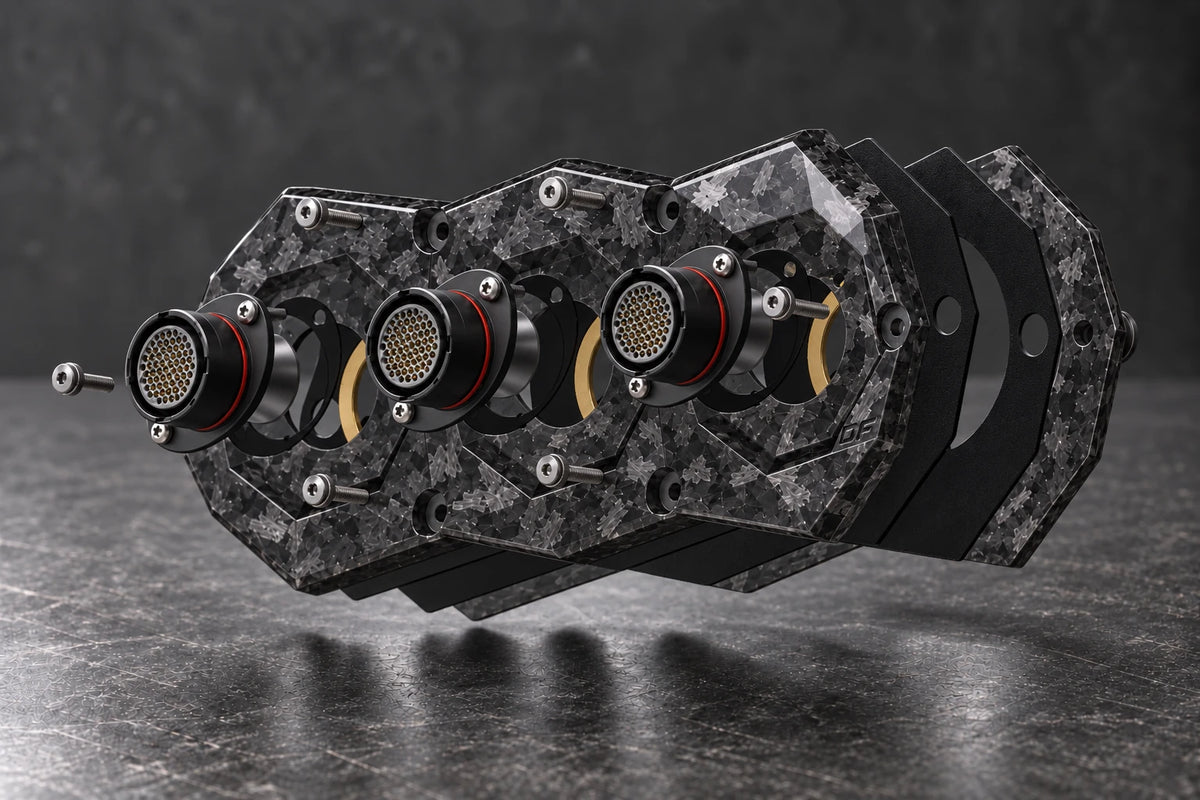

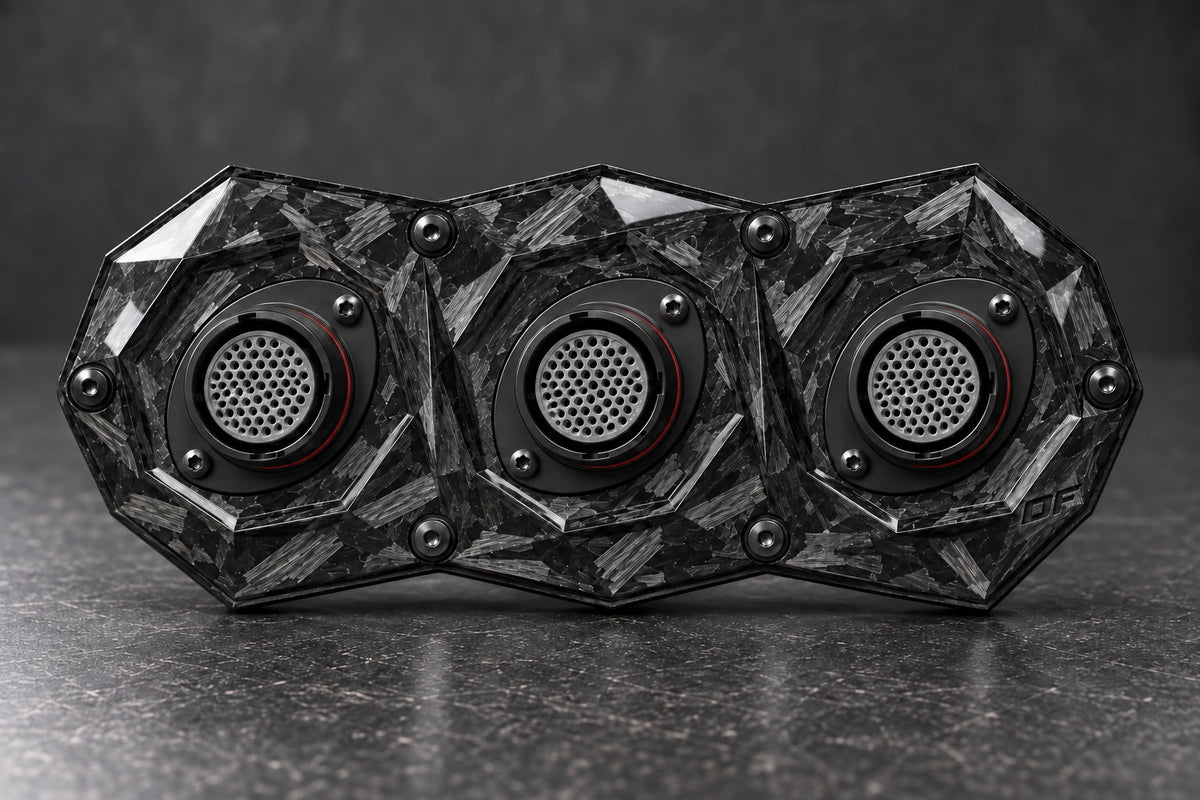

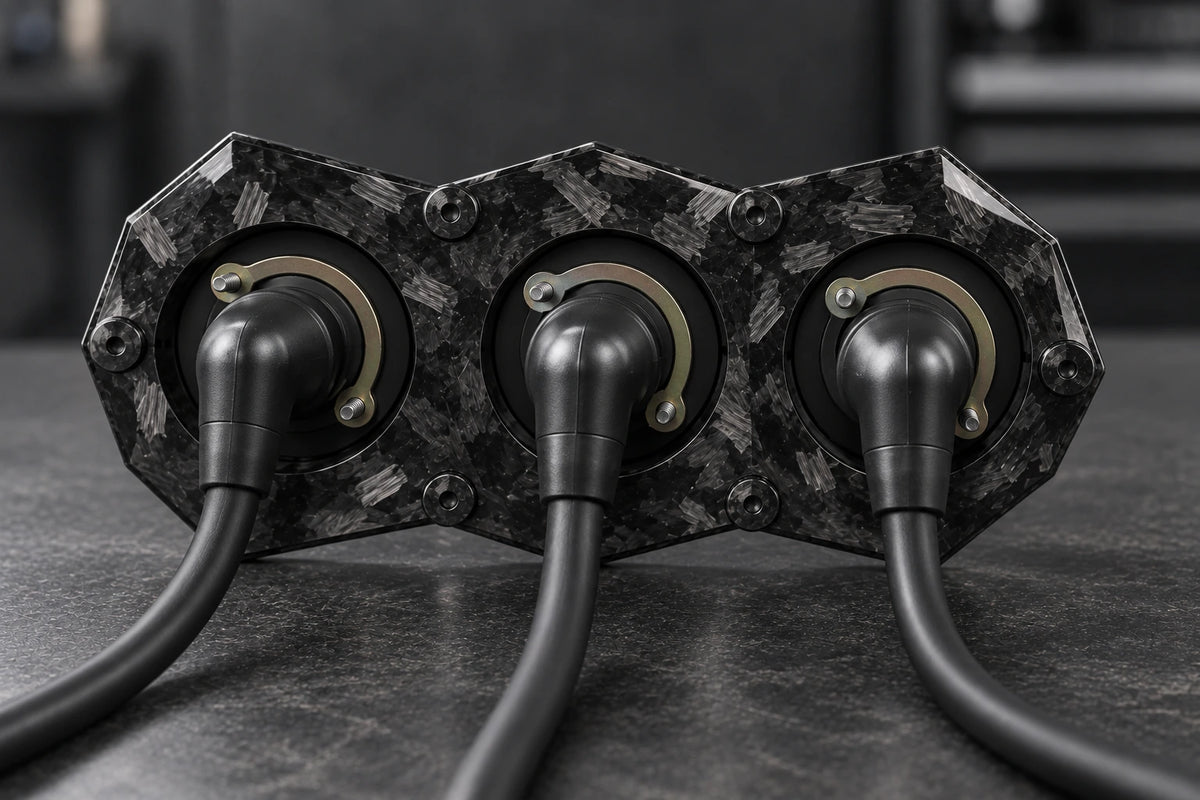

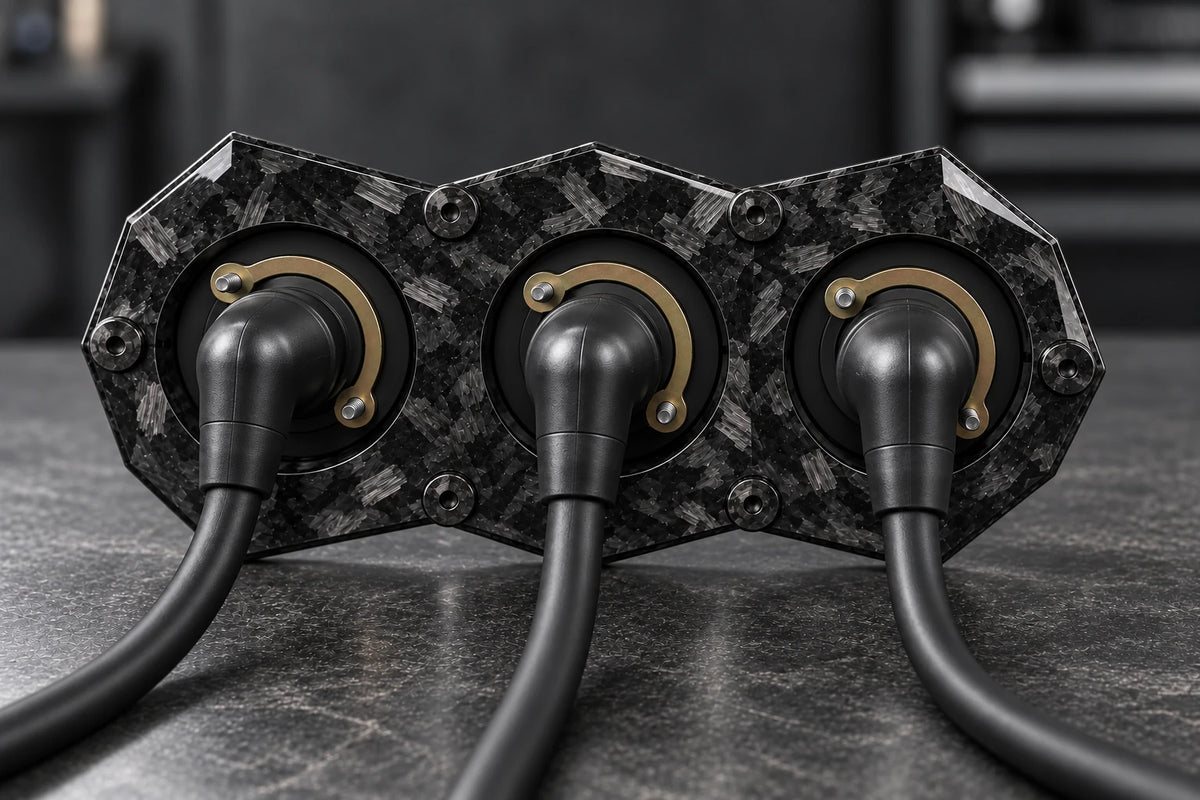

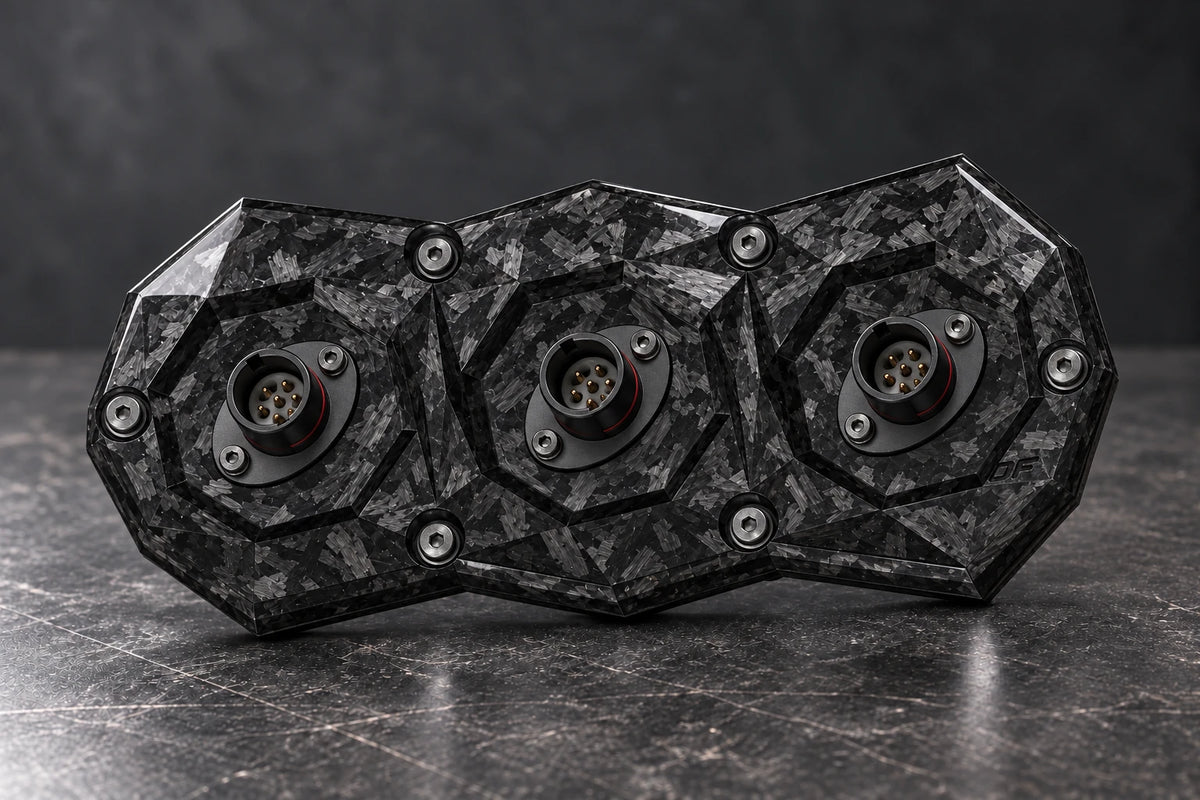

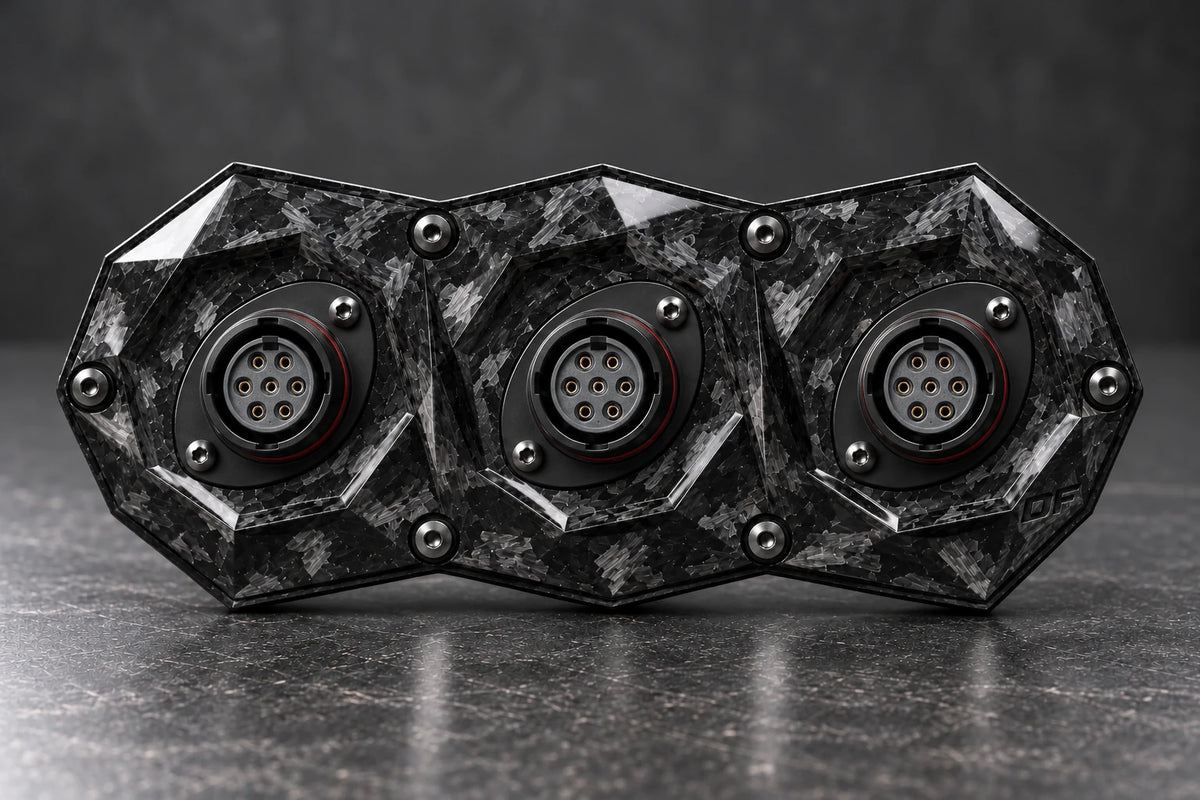

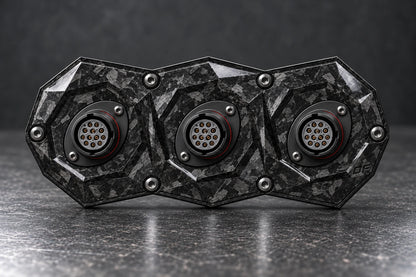

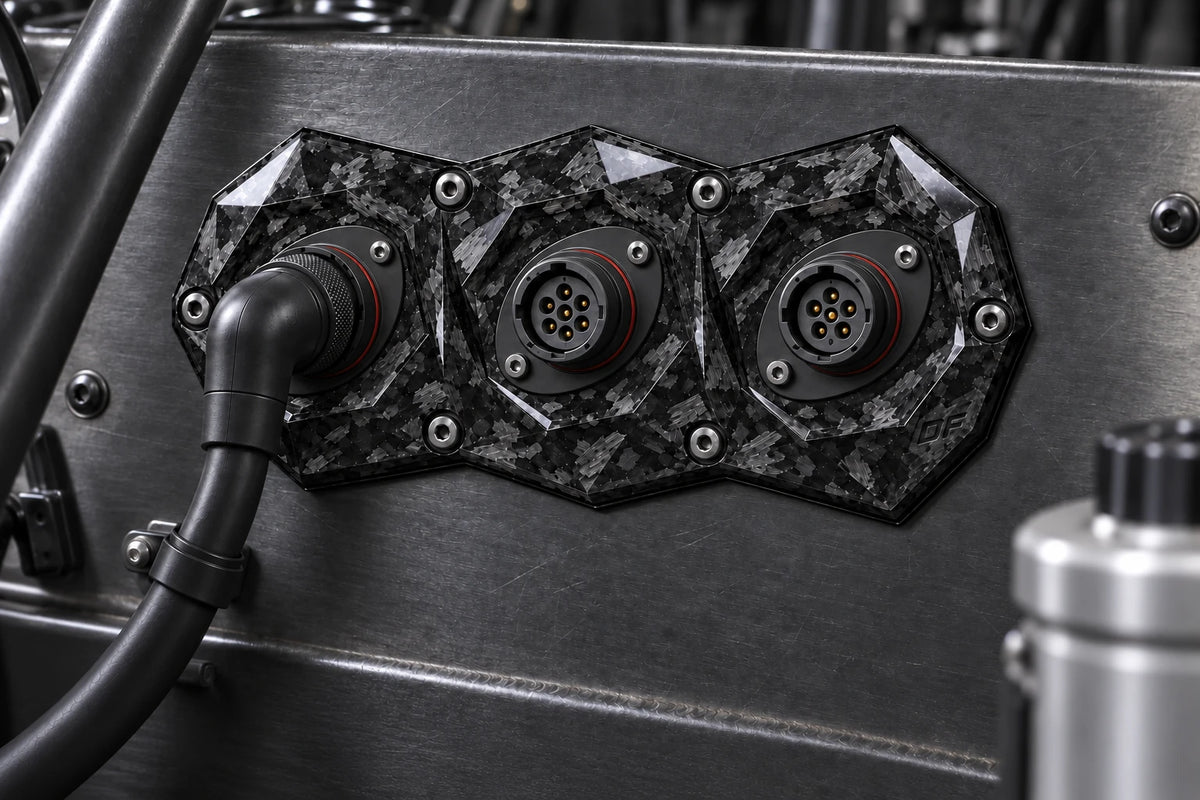

Product images are visualisations of example installations. Refer to the size-labelled CAD guides for dimensions and the blank-kit images for the supplied format. Connectors and wiring shown are illustrative and not included. The random chopped-carbon pattern varies between parts.
